Rollei T2S Rock Solid Mark III Small Professional Ball Head

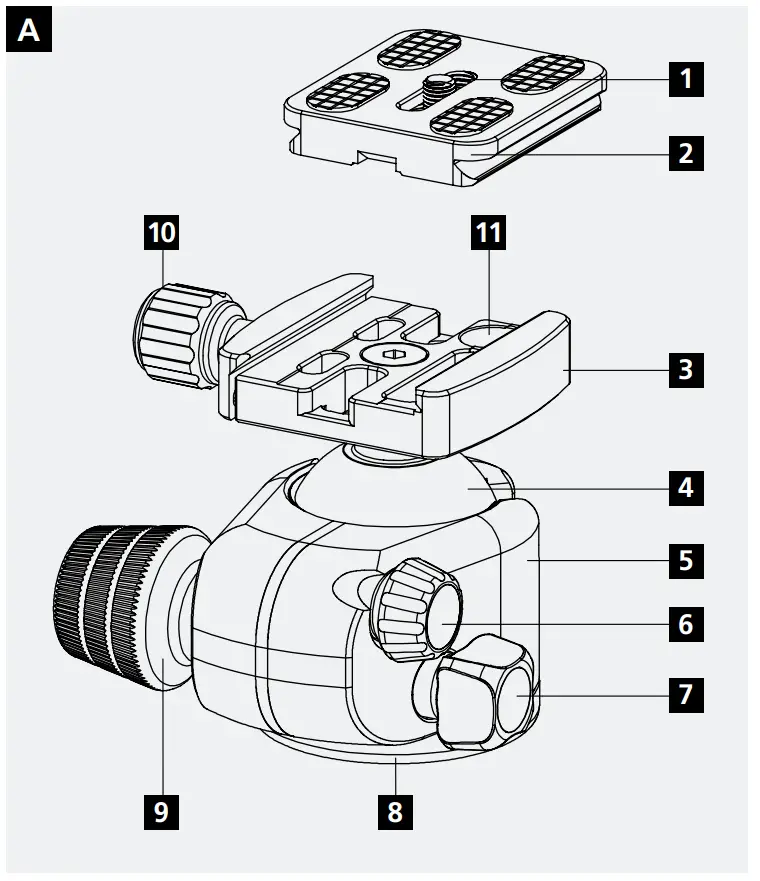

Ball Head Parts (Fig. A)
- 1/4 inch screw
- Quick Release Plate
- Bubble Level
- Ball
- Body
- Fine adjustmen
- Swivel lock
- Panorama axis
- Main fixation
- Locking of the quick release plate
- Spirit level
- 360° base plate (T8S only)

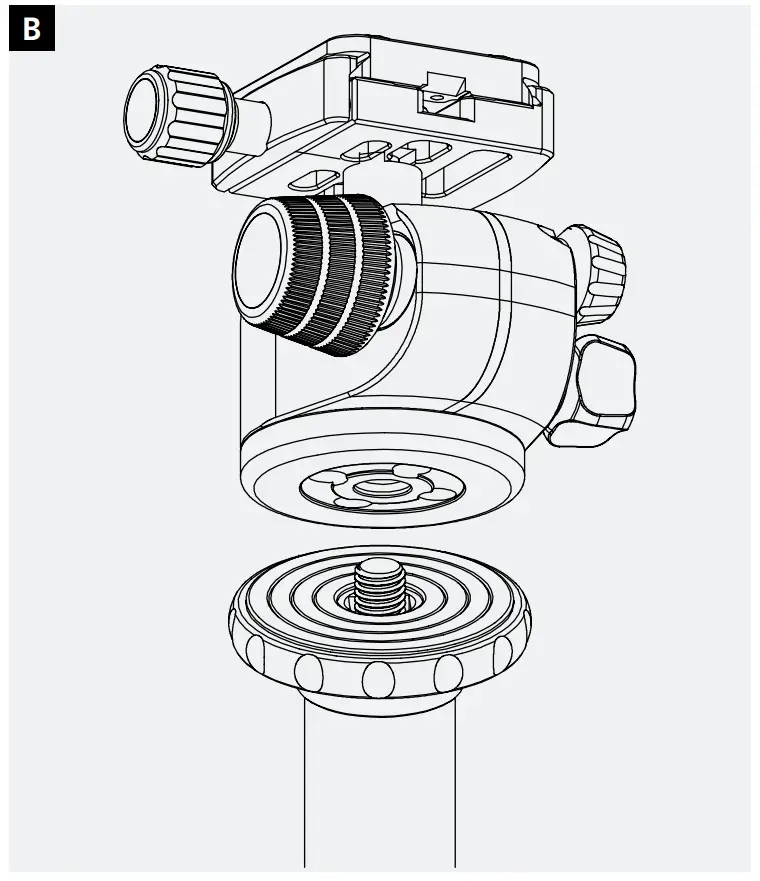

Mounting on a tripod (Fig. B)
- Make sure that the panning base is locked by tightening the panning knob.
- Screw the ball head onto the tripod and use the 3/8″ screw thread on the bottom of the head. Please note if the tripod has a 1/4″ screw you need to use an adapter (not included).
- Afterwards, please use the small screw on the tripod plate to fix the ball head firmly so it cannot fall off accidently.

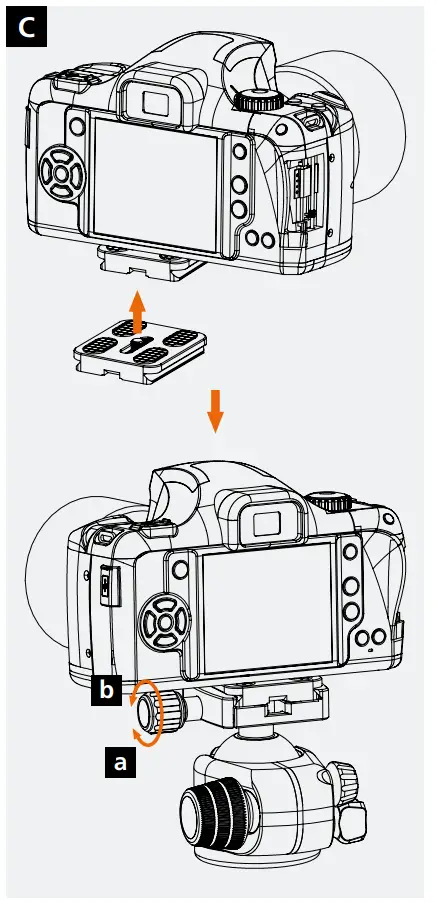

Camera attachment (Fig. C)
- Attach the quick release plate under your camera.
- Open the clamp lock by turning anticlockwise.
- Insert the quick release plate by first putting one side into the groove and then press the other side down.
- If the plate is correctly positioned then tighten the clamp lock again.

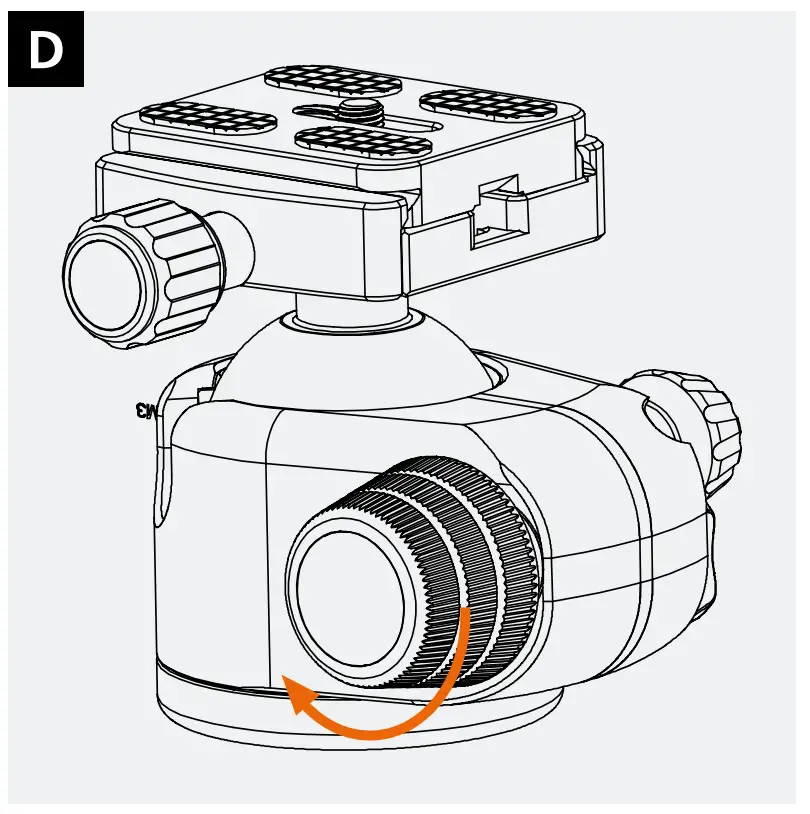

Main fixation (Fig. D)
After setting the desired angle, tighten the main fixation clockwise.

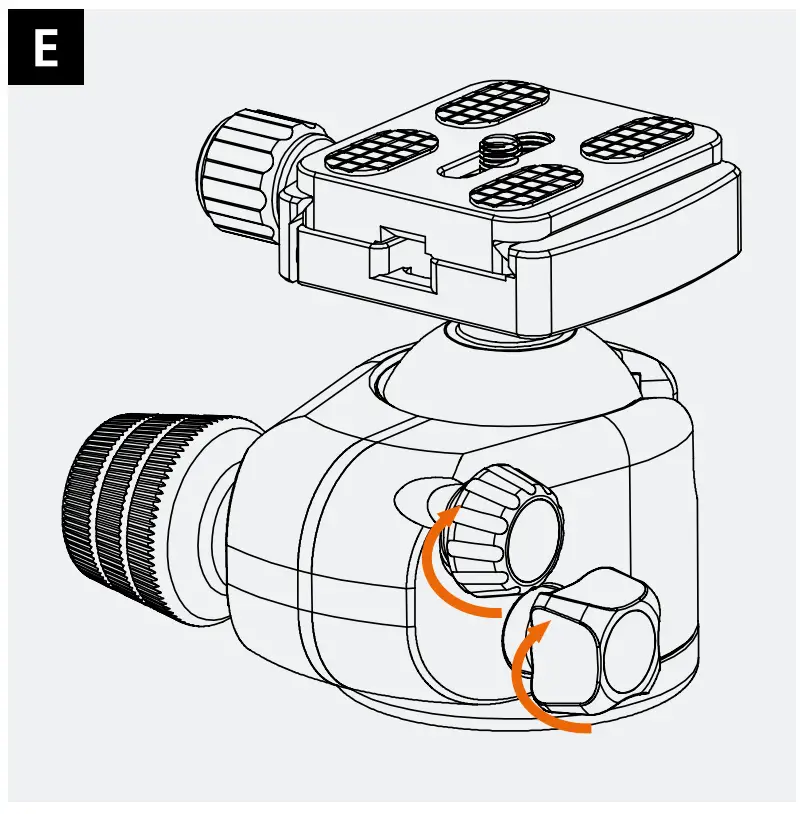

Fine adjustment (Fig. E)
- Turn the fine adjustment clockwise. The ball head is fixed but can still be fine-tuned.
- To lock the ball head completely, tighten both screws.

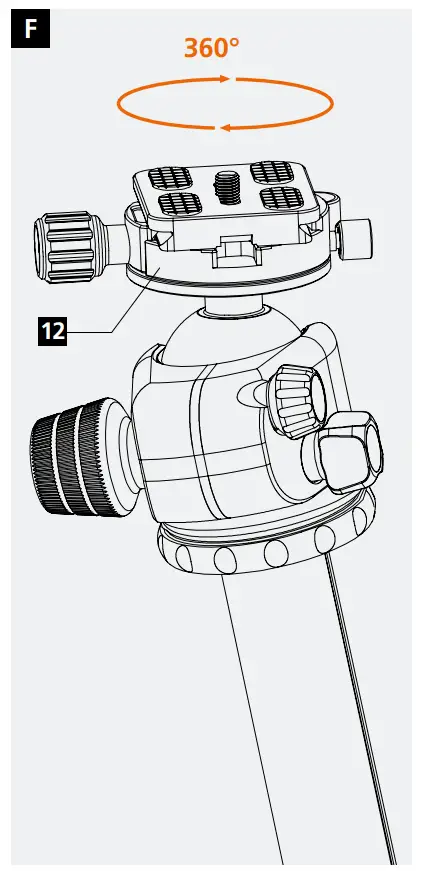

Swivel lock (Fig. F)*
- Loosen the lock and turn the knob counterclockwise or clockwise to the desired position.
- Fix the position by turning the screw clockwise.
*T8S only
Technical data
| Ball head | T2S MK III | T3S MK III | T5S MK III | T7S MK III | T8S MK III |
| Material | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium |
| Height | 6.8 cm | 7.7 cm | 8 cm | 9.5 cm | 8.6 cm |
| Base diameter | 4 cm | 4.6 cm | 5.3 cm | 6.9 cm | 5.3 cm |
| Weight | 256 g | 332 g | 407 g | 590 g | 435 g |
| Max. Load capacity | 14 kg | 18 kg | 22 kg | 26 kg | 22 kg |
| Connection | 3/8“ | 3/8“ | 3/8“ | 3/8“ | 3/8“ |
| Panorama axis | – | – | – | – | 360° |
| Quick release plate | |||||
| Dimensions | 4.2 x 3.5 cm | 4.4 x 4.4 cm | 5 x 4.4 cm | 5 x 4.4 cm | 5 x 4.4 cm |
| Weight | 22 g | 30 g | 32 g | 32 g | 32 g |
| Packaging details | |||||
| Box content | 1x T2S MK III ball head, 1x manual | 1x T3S MK III ball head, 1x manual | 1x T5S MK III ball head, 1x manual | 1x T7S MK III ball head, 1x manual | 1x T8S MK III ball head, 1x manual |
| Packaging dimensions | 14 x 9.5 x 7.5 cm | 14 x 9.5 x 7.5 cm | 14 x 9.5 x 7.5 cm | 14 x 9.5 x 7.5 cm | 14 x 9.5 x 7.5 cm |
| Packaging weigt | 0.31 kg | 0.39 kg | 0.465 kg | 0.655 kg | 0.49 kg |
Design and technical data are subject to change without notice.
Rollei GmbH & Co. KG
In de Tarpen 42
D-22848 Norderstedt
Service Hotline
+49 40 270750277
Item No:
T2S Mark III: 22969
T3S Mark III: 22970
T5S Mark III: 22971
T7S Mark III: 22972
