Rock Solid Alpha XL Mark III
Carbon Tripod
User Guide for German
Rock Solid Alpha XL Mark III
Carbon Tripod
USER GUIDE
Before the First Use
Before using the product for the first time, read the operating instructions and the safety instructions carefully.
Keep the operating instructions together with the product for later use. If other people use this product, please make these instructions available to them. If you pass the product on to third parties, these instructions belong to the product and must be supplied with it.

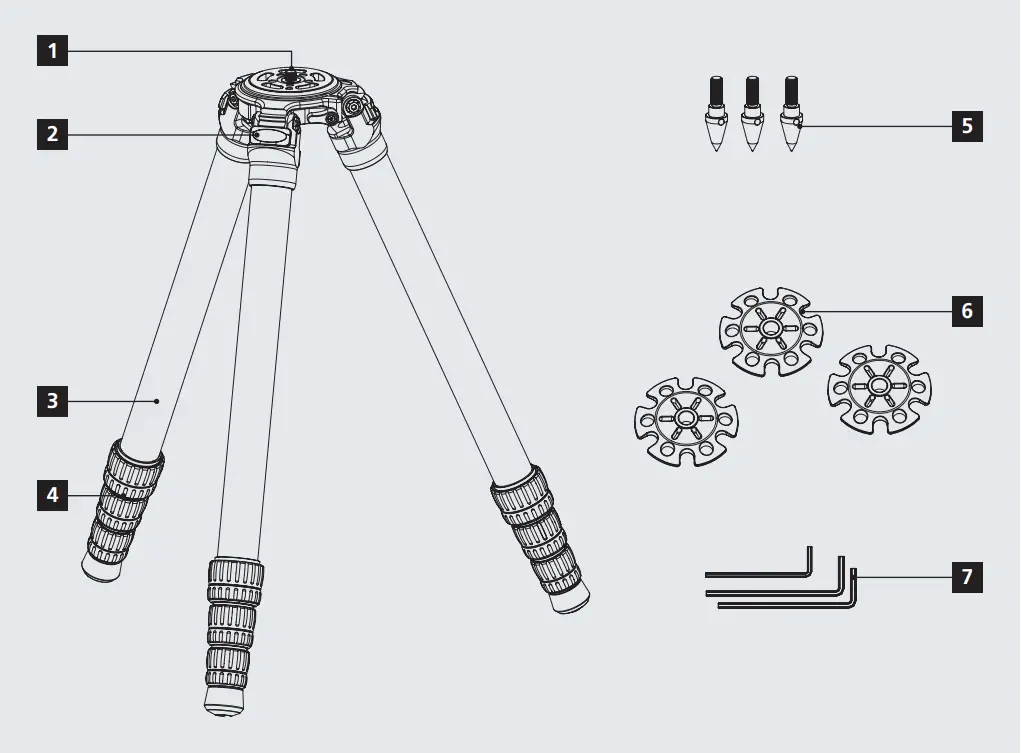

Components of the tripod
- Leveling base with 3/8″ connection
- Angle-adjusting Button
- Leg
- Leg lock
- Spikes
- Pin foot sole
- Hex wrench 3 mm, 2 x hex wrench 4 mm
Technical data
| Tripod | |
| Material | Carbon |
| Min. height | 13 cm |
| Max. Height | 193 cm |
| Max. Working height | 193 cm |
| Pack size | 66.5 cm |
| Weight | 3.17 kg |
| Max. Payload | 40 kg |
| Sections | 4 |
| Tripod leg diameter | 2.8 / 3.2 / 3.6 / 4.0 cm |
| Packaging details | |
| Box content | 1x Rock Solid Alpha XL, 3x spikes, 3x tripod leg plates, 3x Allen keys (1x 3 mm, 2x 4 mm) 1x manual |
Design and technical data are subject to change without notice.
User Manual

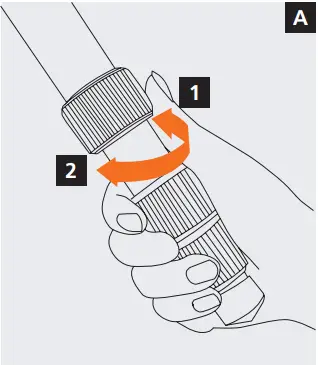

A Quick locking/releasing legs system
1. Releasing leg lock (4) clockwise within half round to extend or shorten tripod legs. [1]
2. Locking leg lock (4) anticlockwise tightly after extending, shorten or folding legs. [2]

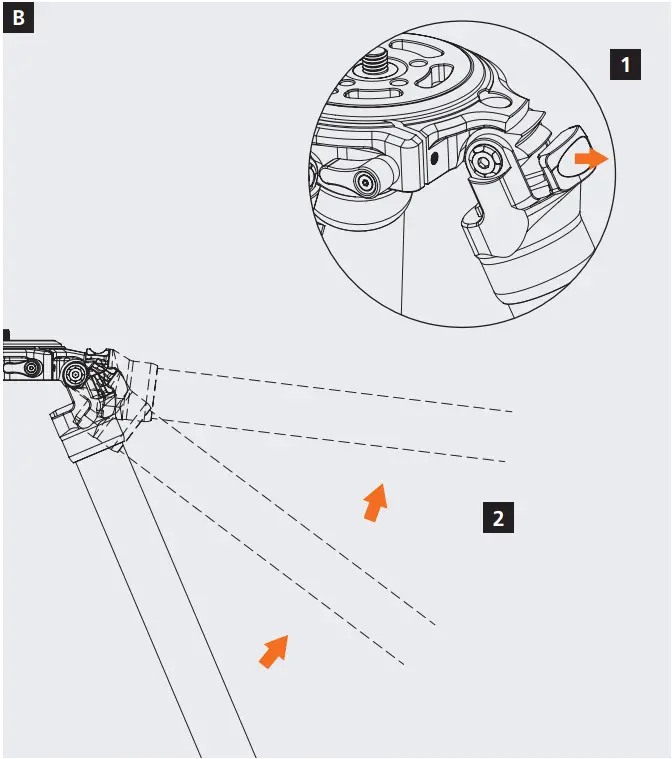

B Adjust legs angle
1. Pull out angle adjusting button, lift legs to needed level. [1]
2. Tripod allows three different angles for different purposes. Press down angle adjusting button to fix the level. [2]
C Leveling base with 3/8“ connection
D Screw on mounting plate
1. Tighten screw at bottom of the mounting plate with the hex screw driver to fix a ball head.

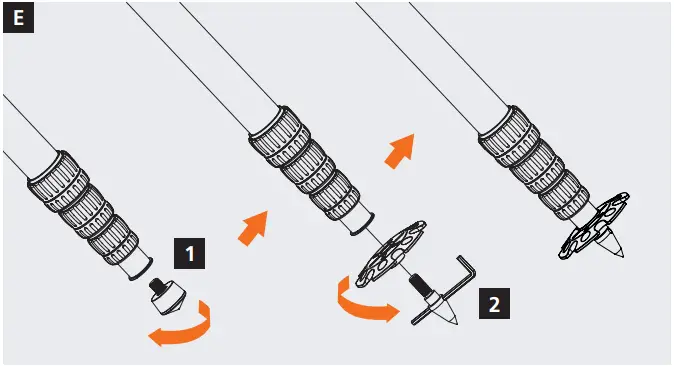

E Change rubber foot to spikes
1. Turn the rubber feet clockwise to loosen. [1]
2. Screw the spikes to the tripod leg plates using the Allen key. [2]
Announcements General information:
- Temperature range: -40 °C to +100 °C
- The tripod can be use in sea water
- If necessary, use the soft towel with moderate detergent to clean the locking system and the gliding parts.
- If necessary, please use regular lubricants or wax oil.
Rollei GmbH & Co. KG
In de Tarpen 42
D-22848 Norderstedt
Service Hotline
+49 40 270750277
Item No.: 22965
