Silent Angel Expander E1 Ultra High Capacity External Hdd User Guide

Quick Start Guide
Silent Angel

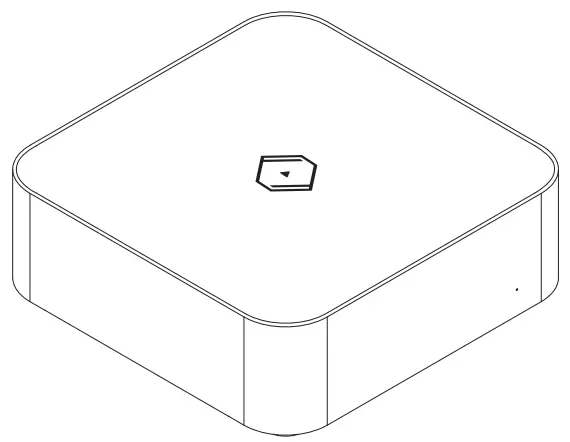

Expander E1

Package Contents

• E1 x1
• Power Cord x1
• Power Adaptor x1
• USB Cable x1 ( one end is USB3.0 Type-B, another is USB3.0 Type-A )
• User Manual x1
• Warranty Card x1

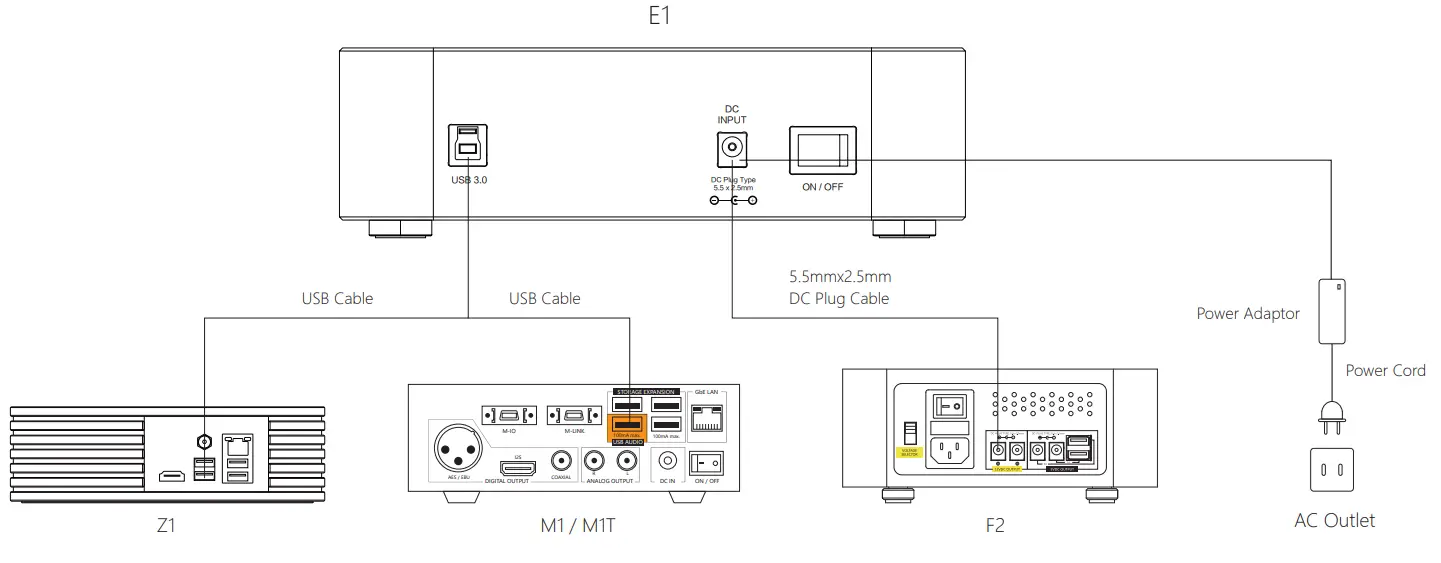

Connection Diagram

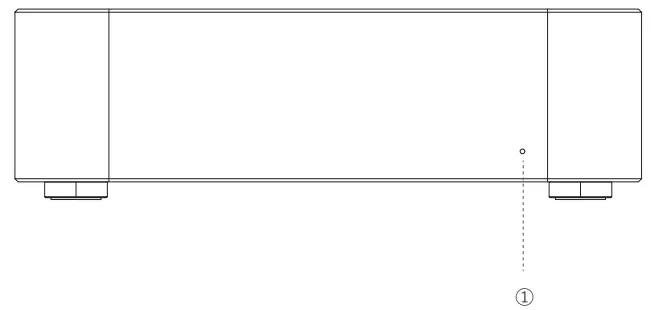

Front Panel

1. Power Status Indicator
   When power is on and in good condition, it shows Blue Light.
   When functioning as storage to read or write, it shows Two-color Light( Blue static; Red flashes )
   When no power signal, it shows no light

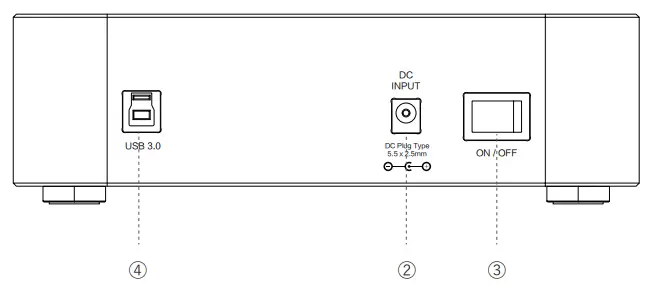

   Rear Panel

2. DC Input
   DC 12V power input ( can connect to 12VDC power adaptor, Silent Angel F2, or other 12VDC linear power supply )
3. Power Switch
   Control power on/off
4. USB Port
   USB3.0 Type-B female connector ( can connect to Silent Angel Z1, music server, Silent Angel M1/M1T, or music streamer )
