KENNETH DAHL DIXIE ROCKING CHAIR
User Guide
MBKENDDRCGA, MBKENDDRCMA

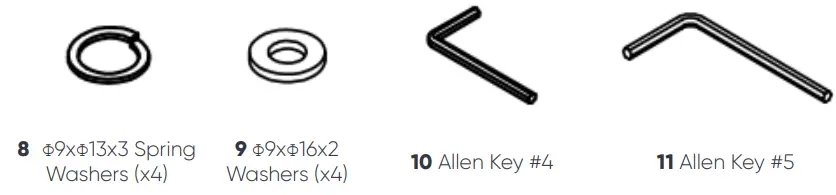

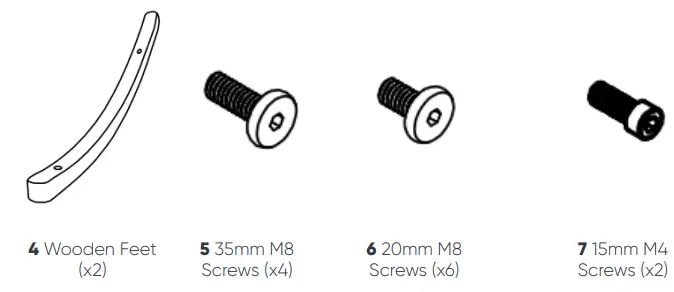

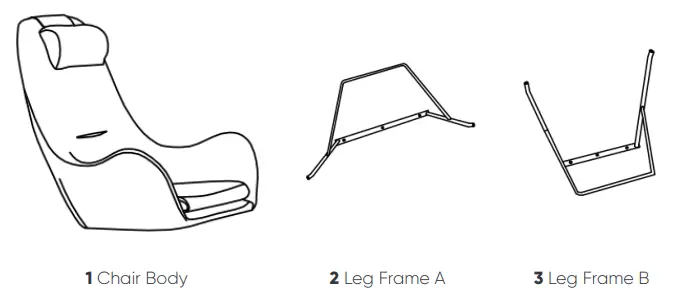

COMPONENTS
 |
 |
 |
ASSEMBLY
Step 1

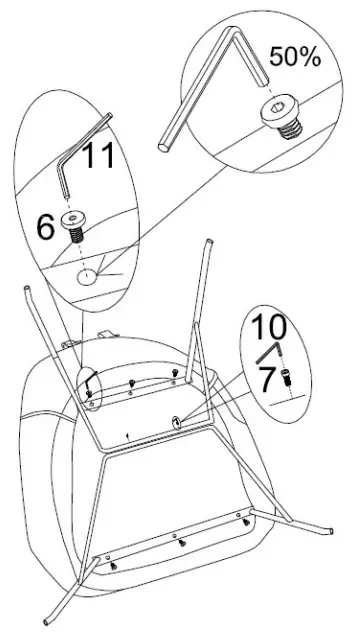

Using the #5 Allen key [11], attach the Leg Frames [2, 3] to the Chair Body [1] with the 20mm screws [6].
Then, using the #4 Allen key [10], connect the Leg Frames [2, 3] together with the 15mm screws [7].
Do not overtighten. Tighten to 50%, and retighten once all of the assemblies is complete.
Step 2

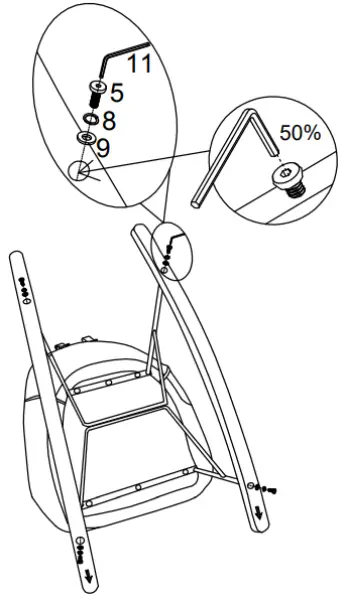

Using the #5 Allen key [11], connect the wooden feet [4] to the leg assembly with the 35mm screws [5], ensuring the washers [9] and spring washers [8] are in place as shown in the below illustration.
Do not overtighten.
Step 3

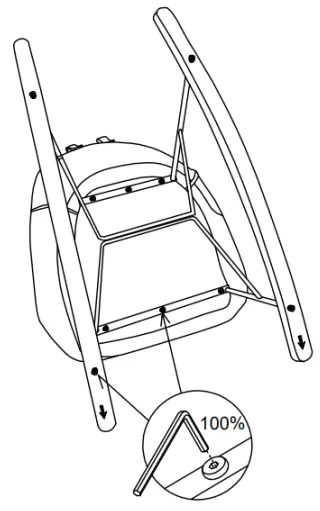

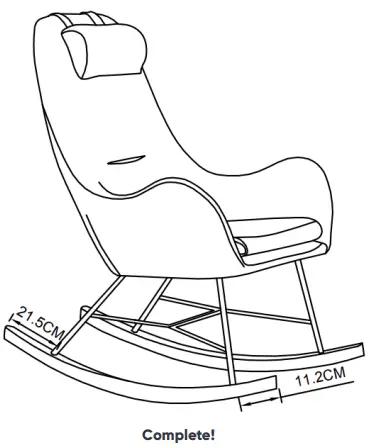

Return to all of the screws and tighten to 100%.
NEED MORE INFORMATION?
We hope that this user guide has given you the assistance needed for a simple setup.
For the most up-to-date guide for your product, as well as any additional assistance you may require,
head online to help.mattblatt.com.au
