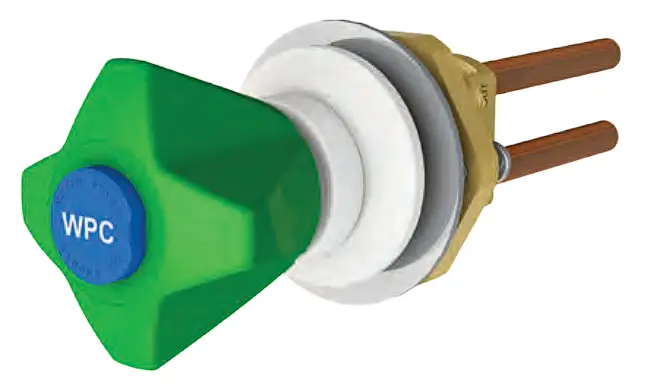

WaterSaver BT series Fume Cupboard Valves
Product Description
Application: Panel mounted valve for water. Valve has 10mm OD brazed copper tubes on inlet and outlet.
Mounting: Valve is installed on front face of cupboard and secured from behind panel with locknut and set screws.
Provide a 36mm (1-7/16″) diameter hole. Maximum panel thickness is 25mm (1”). All working components of valve are accessible from front exterior face of cupboard.
Valve Body: 35mm (1-3/8”) diameter brass bar stock.
Headwork:
BT750W has WaterSaver compression valve construction with replaceable stainless steel seat.
BT750WC has self-contained replaceable ceramic disc cartridge.
Handle: Molded nylon hooded style handle with index disc.
Handle and index are color coded and marked per EN 13792.

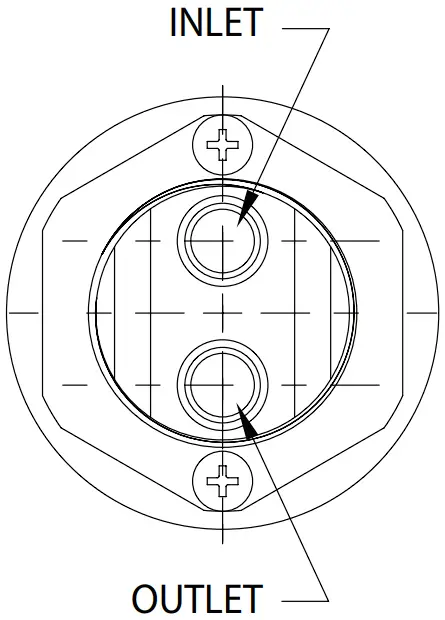

Inlet/Outlet: 10mm copper tubes.
Quality Assurance: Valve is fully assembled and factory tested prior to shipment. 10 bar (150 PSI) test pressure and maximum working pressure.

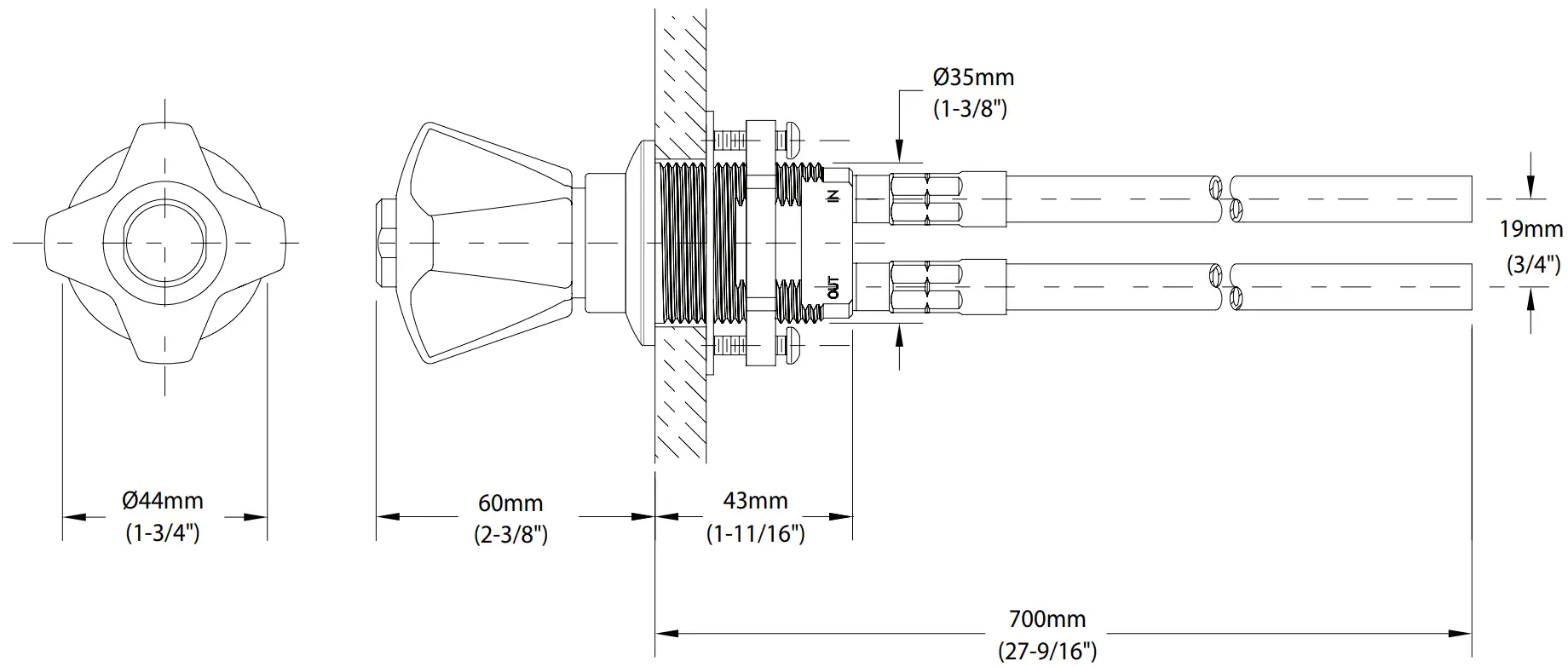

Product Dimensions
Ordering Information
| Valve Construction |
| Compression valve with replaceable stainless steel seat Ceramic disc cartridge |
| Inlet/Outlet 10mm OD Tube | |
 | BT750W-M10T |
| BT750WC-M10T |
| Product Finish | |
| Gloss white powder coated finish |
| Gloss light gray powder coated finish |
| Gloss dark gray powder coated finish |
| Starburst metallic powder coated finish |
| Polished chrome plated finish with clear epoxy coating |
| Satin chrome plated finish with clear epoxy coating |
| Satin nickel plated finish with clear epoxy coating |
| Media | |
