nVent P2BP165 Plinth Base ProLine G2

Product Information

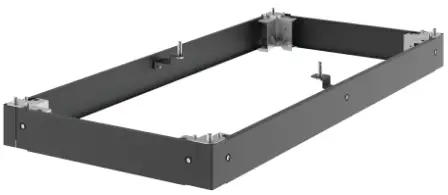

The ProLine G2 Plinth Bases are external components designed to be installed under an enclosure. They provide space for cables to enter from below.

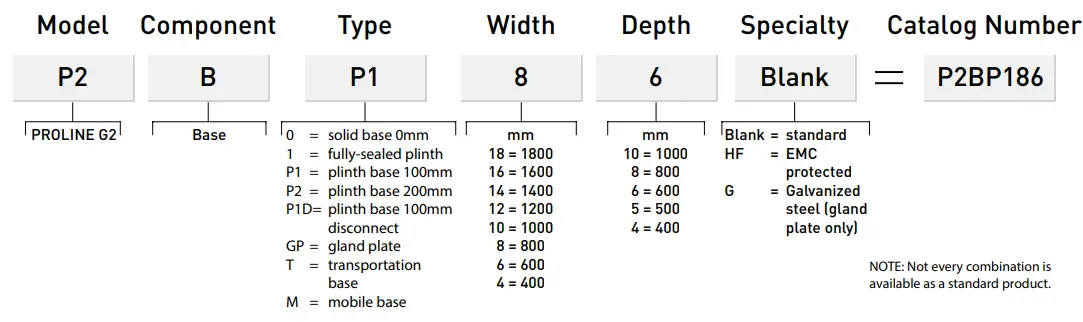

Specifications

Catalog Number	Width (mm)	Width (in.)	Depth (mm)	Depth (in.)	Fits Frame Width x Depth mm
P2BP145	399	15.71	464	18.27	400 x 500

Product Usage Instructions

To use the ProLine G2 Plinth Bases, follow these steps:

Choose the appropriate plinth base size based on the width and
depth of your enclosure.
Ensure that the plinth base fits the frame width and depth specified in the specifications table.
Install the plinth base under the enclosure, aligning it properly.
Make sure there is enough space for cables to enter from below.
Securely fasten the plinth base to the enclosure using suitable hardware.
Verify that the plinth base is properly installed and provides the desired space for cable entry.

If you have any questions or encounter any issues during installation, refer to the user manual or contact customer support for assistance.

APPLICatION
ProLine G2 Plinth Bases install under an enclosure to provide space for cables to enter from below.

Features

Four access panels for cable management options at the base of the enclosure
Sturdy cast aluminum corner supports for superior performance under load
Corner blocks can be installed onto the base of the frame independent of the cover plates, enabling the cover plates to be attached after integration and just prior to shipment.

SPECIFICATIONS

Stackable up to 400mm in height using Plinth Base Stacking Kit (not included)
100 mm or 200 mm options
To maintain a NEMA Type 12 environmental rating, gland plate must also be used in the base of the enclosure
Installation hardware included
Cover plates are 16-gauge (1.5 mm) steel

Finish

Polyester powder paint; RAL 9005 textured black standard
Custom colors available

ACCESSORIES

Gland Plate
Plinth Base Stacking Kit

Bulletin: P40

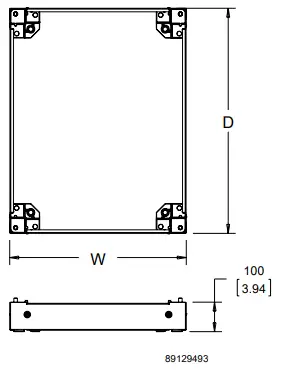

Catalog Number	W (mm)	W (in.)	D (mm)	D (in.)	Fits Frame Width x Depth mm
P2BP145	399	15.71	464	18.27	400 x 500
P2BP146	399	15.71	564	22.21	400 x 600
P2BP164	599	23.58	364	14.33	600 x 400
P2BP165	599	23.58	464	18.27	600 x 500
P2BP166	599	23.58	564	22.21	600 x 600
P2BP168	599	23.58	764	30.08	600 x 800
P2BP184	799	31.46	364	14.33	800 x 400
P2BP185	799	31.46	464	18.27	800 x 500
P2BP186	799	31.46	564	22.21	800 x 600
P2BP188	799	31.46	764	30.08	800 x 800
P2BP1810	799	31.46	964	37.95	800 x 1000
P2BP1104	999	39.33	364	14.33	1000 x 400
P2BP1105	999	39.33	464	18.27	1000 x 500
P2BP1106	999	39.33	564	22.21	1000 x 600
P2BP1108	999	39.33	764	30.08	1000 x 800

Standard Product 100 mm, For Frame Width 1200 mm and Greater

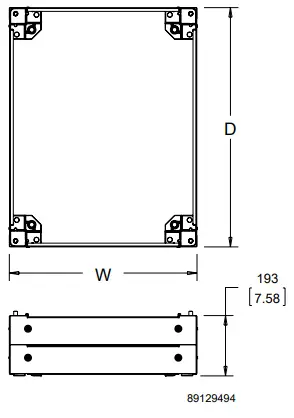

Standard Product 200 mm, For Frame Width Less Than 1200 mm

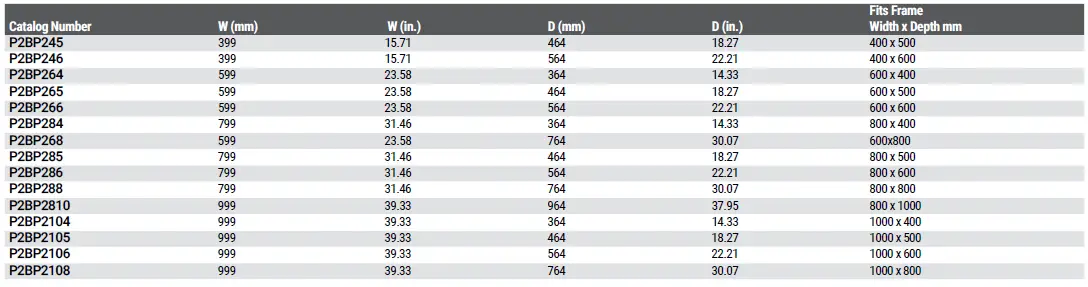

Catalog Number	W (mm)	W (in.)	D (mm)	D (in.)	Fits Frame Width x Depth mm
P2BP245	399	15.71	464	18.27	400 x 500
P2BP246	399	15.71	564	22.21	400 x 600
P2BP264	599	23.58	364	14.33	600 x 400
P2BP265	599	23.58	464	18.27	600 x 500
P2BP266	599	23.58	564	22.21	600 x 600
P2BP284	799	31.46	364	14.33	800 x 400
P2BP268	599	23.58	764	30.07	600×800
P2BP285	799	31.46	464	18.27	800 x 500
P2BP286	799	31.46	564	22.21	800 x 600
P2BP288	799	31.46	764	30.07	800 x 800
P2BP2810	999	39.33	964	37.95	800 x 1000
P2BP2104	999	39.33	364	14.33	1000 x 400
P2BP2105	999	39.33	464	18.27	1000 x 500
P2BP2106	999	39.33	564	22.21	1000 x 600
P2BP2108	999	39.33	764	30.07	1000 x 800

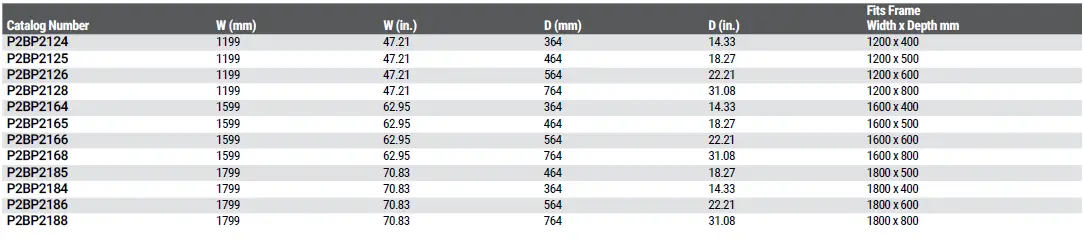

Standard Product 200 mm, For Frame Width 1200 mm and Greater

VENtEd PLINth BasE COVERs

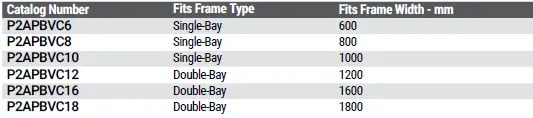

The Vented Plinth Base Covers replace the traditional solid plinth base covers that mount width-wise across the front and rear of the enclosure. Vented covers allow air to enter the enclosure from below, and are used in conjunction with the Vented Gland Plate.

PLINth BasE mOuNtING BRaCkEt kIt

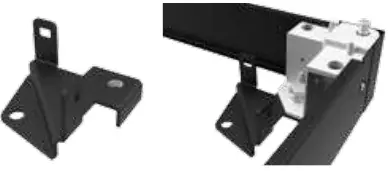

The Plinth Base Mounting Bracket Kit secures to the cast aluminum corner blocks of the standard Plinth Base. The bracket kit serves two functions: the first function is to facilitate floor mounting, and the second is to run a grid network for cable management.

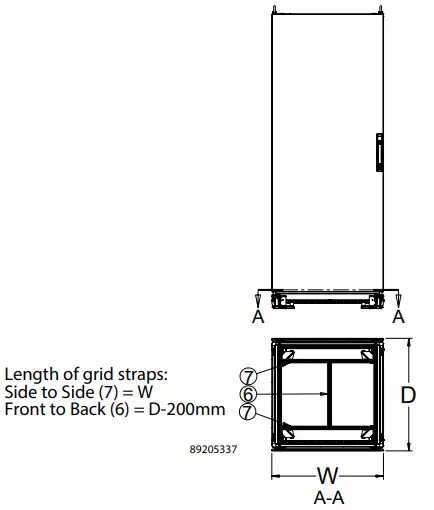

Previously, it was challenging to secure an enclosure to the floor, but with the bracket kit the mounting holes are now easily accessible from inside the cabinet after gland plate removal. Grid straps can also now be mounted to the Plinth Base Mounting Bracket Kit to secure cables entering or leaving the cabinet through the base. Grid Straps and Plinth Base are sold separately. The brackets are constructed from a 10-gauge (3.0 mm) steel, and finished in RAL 9005, matte black.

Bulletin: P40

Standard Product

Catalog Number	Description	Package Quantity
P2APBMBK	Plinth Base Mounting Bracket Kit	4

PLINTH BASE STACKING KIT

These covers are RAL 9005 black, polyester powder paint, and include all necessary mounting hardware.
Please note that a standard 100mm Solid Plinth Base must be ordered separately, as Vented Plinth Base Covers are replacements for the front and rear covers only. Vented Gland Plate also sold separately, but required for successful air passage.

Bulletin: P40

Standard Product

The Plinth Base Stacking Kit is used to stack plinth bases up to 400 mm high. Kit consists of eight bolts and nuts and eight each of two types of washers.
