Wyze A53934 Cam V3 Security Camera User Guide

QUICKSTART GUIDE

IN THE BOX

Wyze Cam 　× 1
Indoor Power Adapter 　× 1
Mounting Tape 　　 × 1
Mounting Screw 　 　× 1
Quick Start Guide 　 × 1
USB Cable　 × 1
Wall Plate × 1

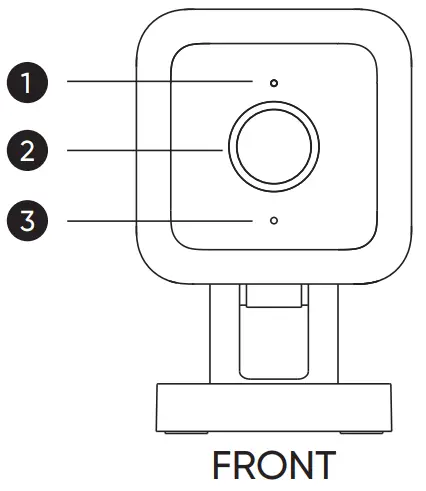

1. Status Light
2. Lens
3. Microphone

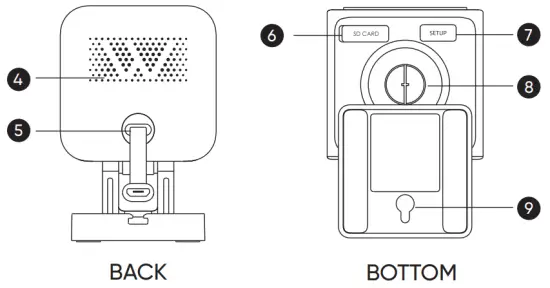

4. Speaker
5. Power Cable
6. MicroSD Card Slot (Card not included)
7. SETUP Button
8. 1/4″ Mount(Unscrew to access)
9. Mounting Hole

SETUP

1.  Download the Wyze app and sign in or create an account.
2. Connect the camera to a power outlet and wait for 20 seconds or until the status light flashes red.

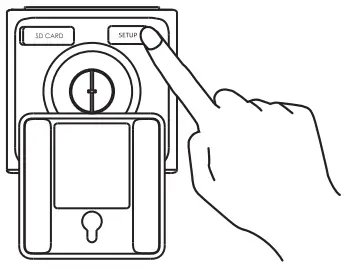

3. Press the SETUP button for 3 seconds or until there is a voice prompt.
4. Follow the instructions in the Wyze app to finish the setup.

LIGHT INDICATIONS

	Solid red light The device is powered on and initializing
	Flashing red light The device is ready to connect
	Flashing red & blue lights Connection is in progress
	Flashing blue light The device is connected and finishing setup
	Solid blue light The device is working properly

FCC WARNING:

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

FCC RADIATION EXPOSURE STATEMENT:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

ISEDC RSS WARNING:

This device complies with ISEDC licence-exempt RSS standard (s). Operation is subject to the following two conditions:

1. this device may not cause interference, and
2. this device must accept any interference, including interference that may cause undesired operation of the device.

ISEDC RADIATION EXPOSURE STATEMENT:

This equipment complies with ISEDC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20cm between the radiator & your body.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NEED HELP?
Contact our support team: https://support.wyze.com
Join our Community: https://wyze.com/communityhttps://support.wyzecam.com/hc/en-us
