INSTRUCTION MANUAL
LUMERI X320
Note: As the product system is updated from time to time, the specific operation content is based on the actual situation.
This product is only suitable for projections of images 8 videos. and may not be used for room lighting.
Important Safeguards
- Please read the manual carefully before operating the projector. To ensure a stable power supply, please use a standard power cable.
- Please use the power supply and cable indicated on the rating label. The projector should be kept away from clothes, sofas, and anything that may block the ventilation scoop. Please keep the unit away from flammable and explosive materials.
- Please do not disassemble the unit yourself as this will invalidate the warranty service. To protect your eyes, do not stare directly at the lens when the projector is on. The projector must be kept away from water and any other liquids.
- To prevent electric shock, please keep the projector out of the rain and away from moisture. It is recommended to switch off the projector after it has run for 6 hours non-stop. Please use the original foam and other cushioning materials when transporting the projector.
- If the projector does not work, please contact the authorized service agent.
Accessories List
- AV signal cable x
- Remote control x 1
- Power cable x 1
- User manual x1
Projector Overview

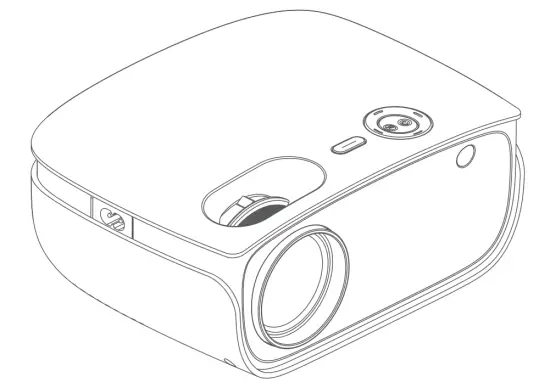

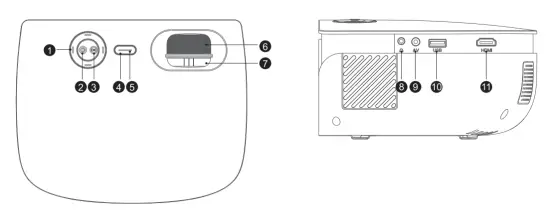

| 1. Arrow keys 2. Return key 3. OK key 4. Power Button 5. Power Indicator: Standby: red Power on blue | 6. Focus 7. Keystone 8. Headphone port for audio output 9. AV port for normal signal input 10. USB port for multimedia play 11. HDMI port for HDMI signal input |
Specification
| Model | LCD projector | Image system | LCD |
| Lamp | LED | Native resolution | 1280020, support 1080P |
| Language | English, 25 languages | Input voltage | AC 100V-240V |
| Size | 218x174x96mm | ||
| Aspect Ratio | 16c9 /43 | Working temp | 0-35°C |
| Weight | t KG | Input port | HMI/ USB/ AV |
| Operation mode | Manual / Remote control | Output port | Headphone |
Multimedia Supported Files
| Image Format | JPG/PNG/BMP/J PEG |
| Video Format | Ma4/MKV/MOWWMV/RMVB/RM/AVVELV/TRPP/OB/3GP/DIVX/TP/TS/NIPQM2TS/F4V/DAT |
| Audio Format | MPUAAC/WAV/FLAC/WMANIAA |
| File Format | TXT |
The projector does not support Dolby audio decoding.
Remote Control

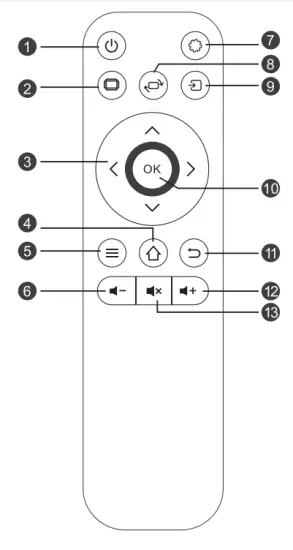

| 1. Power 2. Aspect ratio 3. Arrow keys 4. Home 5. Menu 6. Volume Down 7. Menu | 8. Screen flip 9. Source 10. Enter 11. Return 12. Volume Up 13. Mute |

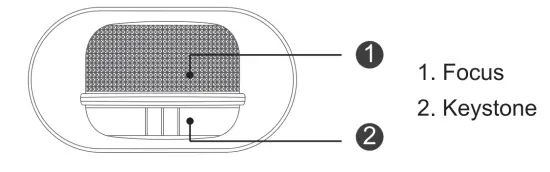

Focus / Keystone Correction
- Image focusing
Place the projector lens perpendicularly to the projection screen or curtain wall, and adjust the focus dial until the image is clear, which means the image focusing is finished. During the focusing process, you can play the programs or pick up the product menu images to match the focusing adjustment. - Keystone correction

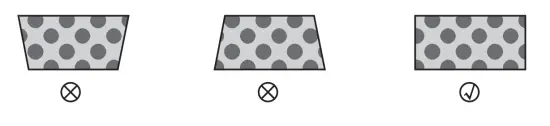

Please turn the trapezoidal adjustment dial until the image is displayed normally.
Note: The projector has only a mechanical trapezoidal correction in the vertical direction and there is no horizontal correction. Make sure the projector is level with the projected image.
How to Select Source

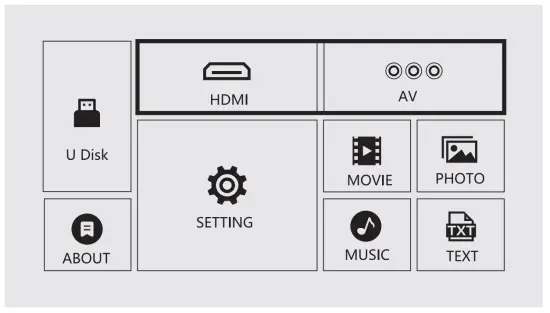

Step 1: Select the source you want in the main interface, such as HDMI and AV.
Step 2: Press OK button on the remote control to enter corresponding source interface.
Note: When the projector is in the no signal interface, please press the source button on the remote control to select the home page or other source.
How to Play Multimedia
Step 1: Connect USB to your projector.

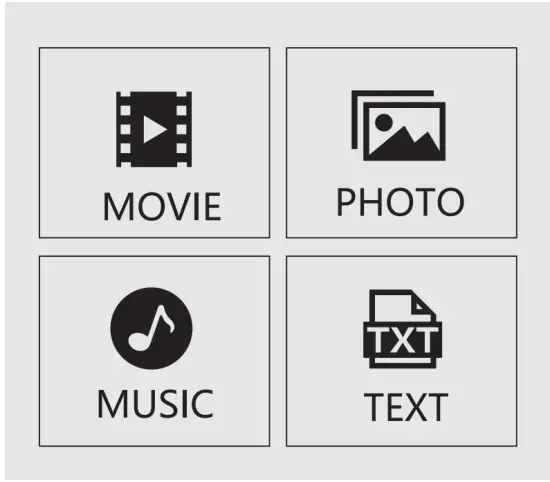

Step 2: Select the required file to play from main interface.
Note: U-disk should be inserted if require to select multimedia files.
Select Setting in the main interface, first press the left/right keys to select the sub-menu, the second set up the mode you need, finally press the OK key to confirm.
Submenu:
PICTURE: Picture Mode / Contrast / Brightness / Color / Tint / Sharpness / Focus / Color Temperature / Noise Reduction.
SOUND: Sound Mode / Treble / Bass.
OPTION: OSD Language / Aspect Ratio / Projection Mode / Factory Reset / Software Upgrade / Version.
PICTURE | Picture Mode | Standard |
| Contrast | 50 | |
| Brightness | 50 | |
| Color | 50 | |
| Tint | 50 | |
| Sharpness | 50 | |
| Focus | 0 | |
| Color Temperature | Medium | |
| Noise Reduction | Middle |
Standard Setting
Refer to the data in the table below to place the projector away from the projection screen according to the preset graphic size. When installing, place the projector on a solid, stable countertop or use a hanger o hoist it to the ceiling. The airframe should be well ventilated. Do not cover or block the vents. There should be no obstructions within 30cm of the vents.
| Aspect ratio | 16:9 |
| Picture size (inch) | Projection distance (m) |
| 50″ | 1.55 |
| 70″ | 2.17 |
| 100″ | 110 |
| 120” | 172 |
Note: The above data is for reference only, please refer to the physical measurement.
This product is only suitable for projections of images & video, and may not be used for room lighting.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logos are trademarks or registered trademarks of HDMI
Licensing Administrator, Inc. in the United States and other countries.
