TROX Type AFG Floor Grilles Within Raised Access Floors Datasheet

Floor Grilles for Installation into Raised Access Floors

The Type AFG floor grilles are heavy and extra heavy-duty floor grilles made of aluminum with fixed horizontal blades. These single ventilation grilles are suitable for raised access floor systems with a nominal size of 600 x 600 and a volume flow rate range of 0 – 530 l/s or 0 – 1908 m3/h. The grille face is made of aluminum with a powder-coat finish and a front border of 6mm with 6mm wide blades. The grilles are suitable for floor tile depths between 25mm and 50mm.

Optional Equipment and Accessories

Attachments for volume flow rate balancing are available.

Product Usage Instructions

The AFG floor grilles can replace 600mm square floor tiles with depths from 25mm up to a maximum of 50mm. The F series floor grilles can be used in commercial or industrial settings to provide mixed-flow ventilation for comfort and overall room ventilation.
When using the floor grilles, please check the floor system and confirm the stringer width to ensure proper installation. Attachments for volume flow rate balancing are available as optional equipment.

General information

Application

• Floor grille of Type AFG as supply air for comfort zones and industrial zones
• For variable and constant volume flows
• For supply air to room air temperature differences from -12 to ÷4 K
  For installation in raised access floors

Variants

• AFG-A: Floor grille for pressurized floor void
• AFG-AG: Floor grille with rear-mounted volume control damper)
  Construction features
• 6 mm wide mitred border
• 6mm wide blades for straight (0°) air discharge
  Materials and surfaces
• Border and blades made of aluminum
• P2: Border and blades powder-coated, RAL9006:30%
• P4: Border and blades powder-coated, RAL9005:20%
• N1: Border and blades powder-coated, with nylon reinforcing RAL9005
  Parts and characteristics
• 6mm wide welded mitered border sections
• Fixed horizontal blades
• Vertical lateral mullions
  Nominal sizes
• 600mm × 600mm
  Attachments
• AG: For volume flow rate balancing
  Special Characteristics
• Fixed blades
• Welded front border sections
  Installation and commissioning
• Installation preferably in raised access floor systems with a minimum depth of 25mm and a maximum depth of 50mm
  Standards and guidelines
• The sound power level of the air-regenerated noise measured according to EN ISO 5135
• Structural classification tested according to BS EN 13264:2001 (Heavy & Extra Heavy)
  Maintenance
• Maintenance-free as construction and materials are not subject to wear
• Inspection and cleaning to VDI 6022

Technical data

Basic information and nomenclature

Functional description
Type AFG Heavy / Extra Heavy duty floor grilles are air terminal devices for the supply air of ventilation and air conditioning systems.
They direct the supply air into the room from low-level floor void supply systems. The result is mixed flow ventilation in comfort zones and industrial zones, with good overall room ventilation.

Designed for use within commercial or industrial applications where prolonged foot traffic or rolling loads may be expected such as offices, atrium areas or data centres. TROX AFG series floor grilles can replace 600mm square floor tiles with depths from 25mm up to a maximum of 50mm and exceeds the requirements of BS-EN 13264:2001 heavy & extra heavy structural classification.

Nomenclature

• Lwa [dB(A)]
  The sound power level of the air-regenerated noise
• V [m°/h] and [I/s]
  Volume flow rate
• Ap, [Pa]
  Floor void static pressure
• Ap, [Pa]
  Total differential pressure

Quick sizing

Technical data
Volume flow rates apply to a nominal grille size of 600mm x 600mm, max. the sound power level of their-regenerated noise of 50 dB(A) with an open damper unit (unrestricted airflow) and maximum 30Pa pressure drop.
Thow length [Is] provided to a maximum time average air velocity [V J of 0.5m/s with supply air temperature differential of -10°K.

AFG-A .-AG Quick sizing – sound power level and total differential pressure

Order code

1. Туре
   AFG Floor grille
2. Attachments
   A Without (grille face only)
   AG Damper unit, opposed action blades
3. Nominal size
   600 x 600
4. Frame depth
   25 Standard
   XX 26mm to 50mm (1mm increments)
5. Frame Construction
   2 Stringer width 0-40mm
6. Exposed surface
   P2 Powder-coated, RAL9006:30%
   P4 Powder-coated, RAL9005:20%
   N1 Powder-coated, with nylon reinforcing, RAL9005

Order example
AFG-AG/600×600/0/35/2/P2

• Attachments Damper unit, opposed action blades
• Nominal size 600 × 600
• Floor tile depth 35mm
• Stringer width 40mm
• Exposed surface Powdercoat, RAL9006:30% (silver grey)

Dimensions and weight

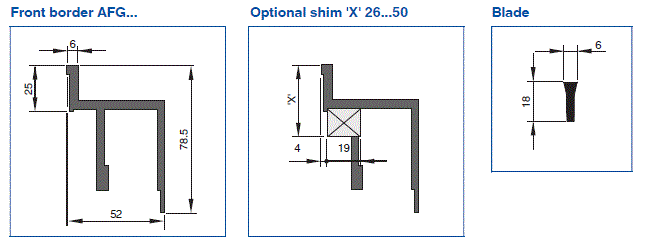

Front border and blade
Optional shim factory installed in each corner where total frame depth [‘X’1 > 25mm.
Frame depth [X] is the depth from the finished pedestal bearing surface to the floor level and should be checked before order.

AFG-A …. AG
Optional ‘AG’ opposed blade volume control damper factory installed to rear of AFG floor grille.
Damper operation is possible through face of grille.
NOTE: Type AFG suitable for a maximum pedestal head diameter of 90mm.
Type AFG suitable for maximum stringer width 40mm (..-2). Please check floor system and confirm at the point of order.

Weight

Specification text

Standard text
This specification text describes the general properties of the product Extra heavy-duty construction floor grille for computer rooms for supply air. Edge frames with welded mitered corners suitable for pedestal mounting (maximum 090mm and stringer widths 0–40mm. Height between pedestal face and face of grille to be selected with permanent factory-fitted shims as necessary.
Options: opposed blade volume control damper assembly.  The sound power level of the air-regenerated noise was measured according to EN ISO 5135.

Parts and characteristics

• 6mm wide welded mitred border sections
• Fixed horizontal blades Vertical lateral mullions

Materials and surfaces

• Border and blades made of aluminium
• P2: Border and blades powder-coat RAL9006:30%
• P4: Border and blades powder-coat RAL9005:20%
• N1: Border and blades powder-coat RAL9005, with nylon reinforcing

Technical data

• Nominal size: 600 × 600
• Nominal frame depth: 25mm up to 50mm, (1mm increments)
• Total open area: 0.152m?
• Free area: 42%
• Maximum volume flow rate (supply air), at LWA max. 50 dB(A) without attachments: 530 l/s or 1908 m’/h

Order options

1. Туре
   AFG Floor grille
2. Attachments
   A Without (grille face only)
   AG Damper unit, opposed action blades
3. Nominal size
   600 x 600
4. Frame depth
   25 Standard
   XX 26mm to 50mm (1mm increments)
5. Frame Construction
   2 Stringer width 0-40mm
6. Exposed surface
   P2 Powder-coated, RAL9006:30%
   P4 Powder-coated, RAL9005:20%
   N1 Powder-coated, with nylon reinforcing, RAL9005
