Ge Tilt-head Electric Stand Mixer Instruction Guide

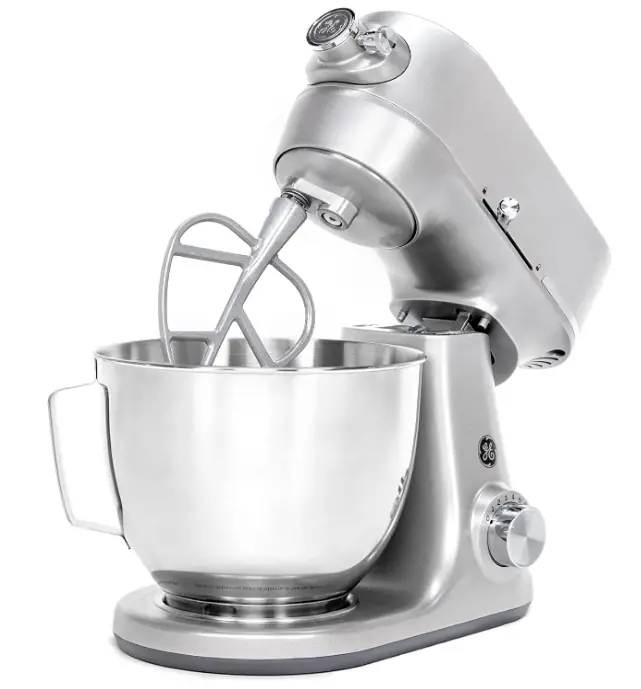

GE Tilt-Head Electric Stand Mixer

Specifications

• PRODUCT DIMENSIONS: 9″D x 16.3″W x 13.6″H
• ITEM WEIGHT: 19 Pounds
• VOLTAGE: 120
• WATTAGE: 350 watts
• MATERIAL: Aluminum
• CAPACITY: 3 Quarts
• BRAND: GE

Introduction

The GE Tilt-Head Stand Mixer provides a dependable, simple-to-use kitchen necessity that is ideal for regular baking needs. This mixer’s 5.3 qt. capacity and 7 optimised speeds enable it to handle a wide range of tasks, from making cookies and ciabatta to fettuccini al dente. With its sturdy die-cast metal construction and strong 350-watt motor, this mixer can handle even your biggest holiday batches.

WARNING

Read the instructions carefully before using the appliance for the first time. Save these instructions for reference. The appliance is designed for domestic use and may only be operated in accordance with these instructions for use. Always handle with care and warn other users of potential danger.

IMPORTANT SAFEGUARDS

Always follow these safety precautions when using this appliance.

• Read all instructions before using
• DO NOT immerse the appliance in water or any other liquids. This will damage the appliance and be a risk of an electric shock.
• Use only a 120 V, 60 Hz standard electrical supply that is properly grounded in accordance with the National Electric Code and local codes and ordinances.
• Make sure the appliance is set up on a flat and steady surface.
• Turn the appliance OFF, then unplug from the outlet when not in use, before assembling or disassembling parts and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
• Avoid contacting moving parts. Keep hands, hair, clothing, as well as spatulas and other utensils away from attachments (beaters, whisks, dough hook, etc) during operation to reduce the risk of injury to persons, or damage to the mixer.
• Do not use outdoors. Household use only.
• Use this product only for its intended purpose as described in this user manual.
• The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
• Do not allow children to touch the appliance or the power cord during the operation.
• DO NOT let the appliance run unattended.
• Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• To reduce the risk of fire or electric shock, do not attempt to disassemble, repair, modify, or replace any part of your product.
• If the power cord is damaged, it must be replaced by the manufacturer. DO NOT replace the power cord on your own.
• Do not operate any appliance with a damaged cord, plug, after the appliance malfunctions, is dropped, or damaged in any manner. Contact GE Appliances at the website listed in the Contact Us section for information on examination, repair, or adjustment.

Always follow these safety precautions when using this appliance.

• DO NOT use an extension power cord.
• Do not let cord hang over edge of table or counter.
• Do not let cord contact hot surface, including the stove.
• The use of accessories not included in the box is not recommended. It might be dangerous and should be avoided.
• Remove beater, whisk, and dough hook from appliance before washing.
• Slowly pour hot liquids in the mixing bowl to avoid splashing and burns.
• DO NOT touch acidic food or soak accessories in acidic liquid.
• Do not exceed the maximum capacity as indicated on the accessories (bowl). Follow the quantities, processing time and speed when using the stand mixer tools, as indicated in the user manual.
• Thoroughly clean the parts that come into contact with food before you use the appliance for the first time. Refer to the instructions and table for cleaning given in the user manual.
• Let hot ingredients cool down before processing them. Do not add ingredients 60°C or hotter than ambient temperature. Always let the appliance cool down to room temperature after each batch that you process.

WARNING

RISK OF FIRE OR ELECTRIC SHOCK

• TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,  DO NOT REMOVE ANY COVER OR OUTER HOUSING COMPONENTS OF THE APPLIANCE.
• Do not attempt to repair or replace any part of your stand mixer unless it is specifically recommended in this manual. All other servicing should be performed by authorized service personnel.

PROPER DISPOSAL OF YOUR APPLIANCE

Dispose of or recycle your appliance in accordance with Federal and Local Regulations. Contact your local authorities for the environmentally safe disposal or recycling of your appliance.

Getting Started

Before First Use

• Read all safety instructions before the first use.
• Be sure to clean your stand mixer as listed in the Care and Cleaning section of this manual.

Auto Stop

• The stand mixer will automatically turn off after 10 minutes of continuous  operation. This prevents potential safety problems and prolongs the life cycle of the appliance.
• This mixer will automatically shut off if you unlock the tilt head and lift while in operation. If this happens the dial must be reset to “0” before the mixer will turn on again.

Mixing Bowl Notes

• Turn the control knob to the 0 position (Off position) before starting.
• This stand mixer has a capacity of approximately 4 ¼ US cups flour or 2 ½ lbs. of dough.
• Follow the recommended quantities, processing time, and speed as indicated in this owner’s manual. DO NOT exceed suggested processing speed, doing so could harm the appliance.

Batter
When making cake batter with the beater attachment, be careful to not over beat the batter. This can add extra air into the batter and cause the cake to mound in the center and crack while baking.

Whisking

• Always make sure your bowl and accessories are clean and dry when you are whisking egg whites or whipping cream.
• The weather can affect your egg whites. Humidity can make it difficult to create the stiff white peaks due to moisture in the air.
• A great way to create whipping cream is to chill the whisk and bowl in your refrigerator for 20-30 minutes before whisking.

Dough

• It is sometimes helpful to start blending your dough with the beater accessory until a loose dough is formed. Then switching the beater for the dough hook. This is not a required step but can be helpful with wet doughs.
• Make sure to stay at the recommended dough speed to prevent over kneading.
• Frequent scraping of the bowl will prevent the dough from sticking to the bottom of the bowl or climbing the dough hook, especially when you have a very wet dough.

Controls

Use the control knob to select your desired speed.

NOTE
Make sure the control knob is Off, in the “0” position when not in use, before unplugging, and before locking the tilt head.  See page 8 for mixing chart.

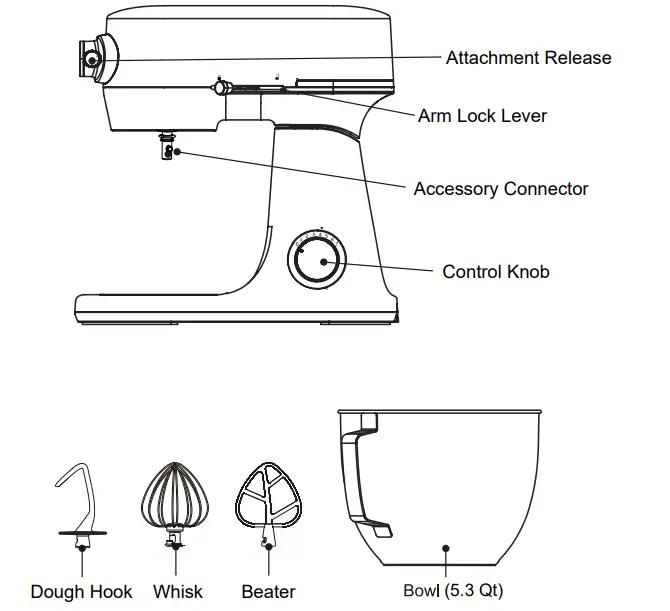

Parts Included

Using your Stand Mixer

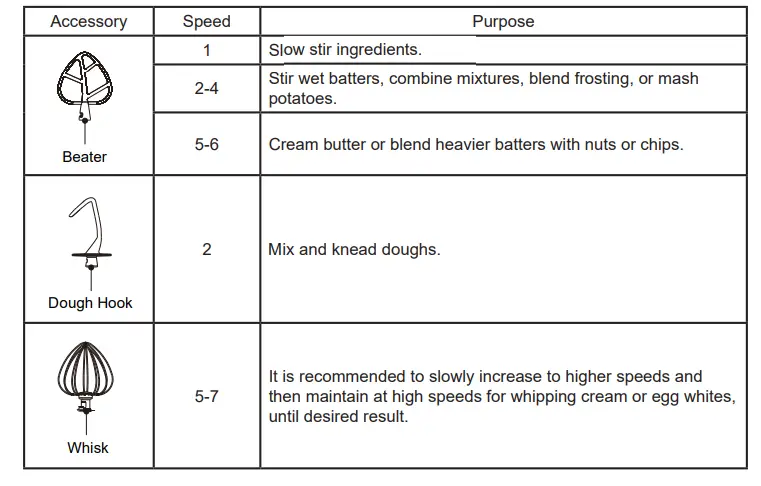

Mixing Chart

Tips

• To avoid splatter, always increase speed gradually.
• Whisk: before whisking egg whites or cream, make sure that the bowl and the whisk are dry and free from grease.
• Kneading: use the dough hook to knead yeast dough for bread and pizzas.
• Adjust the amount of liquid to form the dough according to the humidity and temperature condition.
• If you want to re-knead the dough with your stand mixer, press the dough down to the bottom of the bowl to avoid the dough wrapping on the tool. Make sure that you re-knead the dough within the recommended speed.

Using your Stand Mixer

Appearance may vary slightly

• Make sure the mixer is unplugged and turned off.

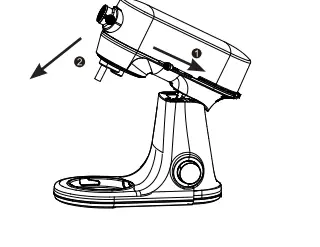

• Release the lock lever by sliding it to the right.

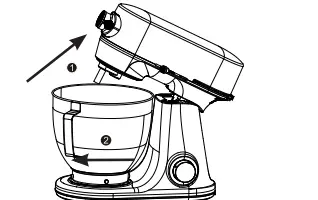

• Tilt the mixer head up until it locks into place.

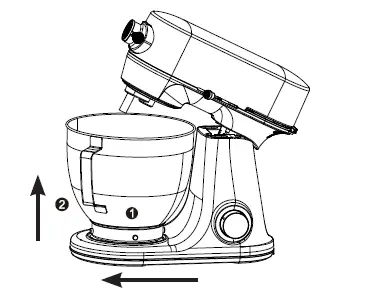

• Place the bowl in the bowl base and turn it clockwise until it locks into place.

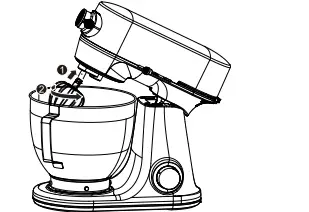

• Insert your desired attachment onto the output shaft. Press up until the attachment cannot go up any further. Then turn the attachment counter-clockwise so the attachment hooks over the pin on the shaft. See the mixing chart on page 8 for a guide on attachment use.

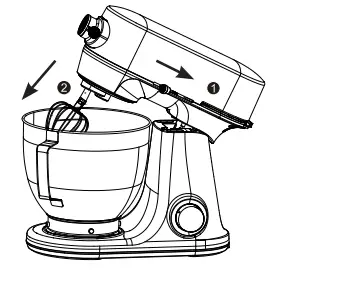

• Release the lock lever by sliding to the right and pushing the head of the mixer down into the bowl until it clicks into place.

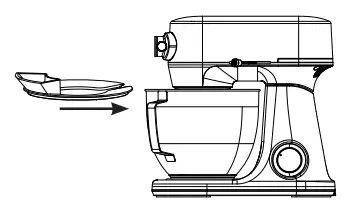

• Slide the bowl lid onto the bowl. (Bowl lid is optional)

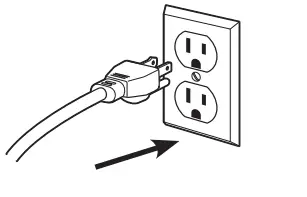

• Plug the mixer into an outlet.

• Select desired speed by rotating the control knob.


10. When finished, rotate the control knob back to the “0” position.

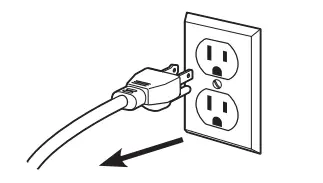

11. Unplug the mixer from the outlet.

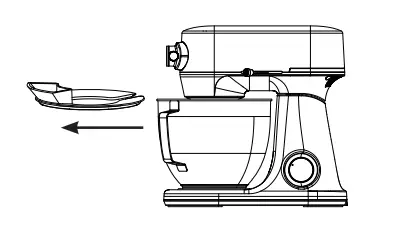

12. Slide the bowl lid from the bowl.

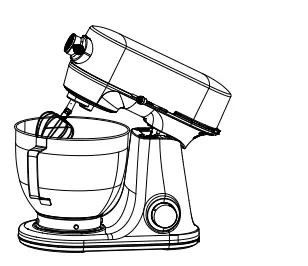

13. Tilt the mixer head up until it clicks into place.

14. Remove the attachment by turning the attachment clockwise and pull to remove from the mixer.

15. Release the lock lever by sliding to the right and pushing the head of the mixer down.

Care and Cleaning

WARNING

Unplug the appliance before cleaning.

Refer to the table below before cleaning the parts with water, a damp cloth, or using any parts in the dishwasher.

• Clean the main unit with a damp cloth.
• Clean the other parts in hot water either in the sink or dishwasher after referring to the table.
• Store the appliance in a dry place after cleaning.

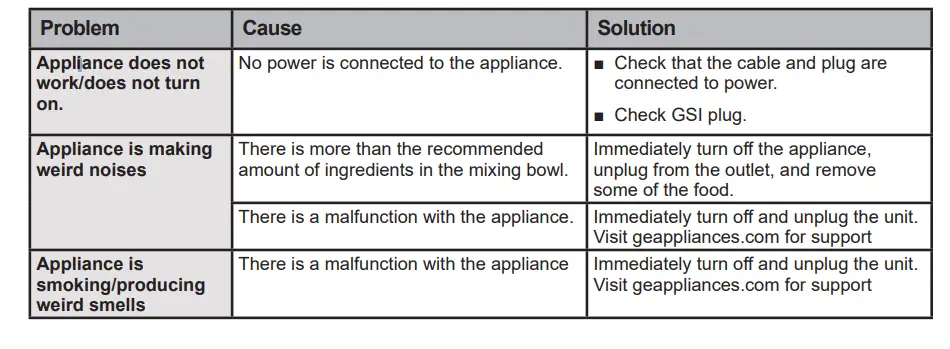

Troubleshooting

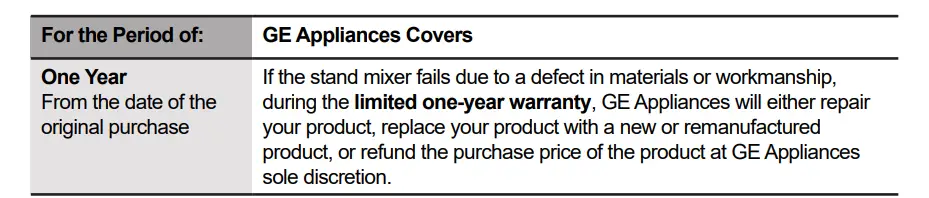

GE Appliances Limited Warranty

If your appliance fails to operate properly while in use under normal household conditions within the warranty period, visit geappliances.com/contact for product care/maintenance self-help.

To initiate a warranty claim, please visit geappliances.com/contact, or call 1-800-GECARES. Please have your model number and serial number available. Return and packing instruction information will be provided at that time.

What GE Appliances Will Not Cover

• Service trips to your home.
• Improper installation, delivery or maintenance.
• Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.
• Replacement of house fuses or resetting of circuit breakers.
• Damage caused after delivery.
• Damage to the product caused by accident, fire, floods or acts of God.
• Incidental or consequential damage caused by possible defects with this appliance.
• Labor and other charges to install and/or remove the product.

EXCLUSION OF IMPLIED WARRANTIES

Your sole and exclusive remedies are product exchange or refund as provided in  this Limited Warranty.  Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

For US Customers: This limited warranty is extended to the original purchaser for products purchased for home use within the USA. In Alaska and Hawaii, the limited warranty does not include the costs of shipping units.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.

Warrantor: GE Appliances, a Haier company

Louisville, KY 40225

For Customers in Canada

This limited warranty is extended to the original purchaser and any succeeding owner for products purchased in Canada for home use within Canada. In-home warrant service will be provided in areas where it is available and deemed reasonable by Mabe to provide. For extended warranty information, visit geappliances.ca/purchase-extended-warranty

Warrantor Canada: MC Commercial, Burlington, Ontario, L7R 5B6

Consumer Support

Service and Registration

Register your new appliance on-line at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise.

Register your appliance at GEAppliances.com/register.

In Canada, service.geappliances.ca/servicio/en_CA/

Contact Us

If you are not satisfied with the service you receive from GE Appliances, contact us on our website with all the details including your phone number, or write to:

In the US: General Manager, Customer Relations | GE Appliances, Appliance Park | Louisville, KY 40225

GEAppliances.com/contact

In Canada: Director, Consumer Relations, MC Commercial Inc. | Suite 310, 1 Factory Lane | Moncton, N.B. E1C 9M3

GEAppliances.ca/en/contact-us

Frequently Asked Questions

Do GE stand mixers come with a warranty? How long is the warranty if it is?

A restricted one-year warranty from the date of purchase is included with this stand mixer. We appreciate the check.

Do you intend to sell this again? The GE website has this for 100 less.

As the reseller sets the price, we advise you to check it frequently.

What brand-name meat grinder attachments will fit this device’s sausage maker?

We are unable to recommend a particular brand of grinder. The majority of grinders made for stand mixers are compatible with our stand mixer.

Can I purchase more attachments?

The flat beater, dough hood, wire whisk, and pouring shield are included with this item. It is possible to buy each of these. A meat grinder is one of the many third-party attachments that are compatible with this device.

How long do you think a properly maintained GE stand mixer will last?

I bet a long time. Ours is heavily used, and we wash it as directed (attachments are hand wash only while mixing bowl is dishwasher safe). No wear is visible.

Does this operate on 220 volts?

His device will be powered by a typical 120V, 60Hz electrical supply. Sadly, it does not operate on 220 volts; we apologies for any inconvenience this may have caused.

The nozzle can I wash in the dishwasher?

If you mean the whisk, dough knife, or batter mixer attachments, then no, those are hand wash only. However, you can put the bowl and splash guard in the dishwasher.

Does this machine have a pasta attachment that fits it?

While we do not provide a pasta attachment, this model is compatible with a number of third-party companies’ attachments.

Is the GE knob blocking the pour shield opening?

The GE knob is not obstructing the pour shield opening, though. We are appreciative of your inquiry.

How long do you believe a properly maintained GE stand mixer will last?

The lifespan of any appliance cannot be predicted. The frequency, type, and location of use, as well as the care and maintenance given to the appliance, could all have an impact on how long it lasts. Examples of these factors include high humidity levels and proximity to the ocean. We are sure that this device will last you a very long time.

Does this accept attachments for kitchen aids?

While we are unable to name specific brand names, we can confirm that our mixer has an accessory port that works with a wide range of third-party attachments.
