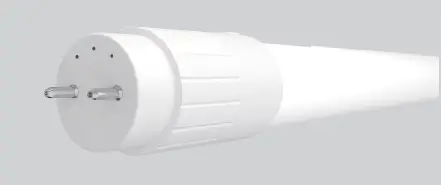

GREENCREATIVE T8 Double Ended Bypass LED Tube Instruction
FEATURES
- Integral driver suitable for 120V
- Replaces 32W T8 Fluorescent lamps
- Compatible with most 120V phase dimmers
- High efficacy up to 138 LPW
- Opaque glass eliminates pixilation and reduces glare
- 310° wide light emitting area
- Suitable for enclosed fixtures
- UL 1598C classified
- Temperature rating: -4°F/-20°C – 95°F /35°C
- Rated lifetime (L70): 50,000hrs
- 5 year limited warranty / 10 year available (see EXTENDED WARRANTIES table for information)
- Suitable for all indoor general lighting applications and damp locations
SPECIFICATIONS
| SPECIFICATIONS | ||||||||||||||
| Product | Model | Equiv. | Input Voltage | Wattage | Lumens | CCT | CRI | Efficacy (LPW) | Power Factor | THD | Beam Angle | Dim.* | Fixture Rating | DLC |
| 98372 | 13T8/4F/DIM/830/BYP | 32W | 120V | 13 | 1700 | 3000K | 82 | 128 | 0.9 | <20% | 220° | Yes | Enclosed | √ |
| 98373 | 13T8/4F/DIM/835/BYP | 32W | 120V | 13 | 1700 | 3500K | 82 | 128 | 0.9 | <20% | 220° | Yes | Enclosed | √ |
| 98374 | 13T8/4F/DIM/840/BYP | 32W | 120V | 13 | 1800 | 4000K | 82 | 138 | 0.9 | <20% | 220° | Yes | Enclosed | √ |
| 98375 | 13T8/4F/DIM/850/BYP | 32W | 120V | 13 | 1800 | 5000K | 82 | 138 | 0.9 | <20% | 220° | Yes | Enclosed | √ |
* Please refer to www.greencreative.com for complete dimmer compatibility list.

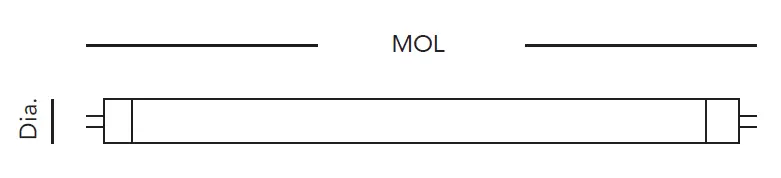

DIMENSION & WEIGHT
| Model | 13T8/4F/DIM/xxx/BYP |
| Base | G13 |
| MOL | 47-13/16″ |
| Dia. | 1-1/8″ |
| Weight | 0.47lb |
INSTALLATION

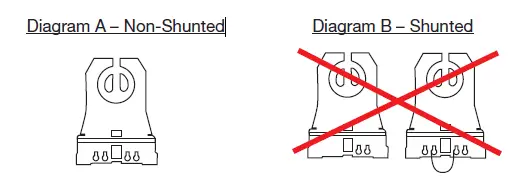

This lamp is compatible with non-shunted lamp holder ONLY.

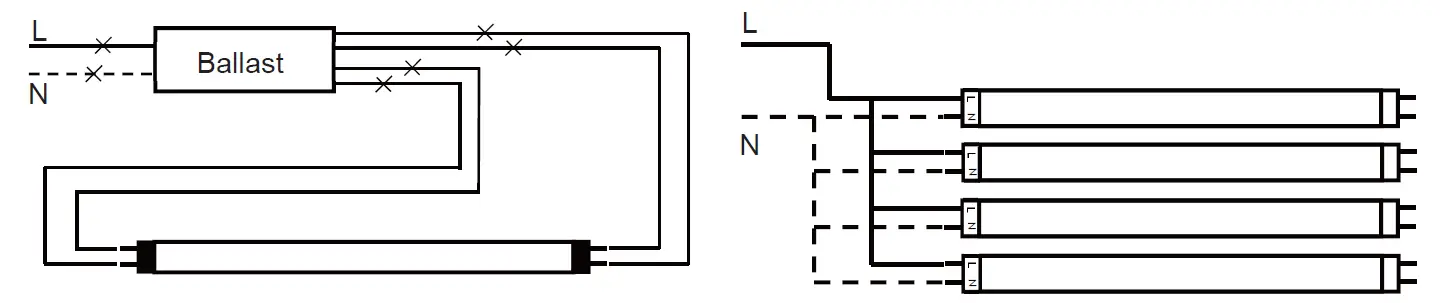

Step 1. Cut all wires connected to the existing ballast, remove the ballast

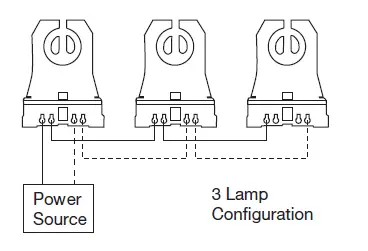

Step 2. Power Source 3 Lamp Configuration If shunted lamp holders are used in the existing fixture, replace them with non-shunted holders first. Wire the holders and lamps according to the above diagram.
ACCESSORY ORDERING INFORMATION
| Product | Model | Description | Pictures | Dimensions |
|

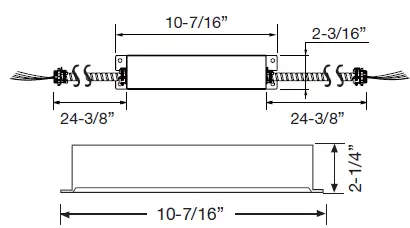

98003 |
23EMDRIVER |
California Title 20 Compliant 23W Emergency LED Driver (Field Installation) |
|
|
EXTENDED WARRANTIES
| Model | Description*** |
| 13T8/4F/DIM/BYP/10YEARWARRANTY | 10 Year warranty for 13T8/4F/8xx/DIM/BYP/yy |
- Warranty based on a maximum of 4,368 annual operating hours (per year for ten years) and exposure to a maximum ambient temperature of 80°F / 27°C.
- xx – Refers to the CCT yy – Refers to model generations within the same nominal performance. Typically blank, ‘R’, or ‘RC’
CERTIFICATION INFORMATION
| Product | Model | DLC ID# |
| 98372 | 13T8/4F/DIM/830/BYP | PSZ4IV7E |
| 98373 | 13T8/4F/DIM/835/BYP | PXTVPY7K |
| 98374 | 13T8/4F/DIM/840/BYP | P4X7PU6Z |
| 98375 | 13T8/4F/DIM/850/BYP | PQ5SMENO |
Note: All rights reserved. All sizes and specifications are subject to change at any time without notice.
