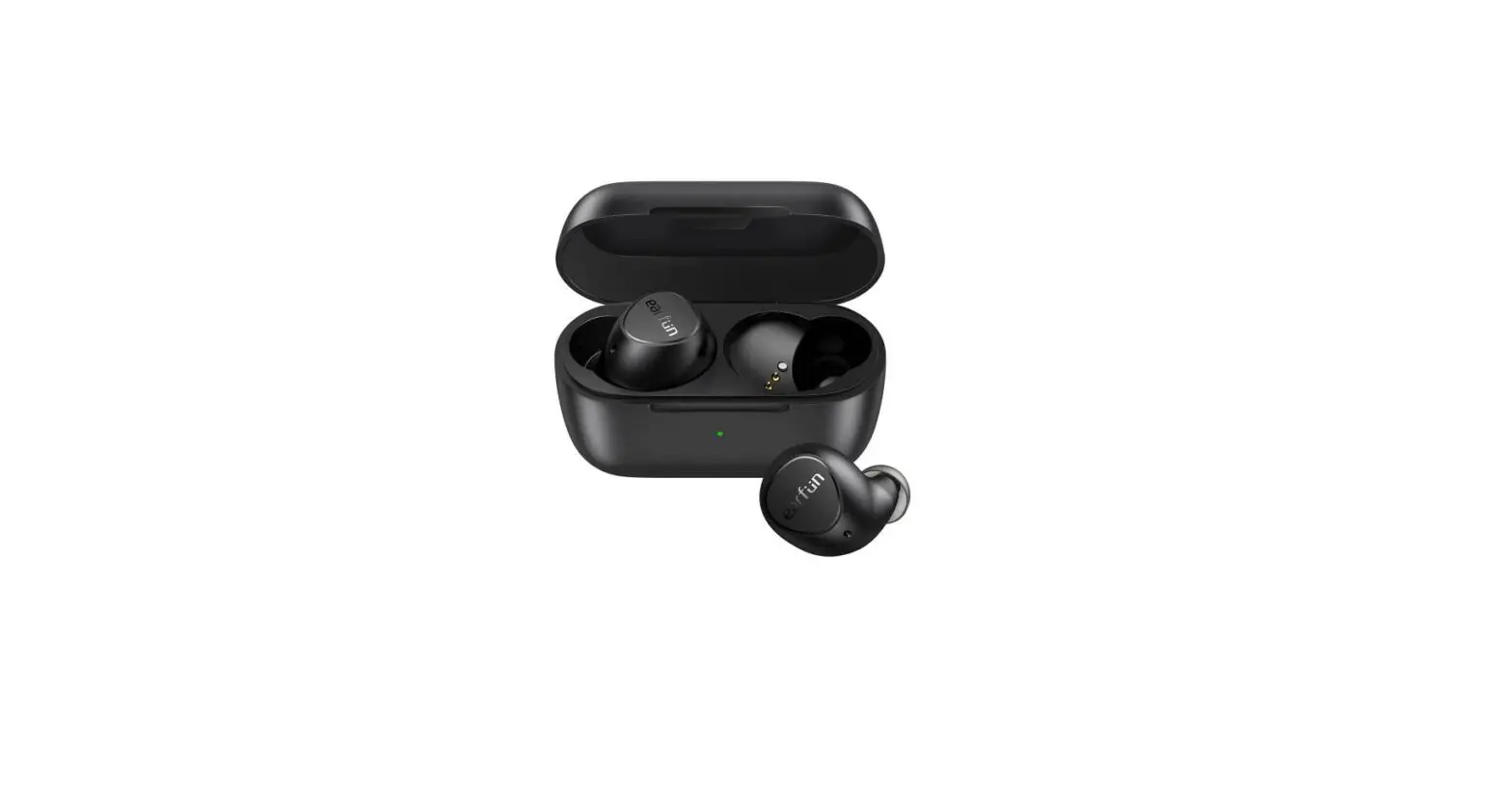

EarFun Free True Wireless Earbuds User Manual

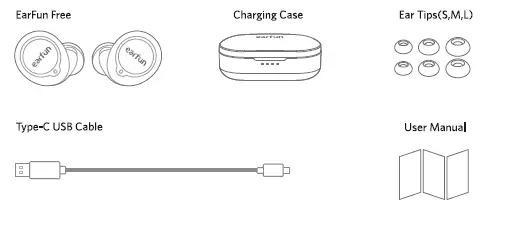

1. What’s in the Box

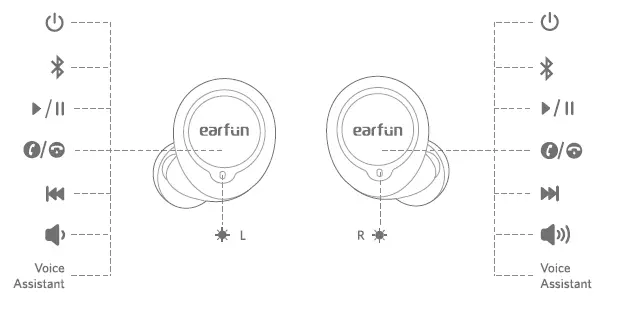

2. Product Diagram

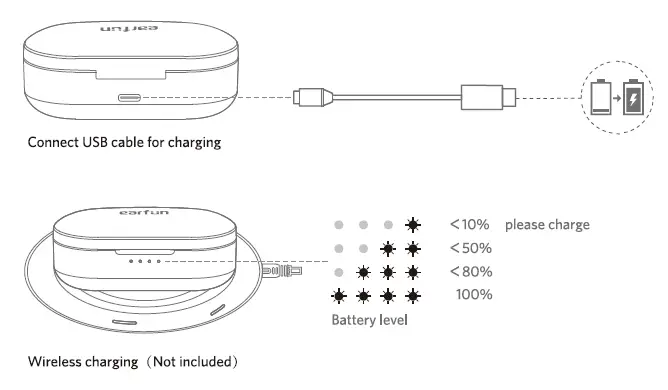

4. Charging
Earbuds automatically charge in case
5. Specifications
| Input | DC 5V/1A |
| Bluetooth Version | V5.0 |
| Bluetooth Profile | A2DP,AVRCP, HFP, HSP |
| Maximum Working Range | 15m(without obstacle) |
| Earbuds battery life | Up to 6 hours(various by volume and audio content) |
| Earbud Charging Time | About 1.5 hours |
| Earbud Battery Capacity | 50mAh |
| Charging Case Battery Capacity | 500mAh |
| Case Charging Time | Type-C bout 2 hours; Wireless Charging: about 3.5 hours |
| Charging Case Recharge Earbuds | 4times |
| Product Weight | 60g |

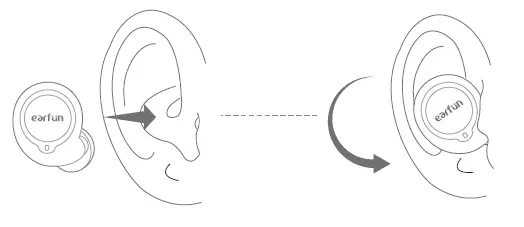

6. How to fit
1. Identify the left and right earbuds.
2. Rotate the earbuds, and adjust to find the best angle.
3. Make sure the ear tip seals in the ear canal.

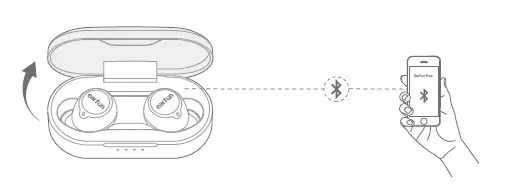

7. Pairing Your Earbuds
First time pairing with device
Step 1: Open the charging case, earbuds will automatically power on and enter into pairing mode.
Step 2: Activate Bluetooth on your Bluetooth-enabled device and search for other Bluetooth devices.
Step 3: Select “EarFun Free ” from the list of Bluetooth devices shown (if a password is needed, type ‘0000’).
Notes:
- The earbuds will automatically connect with the device they were last paired with when the case is opened.
- Each earbud could be used independently.
8. Connect to a new device
Option A:
Step 1. Unpair the earbud from the bluetooth-enabled device when it’s connected. The earbud will lose bluetooth connection to the current device and enter into pairing mode.
Step2. Search on the new device and connect.
Options B:
Step l. Triple press the L/R earbud when it’s connected and the music’s off. The earbud will lose bluetooth connection to the current device and enter into pairing mode.
Step 2. Search on the new device and connect.
Option C:
Step 1. Double press the VR earbud when it’s on and not connecting to any device.
The earbud will enter into pairing mode.
Step 2. Search on the new device and connect.
9. Functions
Power On

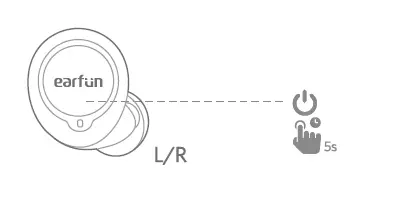

Power Off
Place earbuds in case to automatically power off and charge.

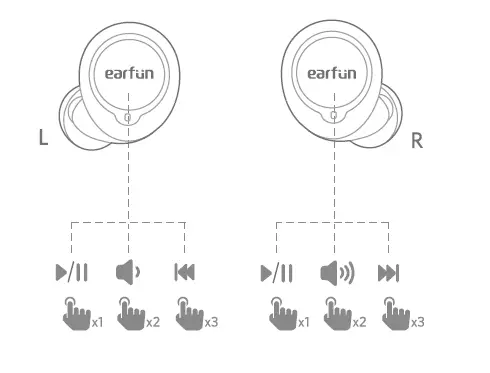

Playing Music
Note:
For Android devices, the volume unsyncs between the device and earbuds. Even turned up to its highest, it still might be insufficient. You may double press the R or L to increase or reduce it respectively.

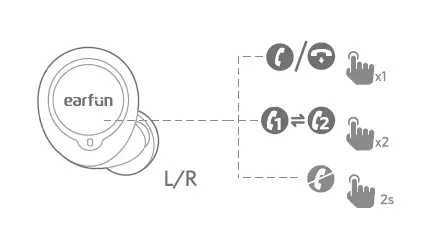

Hands-free Conversation

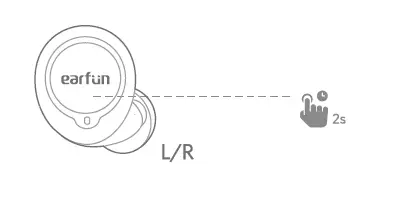

Voice-Assistant
10. Earbuds LED Indicator
| Power On | Blue indicator flashes 1 second |
| Power Off | Red indicator flashes 1 second |
| Pairing Mode | Either indicator flashes blue quickly |
| Re-pairing Mode | Blue indicator flashes quickly |
| Successfully Connected | Indicator goes out |
| Charging (earbuds) | Indicator flashes red once every 5 seconds |
| Fully Charged | Indicator turns off |
| Factory Reset | Indicator flashes purple quickly |

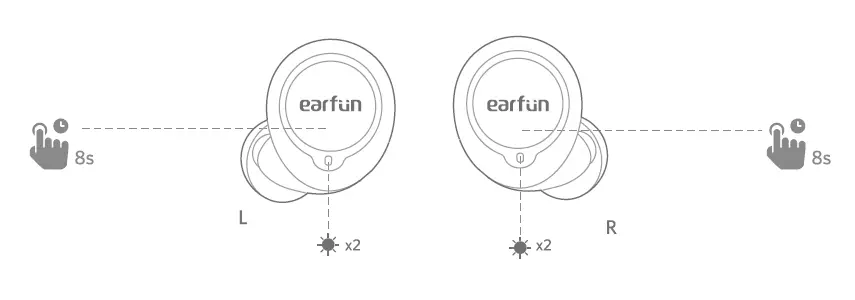

11. Reset and reconnecting
If you fail to build connection between two earbuds, or between earbuds and Bluetooth device, please try the following steps:
Step 1: Un pair EarFun Free from your Bluetooth-enabled device and delete the old connection on your device.
Step 2: Pick up the earbuds from the case and press the buttons for 2s at least to power off until they flash in red.
Step 3: Press and hold the button on each earbud for at least Bs until they flash in purple
(Do press until they flash in purple. If not, they aren’t reset successfully.)
Step 4: Place them back into the case and remove it again to start reconnecting.
12. Troubleshooting
A: Yes, each earbud could be used independently.
A: To connect the ear buds to your device, please check if the Bluetooth of the device is on at first, then select ‘EarFun Free’ on the Bluetooth list to get paired. If the earbuds still can’t connect to your device, please try to reset it, or contact our customer support.
A: Please make sure there are no objects between the earphones and your Bluetooth device, and make sure there is no radio or WIFI interference nearby.
A: Bluetooth earphones have maximum range of 49 feet (15m, no obstacle). However, the actual range wilt depend on usage and environment.
A:. Yes. Double pressing the L earbud decreases the volume while double pressing the R could increase it.
A:. Please recharge it and make sure it has enough battery power. If it is fully charged and still nothing happens or if you are not able to charge the unit, please contact our customer support for warranty cover.
A: No, the earbuds are IPX7 sweat & waterproof, but the charging case is not waterproof.
A:The earbuds will remain on as long as they are connected to a device. If no audio is in use, they will enter poweMaving mode and wake up once audio is played. If the earbuds are not connected with any devices, they will automatically shut off in 10 minutes.
Note:
Please dry the earbuds before you put them back into the charging case. Sweat or water on the earbuds might cause short circuit and damage the product during charging.
