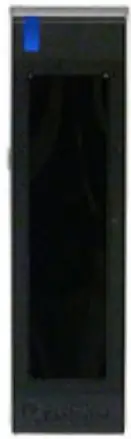

GeoVision GV-DFR1352 Door Frame Card Reader
GV‐DFR1352 is a card reader designed to be installed on the door frame for recognizing access control cards. Featured with the Wiegand and RS‐485 outputs, GV‐DFR1352 can be connected to any standard access control systems. GV‐DFR1352 comes with a weather sealed and IP66 compliant housing for outdoor use.
KEY FEATURES
- Weather‐proof and IP66‐compliant housing
- Wiegand interface for third‐party integration
- RS‐485 interface for longer distance installation
- 13.56 MHz for ISO14443A (Mifare DESFire, Mifare Plus and Mifare Classic)
- Support for GV‐Proximity Cards with GID (GeoVision Identifier) to enhance security
- UL 294 compliance
SPECIFICATIONS
| CPU | 8‐bit microprocessor |
| Frequency | 13.56 MHz for ISO14443A (Mifare DESFire, Mifare Plus and Mifare Classic) |
| Input Rating | 7.5V DC ~ 12V DC, 200mA |
| Wiegand Interface | Wiegand 26 / 34 bit, distance 100 m (328.1ft), 24 AWG, 13V DC min., 85 °C min |
| RS‐485 | 9,600 bps, distance 600 m (1968.50 ft), 24 AWG, 13V DC min., 85 °C min |
| LED | Red, Green and Blue LED |
| Beeper | Buzzer |
| Color | Black |
| Supported ID Formats | GID and UID |
| Operating Temperature | ‐35 °C ~ 66°C / ‐31 °F ~ 150.8 °F |
| Operating Humidity | 10 ~ 90% RH (non‐condensing) |
| Dimensions (W x H x D) | 20.9 x 105.6 x 20.5mm (0.8 x 4.2 x 0.8 in) |
| Weight | 80 g (0.17 lb) |
| Ingress Protection | IP66 |
| Certification | CE, FCC, RoHS, UL 294, CUL |
Note:
- RS485 interface only supports GeoVision controllers, while Wiegand interface is compatible with third‐party controllers (Wiegand 26 / 34 Bits).
- UL 294 Attack Class Level 1 depends on other connected equipment.
- If you are using third‐party cards or key fobs, the reader must be under UID mode.
- GID is only supported by GV‐DFR1352 (Rev. B) firmware V1.2 or later.
- Specifications are subject to change without notice.
Options
GV‐AS ID Card & GV‐AS ID Key Fob
125 KHz and 13.56 MHz cards / key fobs are available.
Packing List
- GV‐DFR1352 Card Reader
- Screw x 2
- Screw Anchor x 2
- Front Cover Plate x 2
- Software CD
- Installation Guide
- Warranty Card
