Position your wireless router
For optimal wireless transmission between the wireless router and connected wireless devices, ensure that you:

Place the wireless router in a centralized area for a maximum wireless coverage for the network devices.
Keep the wireless router away from metal obstructions and away from direct sunlight.
Keep the wireless router away from 802.11g or 20MHz only Wi-Fi devices, 2.4GHz computer peripherals, Bluetooth devices, cordless phones, transformers, heavy-duty motors, fluorescent lights, microwave ovens, refrigerators, and other industrial equipment to prevent signal interference or loss.
Always update to the latest firmware. Visit the ASUS website at http://www.asus.com to get the latest firmware updates.

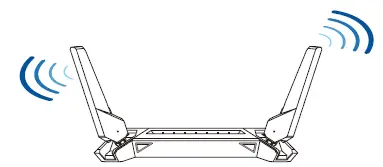

To ensure the best wireless signal, orient the four non-detachable antennas as shown i n the drawings below.

NOTES:
Use only the adapter that came with your package. Using other adapters may damage the device.

Unplug the power cable/DSL modem. If it has a battery backup, remove the battery
NOTE: If you are using DSL for Internet, you will need your username/password from your Internet Service Provider (ISP) to properly configure the router

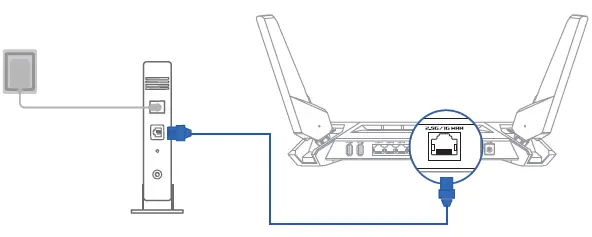

Connect your modem to the router with the bundled network cable.
Power on your cable/DSL modem.

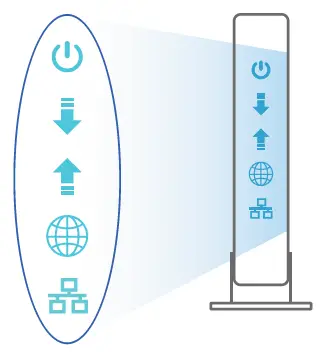

Check your cable/DSL modem LED lights to ensure the connection is active.

You can set up your router via wired or wireless connection

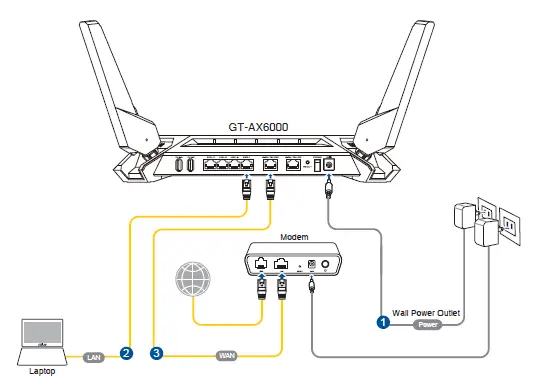

Wired connection

Plug your router into a power outlet and power it on. Connect the network cable from your computer to a LAN port on your router.
The web GUI launches automatically when you open a web browser. If it does not auto-launch, enter http://router.asus.com.

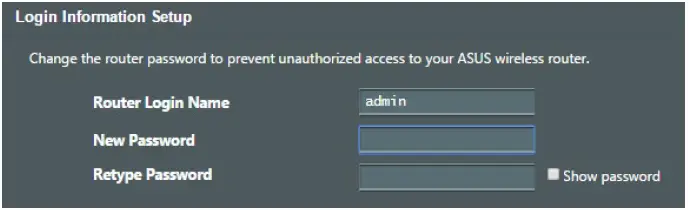

Set up a password for your router to prevent unauthorized access

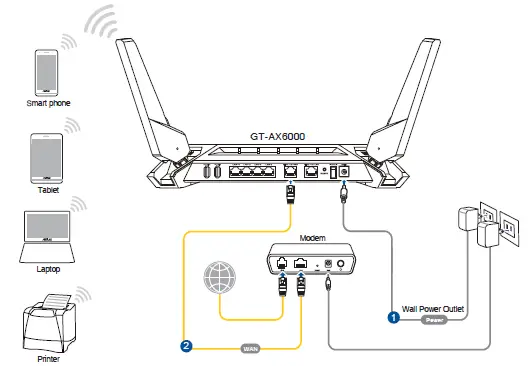

Wireless connection

Plug your router into a power outlet and power it on.

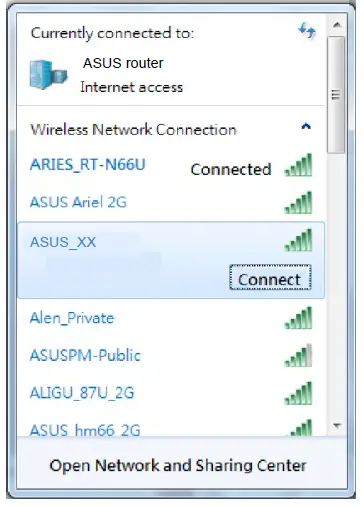

Connect to the network with SSID shown on the product label on the back side of the router. For better network security, change to a unique SSID and assign a password
XX refers to the last two digits of 2.4GHz MAC address. You can find it on the label on the back of your router
You can choose either the web GUI or ASUS Router app to set up your router
Web GUI Setup
1. Once connected, the web GUI launches automatically when you open a web browser. If it does not auto-launch, enter http://router.asus.com.

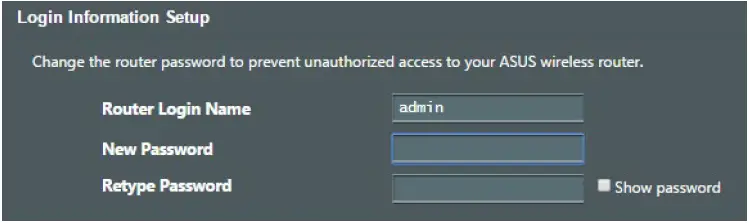

2. Set up a password for your router to prevent unauthorized access
