Speedway 916-03280 Wheel Fitment Simulator Tire Rim Fit Instructions

916-03280 – WheelFit Tool
INSTRUCTIONS
© 2022, Speedway Motors, Inc.

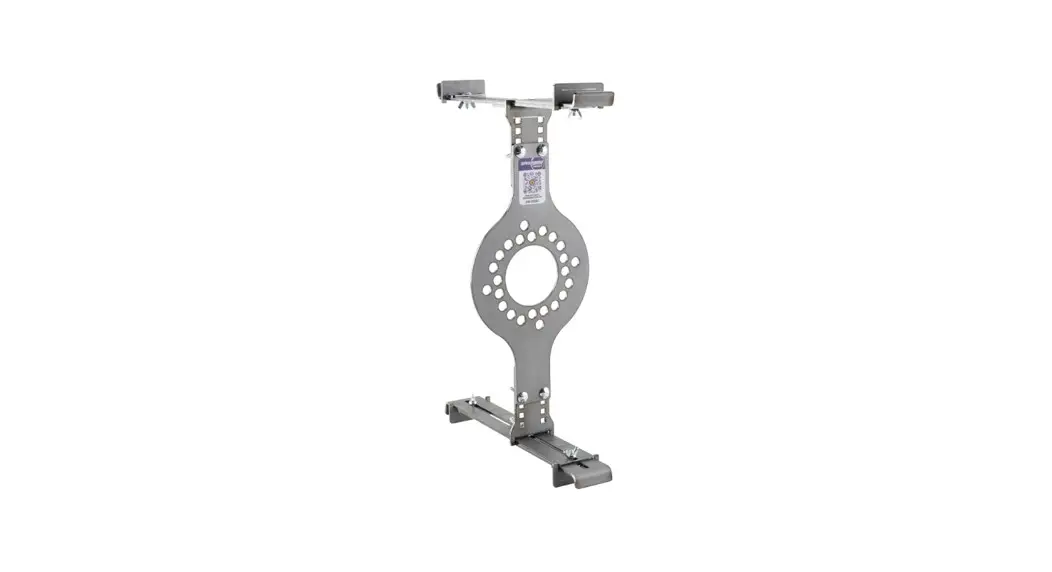

916-03280 Wheel Fitment Simulator Tire Rim Fit

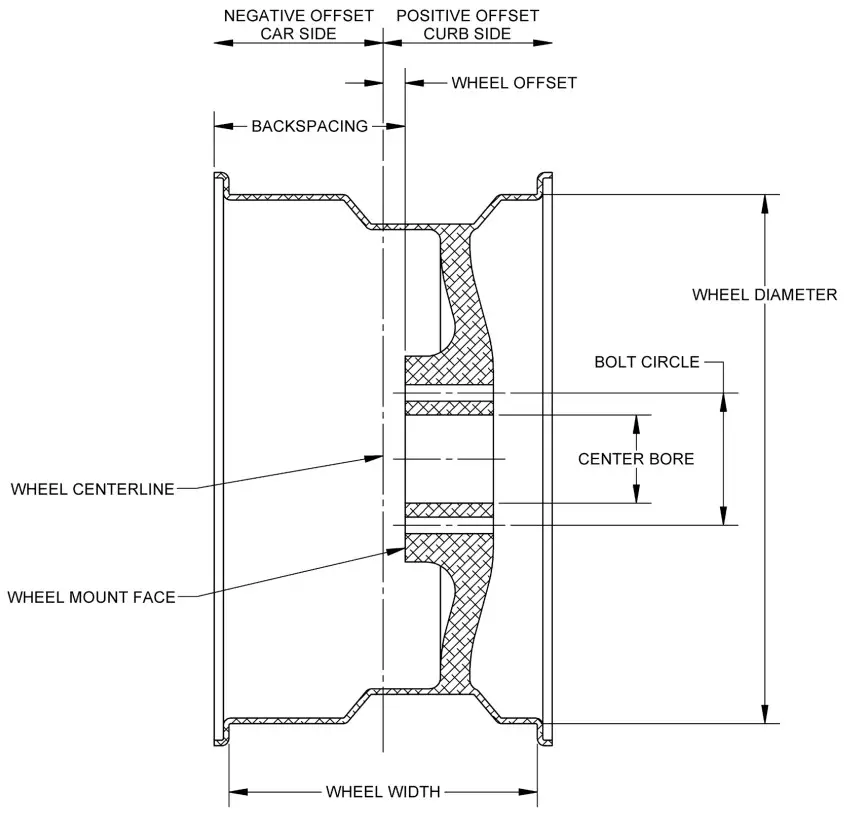

Wheel Dimensions

Wheel dimensions using Wheelfit Tool

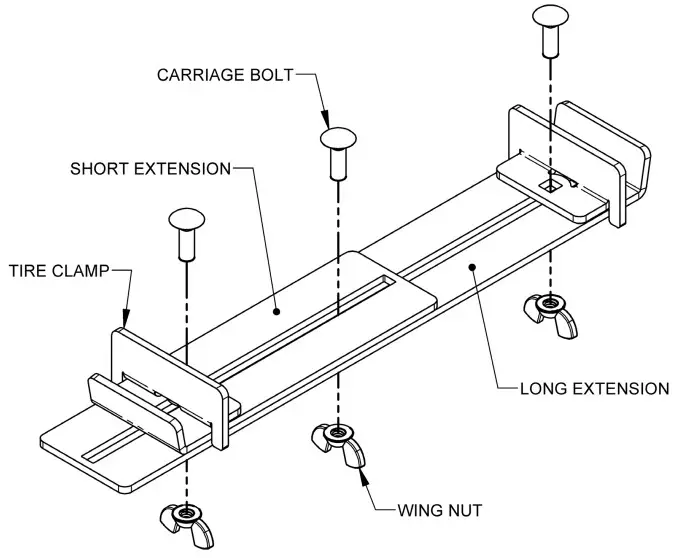

1. Assemble the extensions and tire clamps as shown but leaving the wing nuts loose. Repeat for the other assmbly.

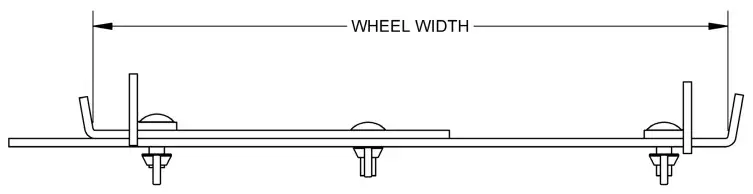

2. Below is a chart giving recommendations for wheel width compared to tire width. Using a tape measure set the desired wheel width and tighten the middle wing nut. Repeat for the other assembly.


   Wheel Width	Minimum Tire Width	Ideal Tire Width	Maximum Tire Width
   7 inches	195 mm	205 or 215 mm	225 mm
   7-1/2 inches	205 mm	215 or 225 mm	235 mm
   8 inches	215 mm	225 or 235 mm	245 mm
   8-1/2 inches	225 mm	235 or 245 mm	255 mm
   9 inches	235 mm	245 or 255 mm	265 mm
   9-1/2 inches	245 mm	255 or 265 mm	275 mm
   10 inches	255 mm	265 or 275 mm	285mm
   10-1/2 inches	265 mm	275 or 285mm	295 mm
   11 inches	275 mm	285 or 295 mm	305 mm
   11-1/2 inches	285mm	295 or 305 mm	315 mm
   12 inches	295 mm	305 or 315 mm	325 mm
   12-1/2 inches	305 mm	315 or 325 mm	335 mm
   13 inches	315 mm	325 or 335 mm	345 mm
   13-1/2 inches	325 mm	335 or 345 mm	355 mm
   14 inches	335 mm	345 or 355 mm	365 mm
   14-1/2 inches	345 mm	355 or 365 mm	375 mm
   15 inches	355 mm	365 or 375 mm	385 mm
   15-1/2 inches	365 mm	375 or 385 mm	395 mm
   16 inches	375 mm	385 or 395 mm	405 mm
   16-1/2 inches	385 mm	395 or 405 mm	415 mm
   17 inches	395 mm	405 or 415 mm	425 mm
   17-1/2 inches	405 mm	415 or 425 mm	435 mm



3. Install the extensions onto the tire 180 degrees from each other. Slide the tire clamps against the tire and tighten the wings nuts. Remove the center carriage bolts and wing nuts after the clamps are tight against the tire.

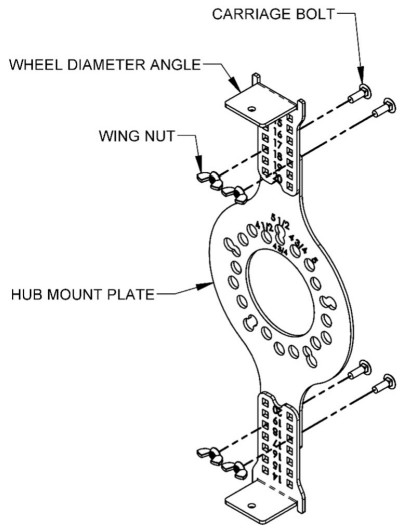

4. Assemble the center section as shown below at your desired wheel diameter.

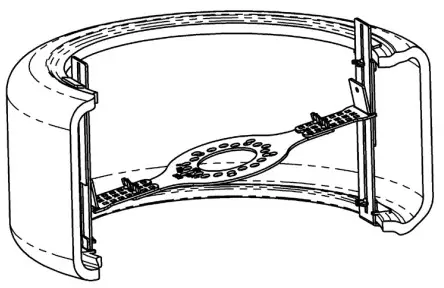

5. Insert the center section at an angle and rotate until perpendicular to the extensions.

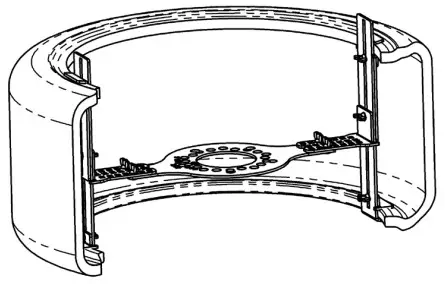

6. Insert the carriage bolts and wing nuts attaching the center section and the extensions. Slide the center section to your desired backspacing and tighten the wing nuts. Measure from the inside of the tire to the edge of the WheelFit Tool on both sides to ensure it is centered in the tire.

7. Support the vehicle with jack stands. Install the Wheelfit Tool and tire assembly onto the vehicle. Check tire and wheel clearances by turning the wheel left to right and raising and lowering the suspension. Adjust the backspacing as needed to gain proper clearance.
8. Once you have gained proper clearance remove the assembly.
   Note the following:
   i. Bolt Hole Pattern (Etched on the hub mount plate)
   ii. Wheel Diameter (Etched on the angles)
   iii. Wheel Width (Dimension from step 2)

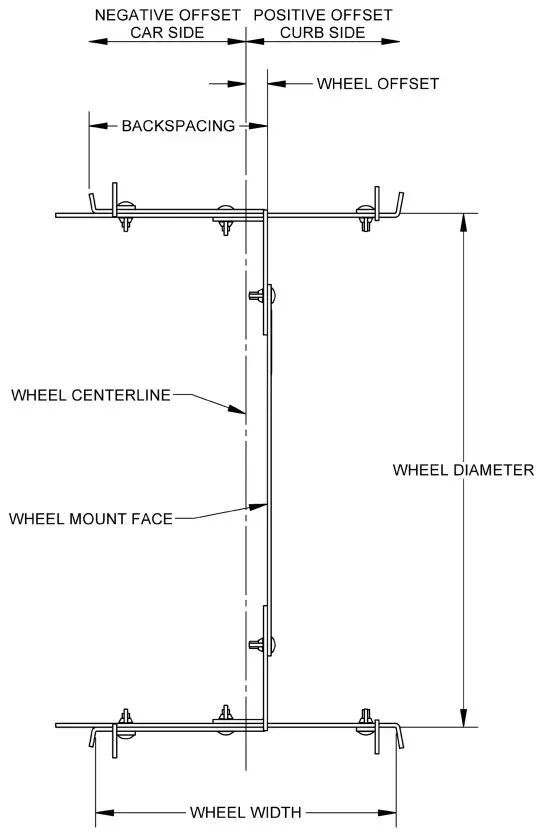

   iv. Wheel Backspacing (Measure as shown on page 2)
