DIGITUS DA-10061 USB Charger 2x USB-A Installation

DEAR CUSTOMER
Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or using this product. Please keep this manual for future reference.

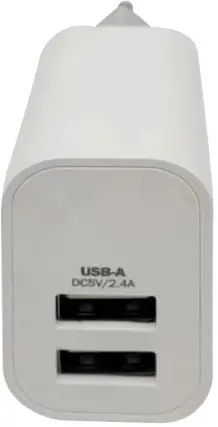

INTRODUCTION

The Universal Charging Adapter from DIGITUS® is suitable for USB devices such as smartphones or tablets and provides an output of up to 15.5 W. 2 USB devices can be charged at the same time. The integrated short circuit, surge and excess current protection provides added security. Furthermore, the integrated excess heat protection prevents potential overloads and damages to the charger or connected devices. Its compact dimensions make the charging adapter ideal for on the go.

FEATURES

Compact charger for USB devices such as smartphones or tablets
Supports charging power of up to 15.5W
The USB ports of the USB charging adapter automatically detect your device, offering 2.1A (max.) and 1A power (a total of 3.1A simultaneously)
Integrated surge protection / excess current protection / short circuit protection
Integrated overheating protection with auto-recovery for the highest degree of security
Ideal for use on the go thanks to compact dimensions
Housing made of fire-resistant material

SPECIFICATIONS

Input/output
Input	100-240V~50/60Hz
Input Plug	EU plug
Output	5V 2.4A (Each port)
Protection
Over Current Protection	Yes
Over Voltage Protection	Yes
Over Load Protection	Yes
Short Circuit Protection	Yes
Over Temperature Protection	Yes
Performance
Ripple And Noise	≤200mV
Efficiency	≥81.38%
Line Regulation	±5%
Mechanical
Color	White
Size	79.242.627.3mm
weight	45g
Environmental
Operating Temperature	0~25°C
Storage Temperature	-20 ~ 85°C
Operating Humidity	20% ~ 90% RH
Storage Humidity	5% ~ 95%
Certification	CE, ROHS
Limited Warranty	1 Year

PACKAGE CONTENT

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton

1x USB Charger 2x USB-A
1x QIG (Quick Installation Guide)

OPERATION

Operation Procedures

Plug the DC connector of power adapter into a socket.
Plug one USB connector of the cable into the interface of the charger and plug the other connector of the cable into the electronic device (Apple iPad, Apple iPhone, Samsung smartphone, MP3, PC, etc.)
Please pull the USB connector out after the electronic equipment’s fully charged.

Operation Notes

For optimum performance, please use the power adapter according to the user manual.
Please plug the power adapter into a socket whose voltage range should be 100~240VAC.
Please unplug the power adapter after using.
Note: Our products have protection functions and the two tips above are suggestions just for safety.
Do not use the power adapter with an electronic product that is not in conformity with the specifications, to avoid any problems caused by specification mismatching.
It’s normal that the power adapter will be a little overheated in the use process.
When the power station stops working under over-current, over-temperature or short-circuit protection, please unplug the device after it automatically returns to work, then you need to check whether the device is compatible with this charger.
Do not let the power adapter close to fire, such as stove, candles etc.
Do not let the power adapter soak into liquid, such as swimming pool, bathtub, etc.
Do not wash the power adapter with corrosive cleaner.
If the power adapter cannot work properly, please contact the store or distributor in your area

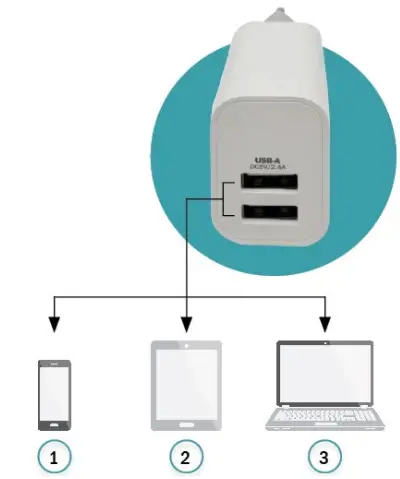

CONNECTION DIAGRAM

Smartphone
Tablet
Laptop

Hereby Assmann Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below-mentioned manufacturer address.
