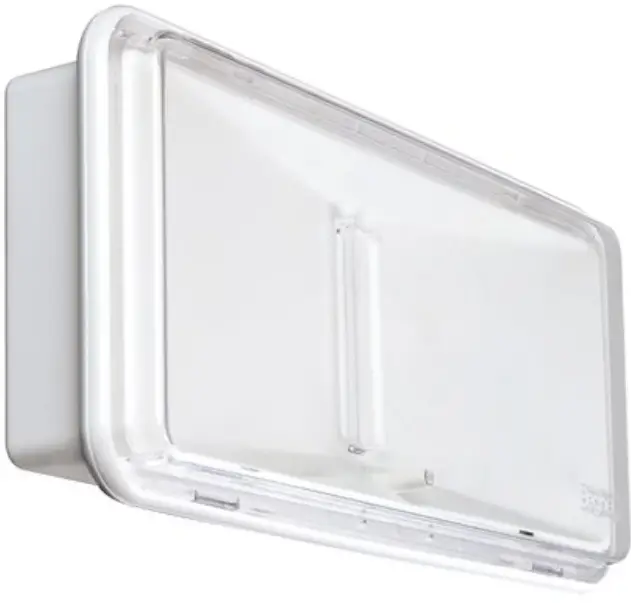

Beghelli Ip42-65 Eurocompleta Led West Light Energy Instruction Manual

Beghelli IP42-65 Eurocompleta LED West Light Energy

4113 (IP42) Sa-Se	65mA	0,11	16 LED	LiFe 3,2V 0,5Ah	1 – 3h
4114 (IP42) Sa-Se	115mA	0,096	16 LED	LiFe 3,2V 1,5Ah	1 – 3h
4115 (IP65) Sa-Se	65mA	0,11	16 LED	LiFe 3,2V 0,5Ah	1 – 3h
4116 (IP65) Sa-Se	115mA	0,096	16 LED	LiFe 3,2V 1,5Ah	1 – 3h

LED SIGNALS

FIXED GREEN    :                  BATTERY CHARGING

FIXED RED          :                   BATTERY DISCONNECTED

WARNINGS – GUARANTEE

•  This device shall be used exclusively for the purpose for which it has been designed. Any other use is considered improper and therefore dangerous.

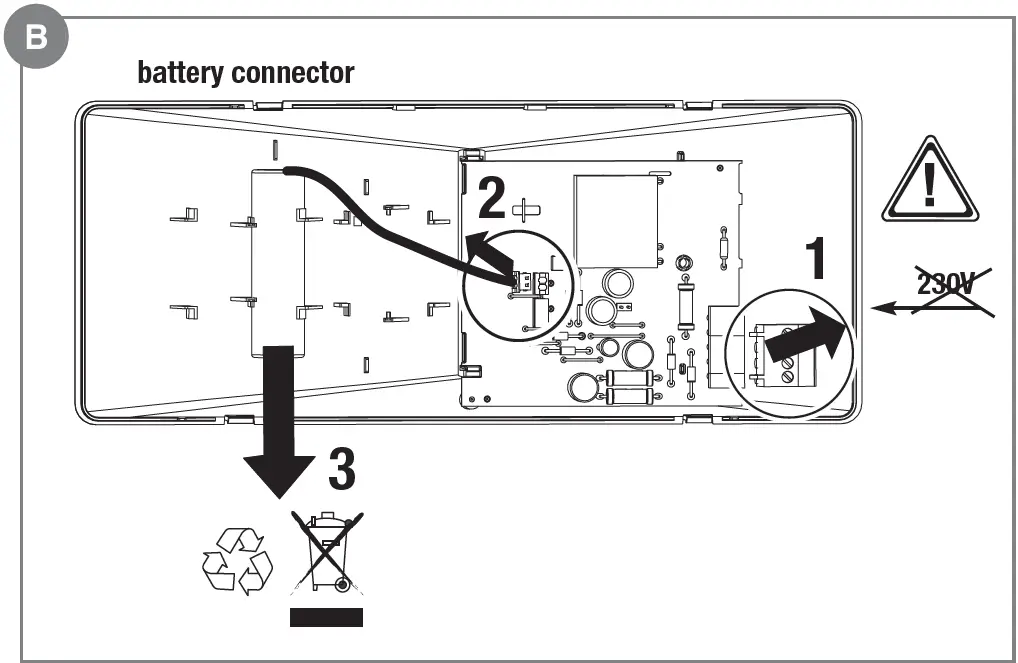

•  Rechargeable battery and LED source are non -replaceable type. Contact an authorised technical service centre for any repairs possibly required use only original spare parts. The lacked respect of the above conditions may compromise the safety of the device.
