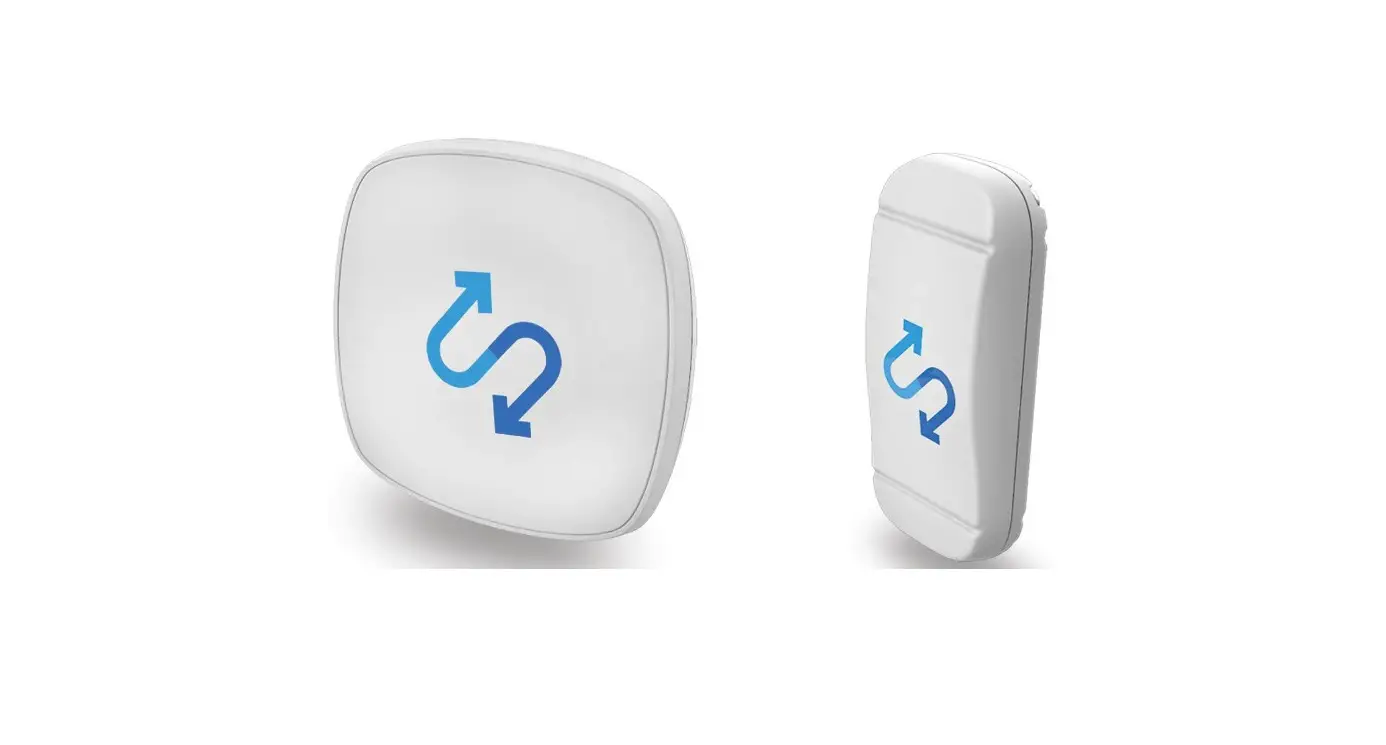

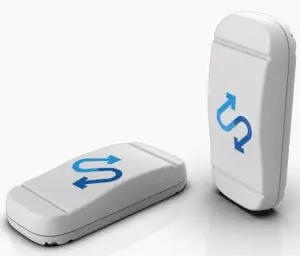

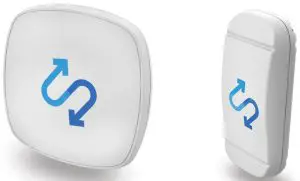

stratosfy Beacon-IO Nordic Connectivity for Workforce User Manual
Stratosfy Beacon-IO is a wireless communication device that transmits Bluetooth identity messages, ideal for indoor and outdoor applications.
Summary
The role of Stratosfy Beacon-IO, as part of Stratosfy Workforce Management solutions, is to guarantee activities are carried out at precise locations by either registering workforce presence or unlocking location-based task lists when workers are within the device’s communication range.
Technology Highlights
- Proprietary technology
- Bluetooth 5 ready multi-protocol radio-based device
- Location precision down to 6 ft (2 m)
- Supports iBeacon and Stratosfy Telemetry (proprietary) packets concurrently
- Fully manageable devices via Stratosfy’s Mobile applications
Applications
Stratosfy Beacon-IO devices are typically meant to be installed at different interior areas of a location, such as lobbies, elevators, washrooms, meeting rooms, maintenance rooms and at different exterior areas of a location, such as parking lots, garages, lobbies, elevators, washrooms, meeting rooms, maintenance rooms, garbage bin areas.

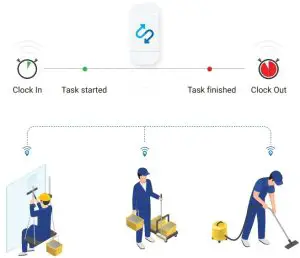

How it works

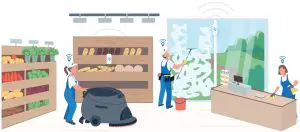

Stratosfy Beacon-IO devices interface with the Stratosfy’s mobile application used by the workforce to certify they are in precise predefined locations within a property while performing their duties.
The Stratosfy’s mobile app can detect Stratosfy Beacon-IO devices when within the communications range. The app then reports the presence of the service professional and the service activities performed by the service professional to Stratosfy’s cloud, along with precise and reliable location data and the timestamps automated collected during the interaction between the Stratosfy Beacon-IO device and the smartphone.
Technical Specifications
Model Number : STSFY-BT-IO02
| RF Specifications | |
| Standard Protocol | Bluetooth 5 |
| Frequency band | 2.4GHz |
| Number of Channels | 3 Primary, 37 Secondary |
| Output | power 0dBm (default power upon shipping), Programmable -40dBm to +8dBm |
| Modulation | GFSK |
| Antenna / Gain | Chip antenna, 1.1 dBi |
| Mode of Operation | half-duplex |
| Data Rates | 1 Mbit/s |
| Features | |
| BLE Application Supported | iBeacon, Stratosfy Telemetry |
| Processor Type | 32-bit ARM Cortex-M4F @ 64MHz |
| Memory | 1 MB Flash |
| Physical | |
| Dimensions in mm (Length x Width x Height) | 94.5 x 43 x 19 |
| Mounting Method | Wall Mounted with 3M Double-Sided Adhesive (included) |
| Housing Material | ABS Plastic for Housing, Rubber for Gasket |
| Color | White |
| Weight | 54 grams |
| Battery | |
| Type | 3V / 950mAh – CR2477 Lifetime (depending on utilization) 18-24 months expected, dependent upon environmental operating conditions, device configuration, communication frequency |
| Chemical and Mechanical Resistance | |
| Water | Water Resistant, IP65 |
| Withstands Exposure To | UV Resistant, Impact Resistant |
| Thermal | |
| Storage | 32°F to 86°F (0°C to +30°C) |
| Operating Temperature | -4°F to +140°F (-20°C to +60°C) |
| Other | |

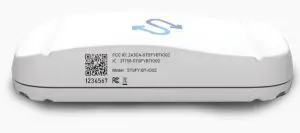

| Standards | FCC ID: 2A3CA-STSFYBTIO02 IC: 27758-STSFYBTIO02 |
| Box Size | 10 pcs. |
| Warranty | 1 year |
Accessories

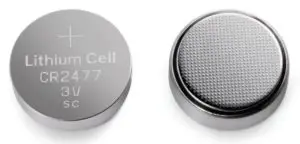

Replacement CR2477 batteries – 3V / 950mAh capacity coin cell CR2477 batteries

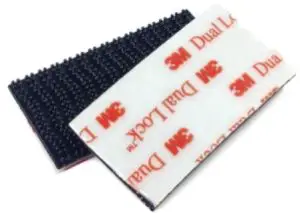

Velcro tape/3M tape – 3M Velcro hook and loop dual lock tape 1 inch squares
FCC statements
“This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.”
“Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.”
IC Statements
“This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.”
Health Canada RF Exposure Warning Statement
“This device complies with Health Canada’s Safety Code. The installer of this device should ensure that RF radiation is not emitted in excess of the Health Canada’s requirement. Information can be obtained at http://www.hc-sc.gc.ca/ewhsemt/pubs/radiation/radio_guide-lignes_direct/index-eng.php
For more information, contact [email protected]
Website : www.stratosfy.io
