Blitzwolf Usb Rgb Tv Strip Light Kit Bw-lt32 User Manual

User Manual
BW-LT32

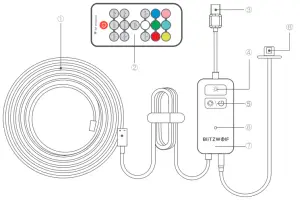

At A Glance

Package Includes:

0.5M Light Strip X2, 1M Light Strip X1, Strip Controller X1, Color Sensor X1, Remote Control X1, User Manual X1

Specification

Model: BW–LT32
Input: OC:5V/1A
Interface: USE
LED Color: RGB
LED Quantities: 60Pcs SMD5050 (2m)
Waterproof: Strip Light IP65; Controller: IP20
Color Sensing Mode: Supported
Working Temperature: –20′-55
Lifespan: 500OOH
Certificate: CE/ROHS/FCC

Operation

Strip Controller Introduction

1. Tap the button to turn on the light.
   Mode 1. Automatically capture and display color on screen,
   Mode 2: Step change model(light green,
   ice blue, pink, white, green, red, blue)
   Mode 3: Slow step-change mode (red, blue, light green, ice blue, pink, white, green
   Mode 4: Ice Blue
   Mode 5: Pink
   Mode 6: Purple
   Mode 7. Warm Yellow
2. Long press “” 2–3s to turn off the light.
3. Press to adjust the current color brightness.

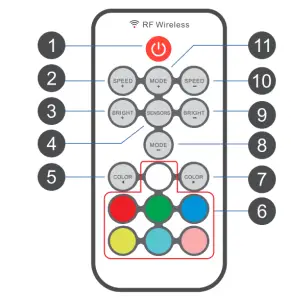

RF Controller Introduction

Attention

1. Change the stacking direction of the light strip through the connector to avoid bending.
2. The light strip connector is firmly and correctly connected to the light strip, and the ±” and_” directions are consistent.
3. Connect the color sensor jack to the controller to achieve screen color synchronization
4. Install and fx the color sensor vertically on the left or right side of the screen.
5. The US8 port of some brand TVs has output limitations, so you can use an adapter to power the light bar.

Company: Lotus NL B.V.
Address: Koningin Julianaplein 10, le Verd, 2595AA, The Hague,
The Netherlands.
E-mail: [email protected]
Tel: +31644168999
