Honeywell AlarmNet CELL-ANTST Indoor Fixed Le
General
The Communication Module uses an internal dual band cellular antenna. In most cases, this antenna will provide Sufficient signal strength for a successful installation. The Honeywell Home lIndoor Fixed Length Antenna should be used in installations where moving the antenna to a higher point within the building will provide a better signal strength. Installation Note: For best signal strength, maintain at least 12 inches of clearance between the communication module and steel -beams, HVAC ducts, metal studs, steel roofs or roofs, exterior walls with metalized insulation or aluminum siding and other large metal objects.
Kit Includes

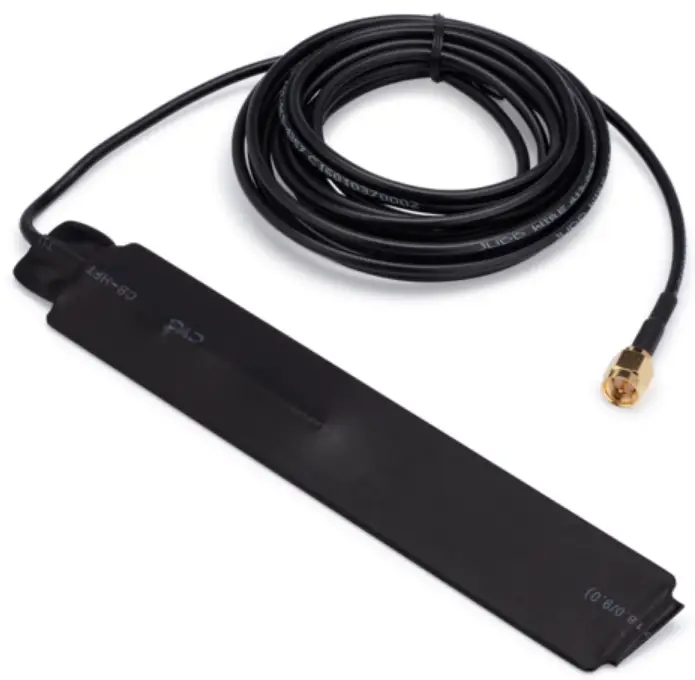

- Antenna with cable
- Antenna accessory pack
- Hardware
Compatible Modules: Lyric-3G, Lyric-COMA and Lyric-3GC.
Indoor Antenna
- The antenna is not weatherproof, and must be installed indoors and mounted vertically while maintaining 12 inches of clearance from large metal objects. Install the antenna as follows:
- Find a suitable location that will allow the antenna to be mounted vertically.
- Remove power; refer to the radio communication module installation guide for Replacing the Module.
- Connect the short adapter cable to the antenna cable.

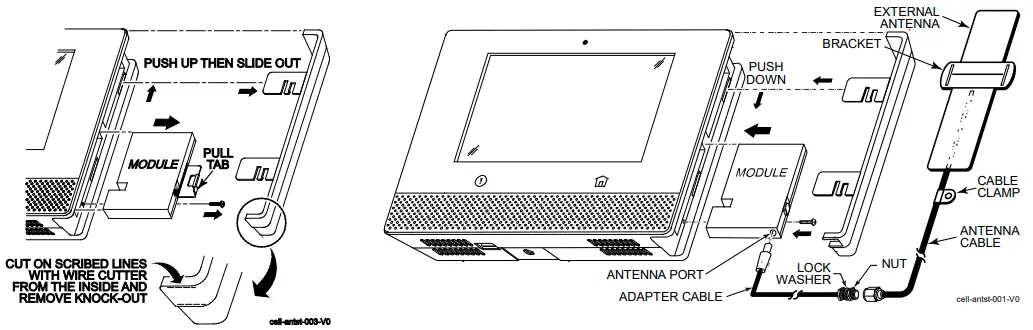

- Using wire cutters, remove the knock-out area as shown below.
- Plug the end of the adapter cable into the module’s external antenna port and route the cable as shown.
- Refer to the Cellular Information screen on the Lyric controller to make sure the displayed signal strength is adequate. See the radio communication module installation guide for specific ranges.
- Permanently mount the antenna vertically using the included hardware.
Lyric-3G/ Lyric-CDMA / Lyric-3GC Communication Module

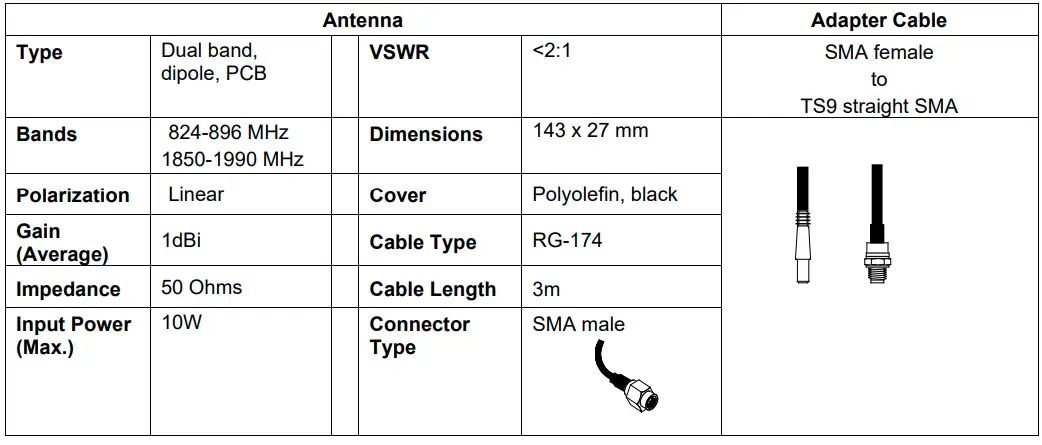

Specifications
RF Exposure
Warning-The internal or external antenna(s) used with this product must be installed to provide a separation distance of at least 7.8 in. (20 cm) from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures.
IMPORTANT NOTE ABoUT EXTERNAL ANTENNAS
fan extermal cellular radio antenna is used, the antenna may be installed or replaced ONLY by a professional installer.
TO THE INSTALLER
For the communication module, the external antenna must not exceed a maximum directional gain (including cable loss) of 3.2 dBi at 850 MHz and 2.3 dBi at 1900 MHz.
