Honeywell AlarmNet CELL-ANTHB Antenna Kit
GENERAL INFORMATION

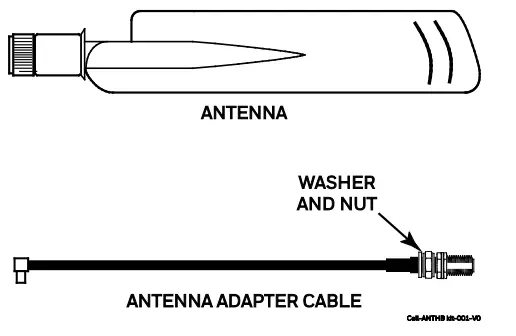

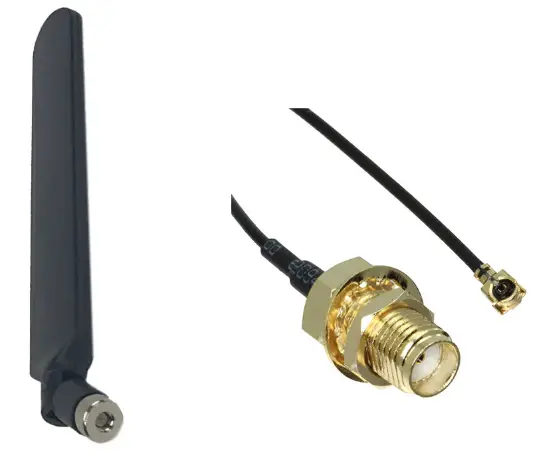

The antenna included with CELL-ANTHB supports all frequency bands for LTE, 4G, 3G, and CDMA in North America and is compatible with all cellular communicators used with VISTA and LYNX PLUS controls.
NOTE: This antenna is for indoor use only
ASSEMBLY

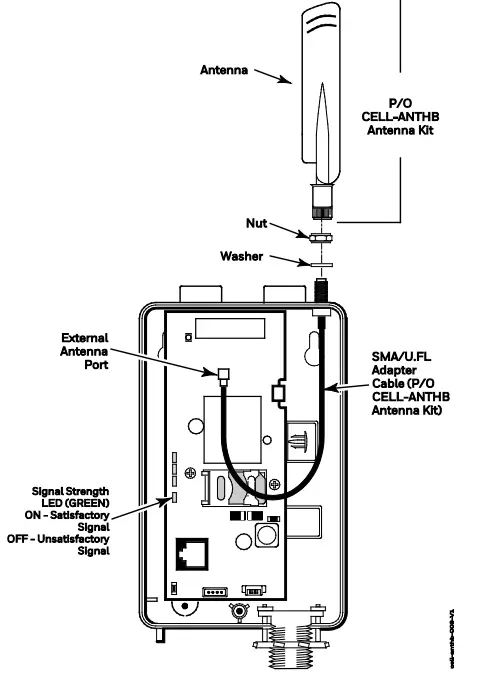

- To assemble, refer to the figure below and perform the following steps:
- NOTE: Refer to the communication module’s Installation and Setup Guide for mounting., wiring and programming information.
- Remove the front cover from the communications module.
- Install the through-hole connector of the adapter cable in the top hole on the enclosure back of the communications module. Secure with lock washer and nut.
- Snap the other end of the adapter cable in the external antenna port of the communications module.
- Attach the antenna to the connector on top of the housing. Replace the front cover

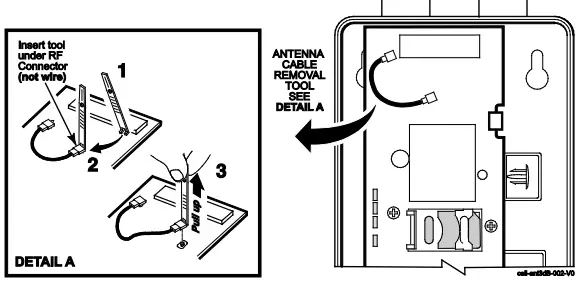

Antenna Cable Removal Tool
- Slip the Antenna Cable Removal Tool (p/n 700-03513) under RF Cable connector as shown.
- Pull directly upwards until the connector detaches from the module’s receptacle as shown in Detail A. (This cable is no longer needed.)
- Repeat step 1 and 2 to disconnect the cable from the communication module. This cable is no lonaer needed.)
Cellular Communication Module

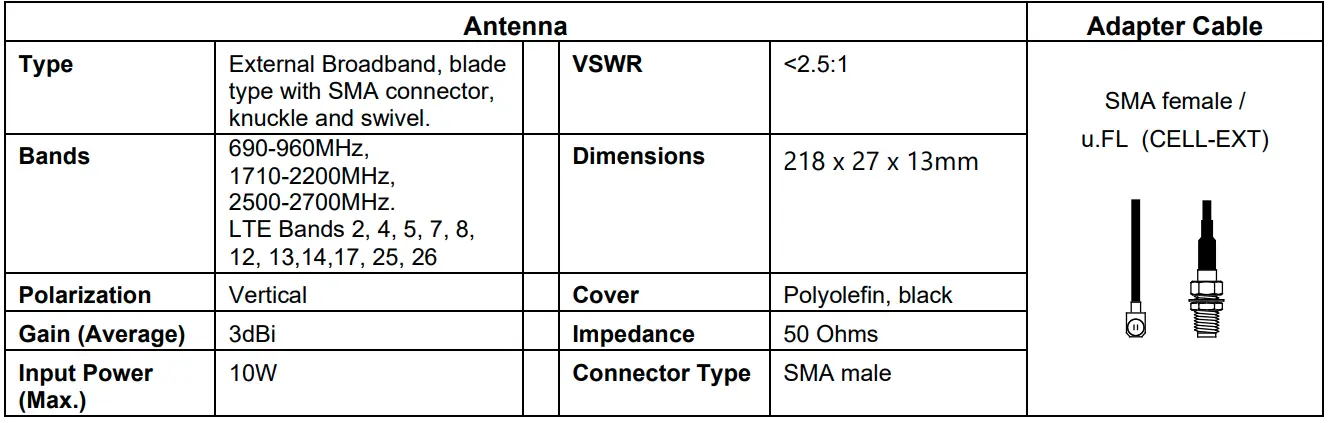

SPECIFICATION
RF EXPOSURE
Warning-The antenna(s) used for this device must be installed to provide a separation distance of at least 7.8 inches (20 cm) from all persons and must not be
co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC and ISED multi-transmitter product procedures.
IMPORTANT NOTE ABOUT EXTERNAL ANTENNAS
If an external cellular radio antenna is used, the antenna may be installed or replaced ONLY bya professional installer.
TO THE INSTALLER
For the communication module, the external antenna must not exceed a maximum directional gain (including cable loss) as stated on the
FCC Grant of the integrated module.
The product should not be disposed of with other household waste. Check for the nearest authorized collection centers or authorized recyclers. The Lcorrect disposal of end-of-life equipment will help prevent potential negative consequences for the environment and human health.
SUPPORT & WARRANTY INFORMATION
For the latest documentation and support, please go to: www.resideo.com
