Tp-link M7350 Lte-advanced Mobile Wifi Installation Guide

tp-link M7350 LTE-Advanced Mobile WiFi

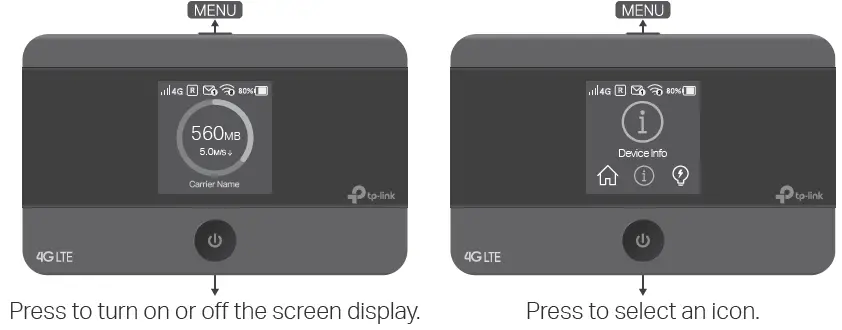

Screen Display

Home Screen
Press to enter the menu screen.

Menu Screen
Press to switch between icons.

The screen display will automatically turn off after being idle for a while. To turn it on again, press the MENU button.

Install the SIM Card and Battery

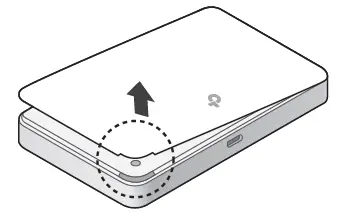

• Remove the back cover.

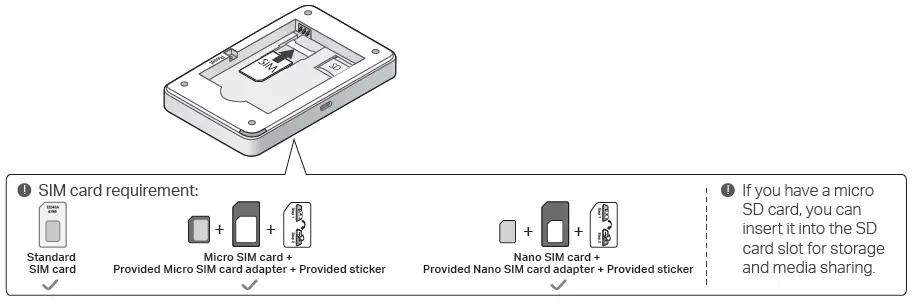

• Install your SIM card.

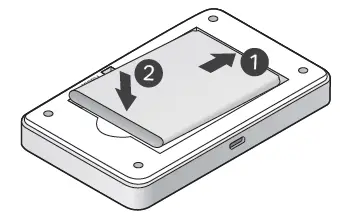

• Install the provided battery

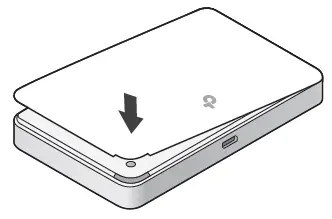

• Replace the back cover.

Connect to the Internet

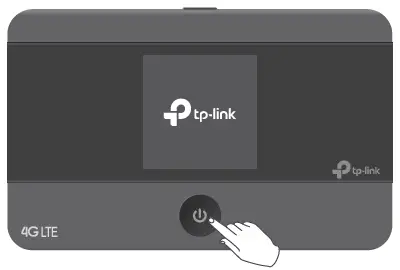

• Power on the Mobile Wi-Fi.
  Press and hold the Power button until the welcome screen appears.

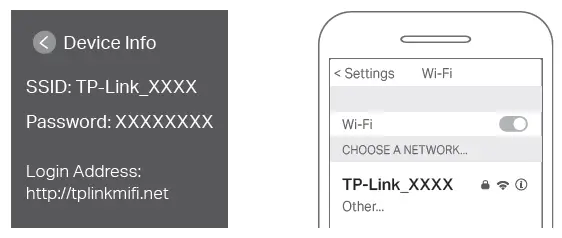

• Connect your smart device to the Mobile Wi-Fi.
  To view the SSID and password, press the MENU button to switch to the Device Info icon, then press the Power button to enter the screen.
• Enjoy the internet!
• If you cannot access the internet, refer to FAQ > Q1.
• By default, Power Saving is enabled and the Mobile Wi-Fi will turn off Wi-Fi when no wireless devices are connected to it for 10 minutes.
  To resume the Wi-Fi connection, press the MENU button.

Managing Your Mobile Wi-Fi

Manage your Mobile Wi-Fi using any of the methods below. You can customize Wi-Fi settings, block Wi-Fi devices, and more.

tpMiFi App

1. Get the tpMiFi app from App Store or Google Play, or by scanning the QR code.
2. Connect your wireless device to the Mobile Wi-Fi.
3. Launch the tpMiFi app and create a password to log in.

Web Management Page

1. Connect your wireless device to the Mobile Wi-Fi. If it is a computer, make sure it is set to obtain an IP address automatically.
2. Launch a web browser and visit http://tplinkmifi.net or http://192.168.0.1. Create a password to log in.

For technical support, replacement services, user guides, and other information, please visit https://www.tp-link.com/support, or simply scan the QR code.

Charging Your Mobile Wi-Fi

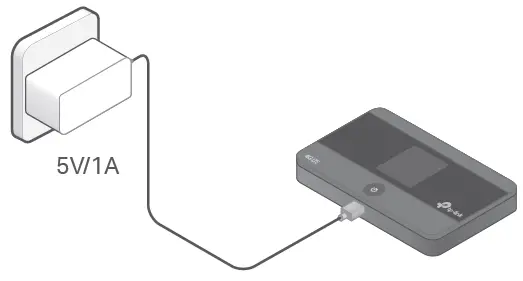

Method 1
Via a Wall Outlet (Recommended)

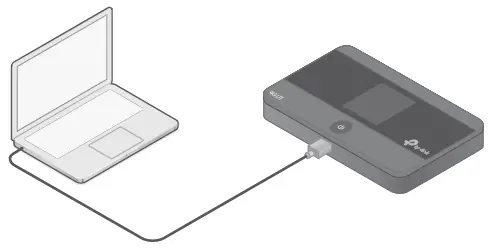

Method 2
Via a Computer

• When the battery icon disappears, the Mobile Wi-Fi is fully charged.
• The power adapter is not provided by TP-Link.

FAQ (Frequently Asked Questions)

Q1. What should I do if I cannot access the internet (one of the following messages appears on the home screen)?
A1. PIN Required

• Your SIM card is PIN protected. Log in to the web management page (http://tplinkmifi.net) on your phone, then enter the PIN provided by your mobile carrier.

A2. No SIM Card

• Power of the Mobile Wi-Fi and reinstall your SIM card.

A3. No Service

• Verify that your SIM card is an LTE or WCDMA SIM card.
  Verify that your SIM card is in your carrier’s service area and has sufficient credit.
• Log in to the web management page (http://tplinkmifi.net) on your phone. Go to Dial-up, tap View profile details, and verify that the parameters (i.e. APN, username, and password) provided by your mobile carrier are correct. If they are not correct, return to the Dial-up page and create a new profile with the correct information.

A4. icon

• Enter the Menu screen, go to Data Roaming, and turn on Data Roaming.

Q2. How do I restore the Mobile Wi-Fi to its factory default settings?

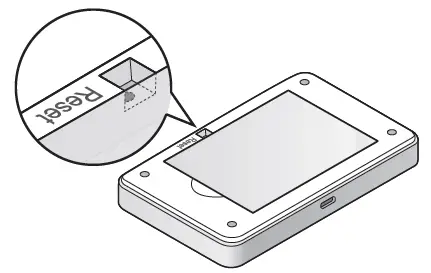

A. With the Mobile Wi-Fi powered on, remove the cover, then use a pin to press and hold the Reset button until “Power Off” appears on the screen.

Note: Restoring the device to its factory defaults will clear all your settings.

Safety Information

• Keep the device away from water, fire, humidity, or hot environments.
• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
• Do not use devices where wireless devices are not allowed.

CAUTION!

• Avoid replacement of a battery with an incorrect type that can defeat a safeguard.
• Avoid the disposal of a battery in a fire or a hot oven, or mechanically crushing or cutting of a battery, which can result in an explosion.
• Do not leave a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas. Do not leave a battery subjected to the extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
  CAUTION!
• Risk of explosion if the battery is replaced by an incorrect type.
