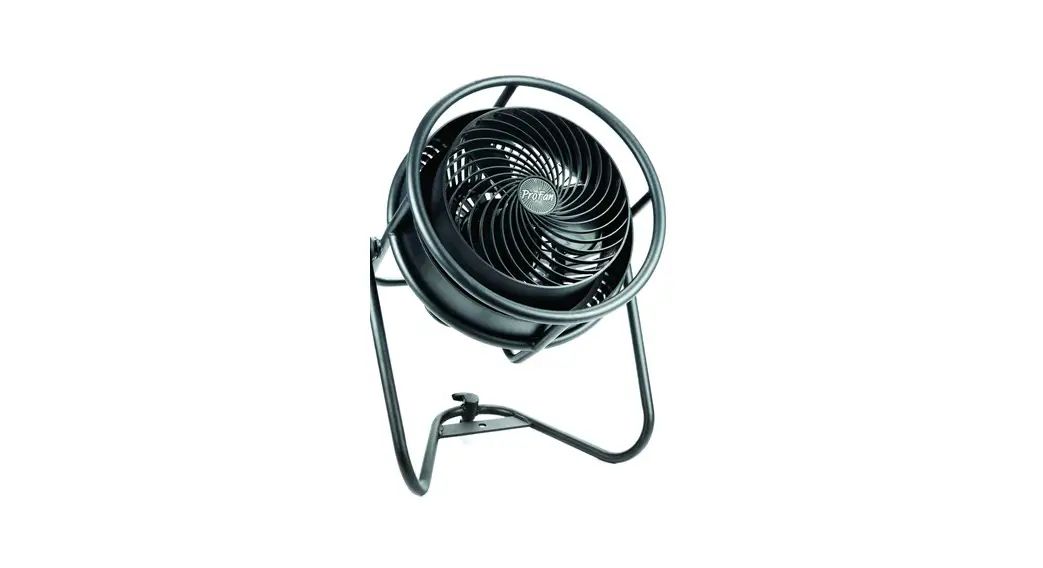

PROFESSIONAL VARIABLE SPEED FAN
DMX/MANUAL CONTROL
Powerful Variable Speed Professional Fan with Remote for DMX or Manual Control
ProFan is a powerful and versatile fan designed for a variety of professional applications: Studios, Theatres, Theme Parks, Touring, Photographic and more. ProFan is perfect for filling large areas with smoke and haze, creating special wind effects, blowing confetti, snow or bubbles, cooling performers and general ventilation.
- Back P ack remote control with DMX and Manual Modes.

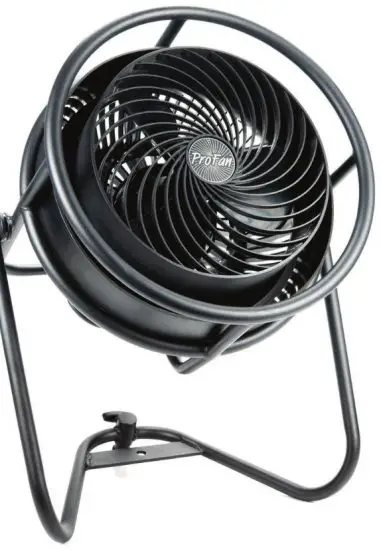

- Versatile yoke for floor mount, stand mount, or overhead rigging.
- 100-240VAC power input.
- Powerful, concentrated air flow.
- Compact. Rugged. Lightweight.
Worldwide Exclusive Distribution
The Versatile Vortex Machine!

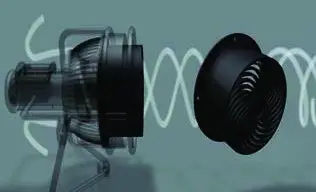

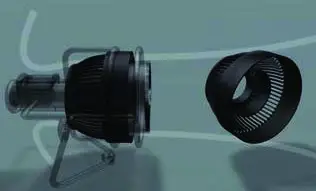

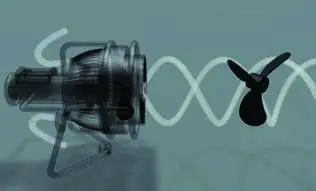

 11” deep-pitch blades maximize the volume of the air moved with each revolution. |  Special grille design spirals the air stream for greater impact over greater distances. |  The cylindrical air duct encompassing the blades creates a narrow, focused “beam” of air. |
| Specifications | |
| Power | 100-240VAC, 1200W (max) |
| Modes | DMX and Manual |
| One-Touch Turbo Function | 0-3500RPM within 5 sec. |
| Air Volume | 1700CBM/HR |
| Wind Speed | 0-60KM/HR variable |

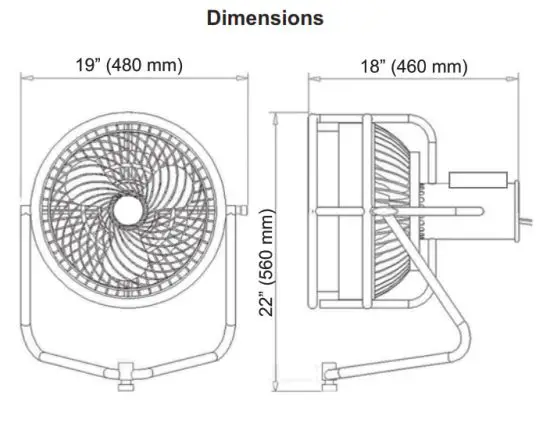

| Dimensions | 19 x 22 x 18 in [480 x 560 x 460 mm] |
| Weight | 27.6 lb [12.5 kg] |

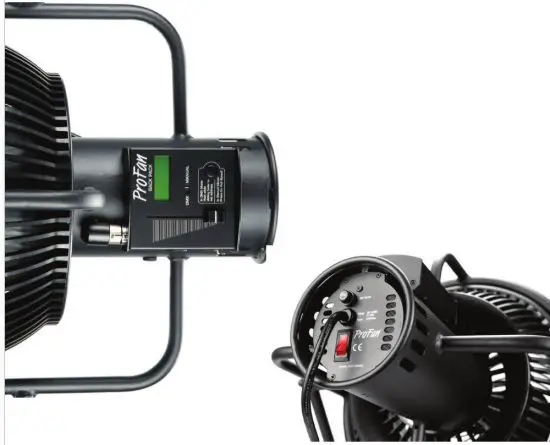

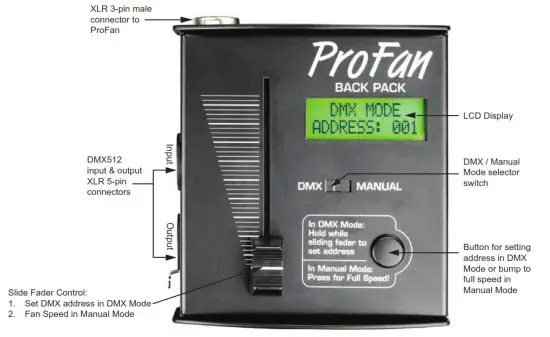

Back Pack Controller

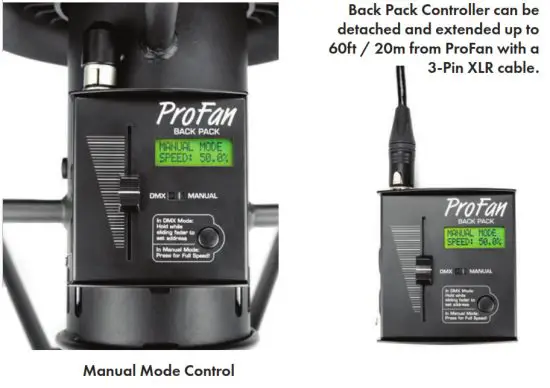

Manual Control Options

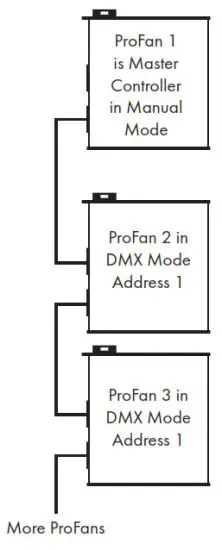

Manually controlling daisy-chained fans
In Manual Mode the DMX512 output connector automatically transmits the speed setting on address 1.
Manually control a bank of ProFans by setting the first unit to Manual Mode and all sebsequent units to DMX Mode address 1.
The first controller will control all of the ProFans.

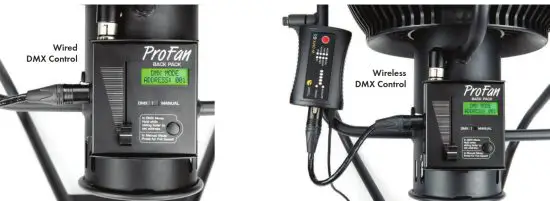

DMX Control Options
| [email protected] | Los Angeles +1 818.899.8818 | London +44 (0)20.8574.9700 | tmbwww.tmb.com | New York +1 201.896.8600 | Beijing +86 10.8492.1587 | Toronto +1 519.538.0888 |
© 2021, TMB. All rights reserved. LITPROFANA4 Effective: 14 April 2021
Specifications are subject to change without notice. This information supersedes all previously supplied information.
