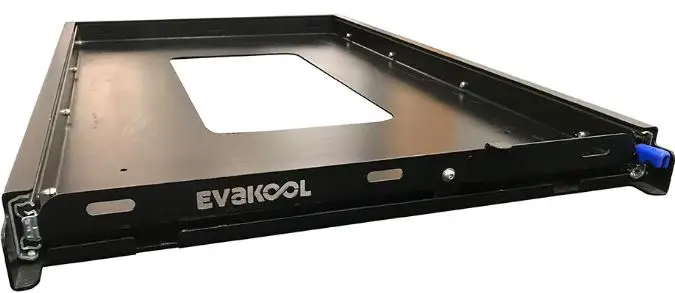

Evakool Slide-EKFS-SML Heavy Duty Fridge
PARTS LIST
- Small Slide: 773X511X69mm
- Large Slide: 953X598X69mm
- Slide Out: 75cm
- Mounting Kit:
- 6x M6 Washers
- 6x M6 Tee Nuts
- 4x M6x 20mm Bolts
INSTALLATION GUIDE
- Open the slide by depressing the lock lever on the right, then pull slide forward to reveal the fixing holes in the side rails.
- Drill six 7mm holes for the Tee Nutes to be fitted into.
- Insert the Tee Nuts into the holes ensuring the nuts are upright and square to the hole and knock them in.
- Mark the six drilling points through the slide fixing holes with a permanent marker.
- Insert the 6 x M6 Tee Nuts supplied into the six holes.
- Position the fridge slide on the timber top where required. Using 4 x M6 bolts to fix on.
IMPORTANT NOTES
- It is suggested to fit the fridge slide to a minimum 12mm thick timber top.
- To tie down the fridge on the slide, use the 4pce nylon strap, tie-down kit supplied.
- The slide must be securely and evenly bolted down to the floor of the vehicle or to wherever the slide is to used.
- Under no circumstances can the slide be used other than when it is fixed down correctly on a smooth even surface with no contortion of the frame.
- The sliding tray is activated by depressing the right-hand side lever on the front to pull forward and lock in; heavily pushing the lever without depressing it will damage the liver.
- Ensure that the tray firmly locks into place when returning the tray to its inward position.
- The slide is designed to carry fridges stocked up to 80kg in total. NOT recommended for commercial use and no warranty applies if used so.
