ACS-1S00 MR-II
PROFESSIONAL ACTIVE COLUMN SPEAKER SYSTEM

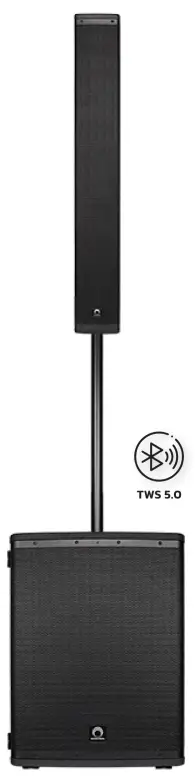

ACS-1500 MK II Series Professional Active Column Speaker System which can cover the usage area from small to large Designed for hi-end professional sound performance, especially for frequency response up to 40Hz -18KHz ± 3dB, Power maximum 1800 Watts Amplifier Class D with DSP processor S Preset for optimum performance. And can stream wireless music via TWS Bluetooth Support ideal life sound concert, event, shopping mall, meeting room – training, fitness, restaurant, hotel banquet room.
This series includes ACS-1500S-MK II (subwoofer), ACS-1500C-MK II (column speaker)
FEATURE
- Subwoofer Component: 15″, 3″ voice coil
- Satellite Components: 4″ X 8 Full Range Speaker
- Dispersion Angle (H x V): 80 x 20 Degree.
- Frequency response: 40Hz-18KHz ±3dB
- Max. SPL / (Peak): 125dB/134dB
- Power RMS: 900W / 1800W (MAX)
- Built-in Class D Amplifier
- Built-In DSP Processor Mode: DEFAULT, MUSIC, DANCE, SPEECH, USER
- Built-in Media player: TWS Bluetooth 5.0 (True Wireless Stereo)
- Operating voltage AC 220 – 240V, 50/60Hz
SPECIFICATIONS
| Model | ACS-1500S-MK II (subwoofer) | ACS-1500C-MK II (column) |
| Transducer | Subwoofer Components : | Satellite Components |
| 15″, 3″ voice coil | 4″ X 8 Full Range Speaker | |
| Frequency Response | 40Hz – 180Hz ±3dB | 180Hz – 18kHz ±3dB |
| Rated Power | 600W / 1200W (MAX) | 300W / 600W (MAX) |
| Amplifier | Class D | |
| Sensitivity | 95dB lm/1W | 96dB lm/1W |
| Maximum SPL | 125dB/134dB (PEAK) | 125dB/134dB (PEAK) |
| Nominal Impedance | 40 | 4 C) |
| Built-in DSP Processor | S Mode Presets (DEFAULT. MUSIC, DANCE, SPEECH, USER) | |
| Media player | TWS Bluetooth S.0 (True Wireless Stereo) | |
| Dispersion Angle (H x V) | I 80° X 20° | |
| Connection | ||
| Line Input | 1 x Combo XLR or 1/4″ Jack (female) | |
| Line Output | 1 x XLR (male) | |
| Net Port | 2 x RS485 (RJ45) | |
| Speaker Port | 1 x Speakon (OUT) | 1 x Speakon (in) |
| General | ||
| Operating voltage | AC 220 – 240V, 50/60Hz | |
| Dimensions (H x W x D) | 570 x 430 x 520mm | 980 x 135 x 135mm |
| Net Weight | 27 Kgs. | 11 Kgs. |
