Chefmaster Heb082 1000watt Microwave Oven Instruction Manual

Chefmaster 1000watt Microwave
Instruction Manual
Models
HEB082 –1000watt Microwave oven

Thank you for purchasing your Chefmaster Microwave. To make full use of the product please read this manual carefully before using the product and keep it safe for future reference.

Safety Tips

• If you find any damage when the product is unpacked, contact your Chefmaster supplier within 24 hours of receipt of goods
• Always position on a flat stable surface
• Repairs should always be carried out by a qualified technician
• Do not use this product outside
• Do not carry when hot
• Always switch off and unplug the unit before cleaning
• Move by holding the product by the base
• Always store flat and do not store products on top of it
• If the power cord becomes damaged it must be replaced by a qualified technician
• This product is not designed to be used by persons with reduced physical or mental capabilities, lack of experience or knowledge, unless they are given suitable supervision, this includes children.

Pack Contents

• 1 x Chefmaster Microwave

Before Use

• Remove all packaging including all protective plastic, from your Chefmaster Microwave
• Position on a flat, stable surface
• Clean with warm water and a soft cloth
• Plug your Chefmaster Microwave into the mains
•  The microwave will now be ready to turn on

Cookware

• Heat-resistant glass – Yes
•  Heat-resistant ceramics – Yes
•  Microwave safe cookware – Yes
•  Kitchen paper – Yes
•  Metal tray/rack – No
•  Aluminum foil/foil containers – No
•  Nonheat resistant glass – No

Oven Parts & Controls

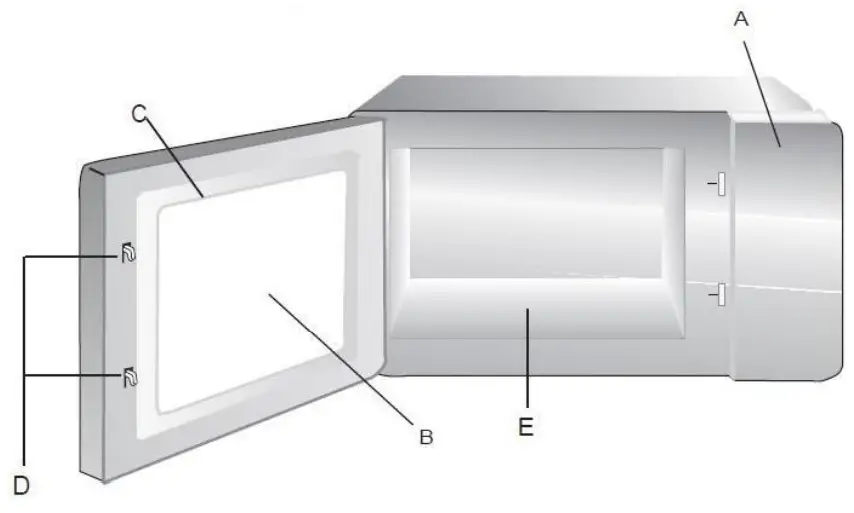

Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories:

(A) Control panel
(B) Observation window
(C) Door assembly
(D) Safety interlock system
(E) Ceramic board Door Safety Lock System

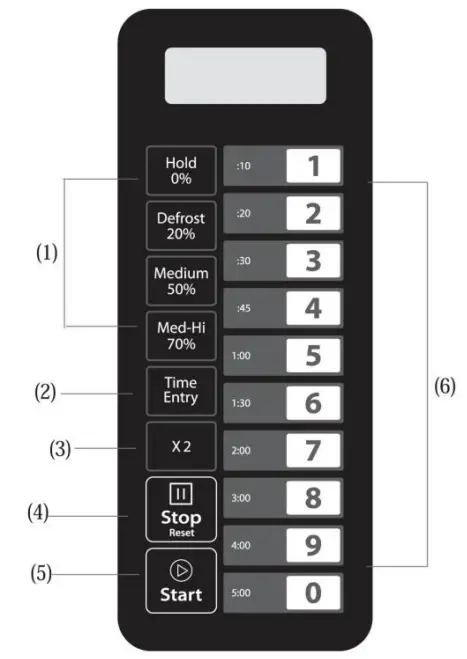

Control Panel and Features

1. Power Buttons
2. Time cook Button
3. X2 Button
4.  Stop/Cancel Button
5. Start Button
6. Number Button

Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken doors. Do not install if the oven is damaged.
Cabinet: Remove any protective film found on the microwave oven cabinet surface.

Installation

• Select a level surface that provides enough open space for the intake and/or outlet vents (Figure1).

A 10-cm spacing should be kept between the appliance and right and back walls, and a 30-cm spacing kept on the top. Never dismantle the appliance’s feet, nor block the air intake and exhaust opening. The left side must be open.

• Blocking the intake and/or outlet openings can damage the oven.
•  Place the oven as far away from the radios and TV as possible. The operation of a microwave oven may cause interference to your radio or TV reception.
• Plug your oven into a standard household outlet. Be sure the voltage and the frequency are the same as the voltage and the frequency on the rating label.
• Warning: The plugs socket, electric appliances, or appliance which are liable affected by heat and moisture should be kept away from any vents on the oven.

Operation Instruction

Five power levels are available

Appendix. (A) User Options
Items bolded below are the default values

Appendix. (B) Default Cook Times
The oven shall ship with the following Preset Cook Times unless otherwise noted in the product specification

1. Power Up
” _ _ _ _ ” displays when the oven is electrified for the first time. If the” “button is pressed, the oven will change to idle mode. Note: Under idle mode, no button can be pressed.

2. Idle Mode

• The oven shall enter idle mode after a set of seconds has expired in Ready Mode without a keyboard press or a door open and close.
  The number of seconds is determined by the keyboard Timeout Window, set by User Option 4.
• During idle mode, LED is blank. And there shall be no oven activity.
• Opening and then closing the oven door, the oven will exit the idle mode and into ready mode.

3. Ready Mode

• Opening and closing the door while the oven is in Idle Mode will put the oven into Ready Mode.
•  During Ready Mode, “0:00” displays.
•  From the Ready Mode, the oven can go to almost all of the other modes.
• Only the fan and lampwork.

4. Door Open Mode

• While the door of the oven is open, the oven shall be in Door Open Mode.
•  During this mode, LED is blank. And the fan and oven lampwork.
•  When the door is closed, if User Option OP: 60 is selected and the oven was running a manual or preset cook cycle, the oven shall enter Pause Mode. In all other cases, the oven shall return to Ready Mode with User Option OP:61 set. Opening and closing the door will clear out any information about a Manual or Preset Program which was running.

5. Pause Mode

• While in Manual Cook Mode or Preset Program Cook Mode, if the door is open or closed, or if the “ ” pad is pressed, the oven will enter Pause Mode.
• While paused, LED will display the remaining cooking time.
•  Only the fan and lampwork.
•  Pause Mode will expire back to Idle Mode in the exact fashion as Ready Mode, dependent on User Option 4. Additionally, if the “ ” button is pressed, the oven shall immediately enter Ready Mode. OR if press the” ” button, the oven will go into working mode.

6. Manual Cook Entry Mode

• While the oven is in the Ready Mode, pressing the “ ” pad on the keyboard will put the oven into Manual Cook Entry Mode.
• During this mode, “00:00” displays
• If you press the button to select power level, LED will display the related power. If the same button is pressed twice, the power will change to PL10. If no power is chosen, “PL10”  is the default.
• Only the fan and lampwork.
• During the setting process, press “ ” to enter Manual Cook Mode.
  Press “ ” to enter Ready Mode.

7. Manual Cook Mode

• Pressing the “ ” pad will cause the oven to begin Manual Cook Mode.
•  During this mode, the remaining cooking time displayed. The fan and oven lamp will work.
•  When the cooking program finishes, the oven will enter the End of Cook Cycle Mode.
  If you press the” ” button under this mode, the oven will enter Pause Mode.

8. End of Cook Cycle Mode

• After the time has expired in a Manual Cook Mode, or a Preset Program Cook Mode, the oven shall go into The End of Cook Cycle Mode.
• During this mode, “End” displays.
• If either User Option OP:11 or “OP:12″ is selected, the oven shall continue to sound until the user acknowledges this by either opening and closing the door or pressing the ” “pad. If User Option OP:10 is selected, after the 3 seconds beep, the oven shall go into Ready Mode.

9. Preset Program Cook Mode

• This mode allows the cooking of food items through a one-pad touch operation. While in Ready Mode, pressing one of ten digit keys on the keyboard will cause the oven to run the Preset Program associated with that key.
• LED displays the remaining cooking time. If it is multi-stage cooking, the total remaining cooking time displays not a particular stage cooking time.
• When the cooking program finishes, the oven will enter the End of Cook Cycle Mode. If you press the” ” button under this mode, the oven will enter Pause Mode.

10. On the Fly Cooking

• While the oven is cooking or under Pause Mode, if User Option OP:51 is selected, press the number buttons, and the preset cooking program will start automatically.
•  LED displays the remaining cooking time.
• When the cooking program finishes, the oven will enter the End of Cook Cycle Mode. If you press the” ” button under this mode, the oven will enter Pause Mode.

11. Programming Mode
This mode allows the user to assign cook times and power levels to the one-touch button.

• Open the door and press “1” for 5 seconds, the buzzer will sound once, and enter Programming Mode.
• “ProG” displays.
• Press any number, 0 to 9, and the LED will display the saved time, then you can input the time you need.
• Press to input the power level. LED will display the related power. If the same button is pressed twice, the power will change to PL10. If no power is chosen, “PL10” is the default.
• To change the cooking factors: If pressing “X2”, the LED will display “CF: XX”. The default factor is 80%. “CF:80” displays. If you need to change the cooking power, just press one of the number buttons to set it.
• After setting the time and power, press “ ” in the 30s, and the cooking program will be saved. When the program is saved, “ProG” displays.
• If all the cooking time exceeds the MAX. time User Option 7, then press “ ” to save the program, the buzzer will sound three times briefly to tell you the time is no use. And then the LED turns back to show “ProG”. The time set before will have no change.
• Close the door, the oven will turn back to Ready Mode. If press the” ” button during the setting process, the oven turns to Door Open Mode. The program that is not saved will be lost. If there is a program saved as a memory procedure, press the related number button, and the saved program will start. If no saved program, the buzzer will alarm when pressing the number button and it will not work. For example: set the program as memory cooking.

Program: Power level PL7 and cooking time 1 minute and 25 seconds.
Step 1: In ready state, press the number button “1” for 5 seconds, and “ProG” displays.
Step 2: Press the number button “3”, and the program will be saved in “3”.
Step 3: Press number buttons “1”, “2” and “5” to input the cooking time.
Step 4: Press the” ” button, and the” PL7″ displays. Setting finished.
Step 5: Press “ ” to save. When using the program next time, just press “3”, and the related program will start.

Note:
(1). If the electricity is cut off, the saved program will not lost.
(2). If the program needs to reset, just repeat the above steps.
(3). If press “at the last step, it will turn back to Ready Mode. The setting will be no use.

12. Double Quantity cooking

• Under the ready state, press the “X2” button and then press the number of buttons 0-9 in 5 seconds, the oven will start cooking with the quantity preset cooking time.
•  Press “X2”, “doub” displays. When pressing the number buttons, LED will display the quantity preset time. For example, the number button “5” and its preset time is 1 minute.  Then press “X2”, the time will change to 1:00*(1+0.8)=1:48.
•  When the cooking program finishes, the oven will enter the End of Cook Cycle Mode.

13. Stage Cooking Programming

This allows the user to cook food items at the combination of various Power Levels.

• Three stages can be set at most under cooking mode or memory mode. After setting the power and time for the first stage, press ” ” to set the second stage. And the same step to set the third stage.
•  When setting the second or the third stage, press ” “, “S-2” or “S-3” displays.
•  Press the” ” button to start cooking.
  Example: To set three stages as memory mode. The first stage is PL7 and the time is 1 minute 25 seconds. The second stage is PL5 and 5 minutes and 40 seconds. The steps are:

(a). Ready state, press “1” for 5 seconds, and LED displays “ProG”.
(b). Press the number buttons “3” to save the program in “3”.
(c). Press “1”, “2”, “5” to input the cooking time. “1:25” displays.
(d). Press “ “, “PL7” displays.
The first stage is finished.
(e). Press “ “, LED displays “S-2”.
(f). Press “5”, “4”,”0″ button, “5:40” displays.
(g). Press “ “, “PL5” displays.
The second stage is finished.
(h). Press “ ” to save the program.

14. User Option Mode

• Open the oven door and press “2” for 5 seconds. The buzzers sound once and enter this mode.
• LED displays “OP: – -“.
•  Press any number button to enter the related mode setting. For example: to set the voice of the buzzer to medium. Press ” 2 “, “OP:22” displays. If you want to change, keep  pressing “2”, LED displays “OP:20”, “OP:21″,”OP:22″,”OP:23”, “OP:20” …..in cycle.
•  Press “ ” to save the current setting. After saving, the “OP: – -” display again.
• During the setting process, press “ ” to enter Door Open Mode. Close the door and enter Ready Mode.
• If the” ” button is not pressed at the last step, the program cannot be saved but stay at the previous way.

15. Service Mode

• Open the oven door and press “3” for 5 seconds to enter service mode.
•  LED displays “SErU”.
•  To check the times of closing or opening the door, just press the number button “1”, LED will display the times.
•  Press “ ” and then press the number button “4” in 3 seconds, and the message will be canceled. “4-CL” displays.
•  Press “ ” to enter Door Open Mode. Close the door will enter Ready Mode.

16. Inquiry Function

• During the microwave cooking process, press “ ” to check the power level. LED displays the power for 3 seconds then turns back to the previous state. It is available for multi-stage cooking.

17. Factory-default setting

• In power up and ready mode, press ” ” and ” o ” to the factory–default setting.

Cleaning & Maintenance

• Before cleaning, disconnect the Microwave from the electricity supply.
• Once the unit has cooled completely, wipe with a damp & soapy cloth.
• DO NOT submerge the Microwave in water or use water sprays to clean it
•  Always clean your Chefmaster Microwave daily
•  Use a vacuum cleaner to clean the air intake & exhaust vents

Troubleshooting

Transportation and Storage
Please handle your Microwave with care to prevent any damage to the unit and internal parts. The Microwave should be stored somewhere which is ventilation and non-corrosive gas.
Do not store any flammable objects near the equipment.

Technical Information

HEB082 – Microwave oven
Voltage: 230v~50Hz
Power: 1000watt
Weight: 14.7 Kgs
Dimensions : 511x432x311mm

• Chefmaster Microwave are supplied with a 3-pin plug and lead with a 13 amp fuse
•  The appliance must be earthed
•  If in doubt contact a qualified electrician or your Chefmaster distributor

Disposal

Under WEEE regulations this product must not be disposed of as household waste. To prevent damage to the environment and humans this product must be disposed of in an approved and environmentally friendly recycling process. For more information on how to dispose of this correctly please contact your Chefmaster distributor or local authority responsible for waste disposal.

Compliance

All Chefmaster parts and products have undergone a stringent testing process to ensure that comply with all European standards and specifications.
All Chefmaster products carry the CE approval symbol.
