Operating Instructions
(Household) Hair Dryer
Model No. EH‑NA27

Thank you for purchasing this Panasonic product.
Before operating this unit, please read these instructions completely and save them for future use.
nanoe™ is a trademark of Panasonic Corporation.
A nanoe™ is a nano‑sized ion particle coated with water particles.

Safety precautions

To reduce the risk of injury, loss of life, electric shock, fire, and damage to property, always observe the following safety precautions.

Explanation of symbols
The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.

WARNING
Denotes a potential hazard that could result in serious injury or death.
CAUTION
Denotes a hazard that could result in minor injury or property damage.
The following symbols are used to classify and describe the type of instructions to be observed.

This symbol is used to alert users to a specific operating procedure that must not be performed.
This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.

WARNING
►Plug and Cord
Do not use with the cord bundled.
‑ Doing so may cause fire or electric shock.

Do not damage the cord or plug.
• Do not deface, modify, forcefully bend or pull the cord or plug. Also, do not place anything heavy on, twist or pinch the cord.
‑ Doing so may cause electric shock, burn or fire due to a short circuit.

Do not use it when the plug or cord is damaged or hot.
‑ Doing so may cause burn, electric shock, or fire due to a short circuit.

Never use the appliance if the plug fits loosely in a household outlet.
‑ Doing so may cause burn, electric shock, or fire due to a short circuit.

Do not connect or disconnect the plug to a household outlet with a wet hand.
‑ Doing so may cause electric shock or injury.

Do not wrap the cord tightly around the main body when storing.
‑ Doing so may cause the wire in the cord to break with the load, and may cause electric shock, burn or fire due to a short circuit.

Do not store or use the cord in a twisted state.
‑ Doing so may cause the wire in the cord to break with the load, leading to electric shock or fire due to a short circuit.

Disconnect the plug by holding onto it instead of pulling on the cord.
‑ Failure to do so may cause the wire in the cord to break and may cause burn, electric shock, or fire due to a short circuit.

Regularly clean the plug to prevent dust from accumulating.
‑ Failure to do so may cause fire due to insulation failure caused by humidity. Disconnect the plug and wipe with a dry cloth.

Always turn off the power switch and disconnect the plug from the household outlet after use.
‑ Failure to do so may cause fire or burn.

Insert the plug into the household outlet directly: do not use an extension cord. Fully insert the plug.
Always ensure the appliance is operated on an electric power source matched to the rated voltage indicated on the appliance. ‑ Failure to do so may cause fire or electric shock.

When the appliance is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the appliance is switched off.
‑ Failure to do so may cause an accident or injury.

For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30 mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.
‑ Failure to do so may cause an accident or injury.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent (described in the warranty), or similarly qualified persons in order to avoid a hazard.
‑ Failure to do so may cause an accident or injury.c

►In case of an abnormality or malfunction
Immediately stop using and remove the plug if there is any abnormality or malfunction.
‑ Failure to do so may cause fire, electric shock, or injury.

<Abnormality or malfunction cases>

• Air is not emitted
• Unit stops sporadically
• The interior becomes red hot and smoke is emitted
  ‑ Immediately request inspection or repair at an authorized service center.

►Maintenance
When you see sparks around the air outlet while using the hot air setting, stop using and remove the lint on the air outlet and air inlet.
‑ Failure to do so may cause burn or fire.

►This appliance
Do not block or insert hair pins or other foreign objects into the air inlet, air outlet, or nanoe™ outlet.
‑ Doing so may cause fire, electric shock, or burn.

Do not leave the area with the power switch left on.
‑ Doing so may cause fire.

Do not use in proximity of flammable materials (such as alcohol, benzine, thinner, spray, hair care product, nail polish remover).
‑ Doing so may cause an explosion or fire.

Never modify, disassemble, or repair.
‑ Doing so may cause ignition or injury due to abnormal operation. Contact an authorized service center for repair.

Do not store within the reach of children or infants.
Do not let them use it.
‑ Doing so may cause burn, electric shock, or injury.

Do not use the appliance with a wet hand.
‑ Doing so may cause electric shock or fire due to a short circuit.

This appliance is not designed for commercial use and is not intended for use without appropriate maintenance.
‑ Doing so may cause burn or fire due to a continuous load or overload.

Do not store the appliance in a bathroom or location with high humidity. Also, do not place in a location where water may spill (such as on top of a vanity).
‑ Doing so may cause electric shock or fire.

Do not immerse the appliance in water.
Do not use the appliance near water.
Do not use the appliance near bathtubs, showers, basins or other vessels containing water.
‑ Doing so may cause electric shock or fire.

This symbol with a prohibition sign in red on the appliance means “Do not use this appliance near water”.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
‑ Failure to do so may cause an accident or injury.

CAUTION
►To protect your hair
Do not use with the air inlet damaged.
‑ Your hair may get tangled in the air inlet, which could damage the hair.

Be sure to keep a distance of over 3 cm between the air outlet and your hair.
‑ Failure to do so may result in your hair being burned

Be sure to keep your hair at least 10 cm away from the air inlet.
‑ Your hair may get tangled in the air inlet, which could damage the hair.

►Note the following precautions
Do not drop or subject to shock.
‑ Doing so may cause electric shock or ignition.

Only use for drying or styling human hair. (Do not use on pets, or to dry clothing, shoes, etc.)
‑ Doing so may cause fire or burn.
Do not use it on children or infants.
‑ Doing so may cause a burn.
Do not touch the air outlet and quick dry nozzle which will become very hot.
‑ Doing so may cause burn.
Do not look into the air outlet while in use.
‑ The hair dryer blows air with dust, etc. possibly resulting in injury.

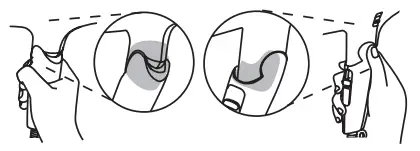

During use or when unfolding or folding the handle, do not touch the shaded area as shown in figures below
‑ Failure to do so may cause finger injury.

►Notes

• This hair dryer is equipped with an automatic overheating protective device. If the hair dryer overheats, it will switch to cold air mode. Switch off the hair dryer and unplug it from the household outlet. Allow it to cool down for a few minutes before using it again. Check that no fluff, hair etc. is in the air inlets and outlets before switching it on again.
• You may notice a characteristic odor when using this hair dryer. This is caused by the ozone it generates and is not harmful to the human body.

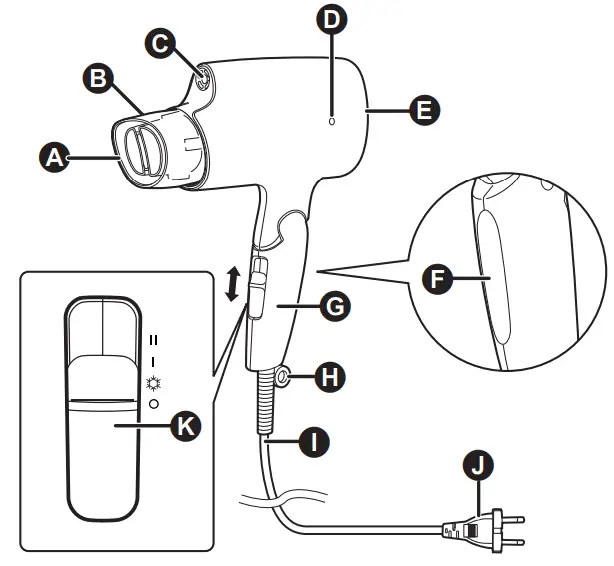

Parts identification

A Air outlet
B Quick‑dry nozzle
C nanoe™ outlet
D nanoe™ lamp
E Air inlet
F Panel
G Handle
H Ring for hanging
I Cord
J Plug
The shape of the plug differs depending on the area.
K Power switch

Turbo (Strong hot airflow)
Set  (Gentle hot airflow)
Cool (Cool airflow)
Off

►Quick‑dry nozzle
For fast blow drying, use the Quick‑dry nozzle. • Quick‑dry nozzle helps to separate hair strands to dry hair quickly with alternating strong and weak airflow.

About nanoe™

What is nanoe™
nanoe™ is generated by collecting the available moisture in the air, so depending on the usage environment, nanoe™ may not be generated. In environments of low temperature and low humidity, moisture in the air becomes difficult to collect. When this occurs, negative ions are generated. nanoe™ is ion wrapped in water that are invisible to the human eye.

How nanoe™ works
Generally, hair has properties that make it easy to become positively charged with electricity. These properties attract strongly negatively charged nanoe™ which penetrates the hair with moisture. Furthermore, they make the hair slightly acidic, tighten cuticles and keep your hair strong, elastic, and healthy.

Panel effect
Just by grasping the panel along with the handle, more nanoe™ is attracted to your hair.

►Note
• Results of nanoe™ on hair vary according to the individual, and the following people may find it hard to experience an effect.

• People with curly hair
• People with strong wavy hair
• People with smooth hair that can be easily set
• People who have had a straightening perm within 3 to 4 months
• People with short hair

Curly hair	Wavy hair

How to use the hair dryer

1. Before using the hair dryer, make sure that the power switch is at position “ ”, then plug into a household outlet and turn on the power switch.
2. Select the intensity of the airflow with the power switch, and then dry your hair.
3. Set the power switch to position “ ”, and then remove the plug from the household outlet.

►Notes

• Drops of water may blow out of the nanoe™ outlet during use, but this is not a malfunction.
• A humming noise may come out of the nanoe™ outlet, but this is the sound of nanoe™ being discharged and is not a malfunction.
• You may notice a characteristic odor when using this hair dryer. This is not harmful to the human body.
• The effects of nanoe™ might not be felt by the following people. People with crimpy hair, strong curly hair, very smooth hair, short hair, or who have had a hair straightening perm in the last three or four months.

Maintenance of the hair dryer
Always turn the power switch off and disconnect the plug from the household outlet. (Except when performing maintenance on the air outlet)

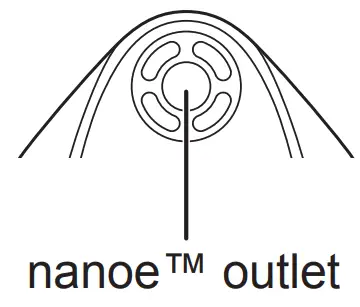

Maintaining the nanoe™ outlet

Clean the nanoe™ outlet at least once a month. In order to maintain the generation amount of nanoe™.

1. Prepare a commercially available new cotton swab.
2. Gently insert the swab in the nanoe™ outlet until it stops (about 10 mm), and then turn the cotton swab 2‑3 times carefully.

►Note
• It is easier to clean the nanoe™ outlet with a narrow cotton swab (for example, one intended for babies).

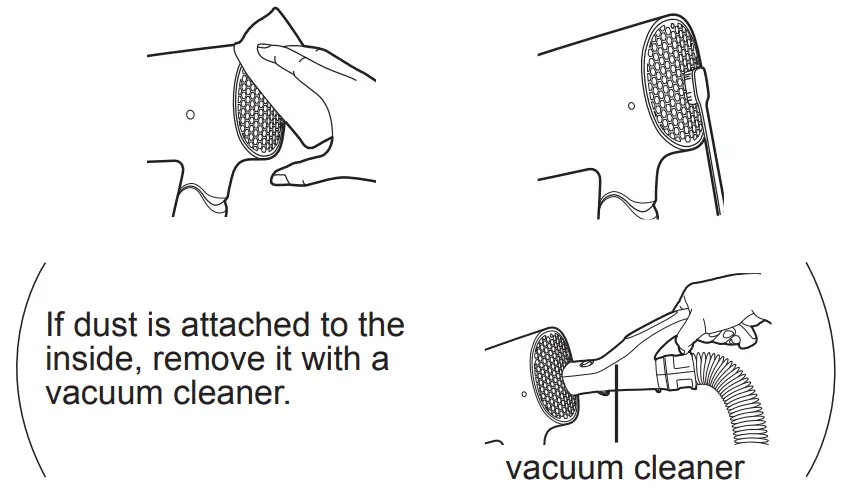

Maintaining the air inlet

Clean the air inlet once a month.

• Wipe to clean lint, hair, or other matter from the air inlet with a tissue or toothbrush.

►Notes

• Do not press or rub with your nails or sharp items.
  Doing so may cause the air inlet to break.

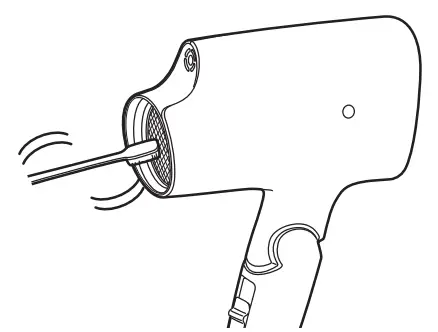

Clean the air outlet once a month.
Scrub to remove any dust, hair, etc. blocking the mesh.

• The hair dryer should be plugged into the household outlet only in case of maintenance for the air outlet.
• Set the temperature selector to “ ” for using cool airflow to blow away the dust, etc., as you scrub with the toothbrush.

(Use a commercially available toothbrush.)

►Notes

• During maintenance, do not block the air inlet with your hands, etc.
• During or after the maintenance of the air outlet, dust, etc. may scatter. Ensure that the hair dryer blows no dust, etc. from the air outlet before using. (Do not look into the air outlet.)

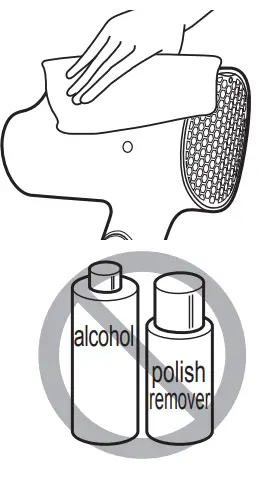

Maintaining the hair dryer

Clean the hair dryer when the hair dryer gets dirty.
Clean the housing only with a soft cloth slightly dampened with tap water or soapy tap water.

►Notes

• Do not use substances such as alcohol, nail polish remover or detergent (hand soap). Doing so may result in malfunction or part cracks or discoloration.
• Do not leave the appliance with hairdressing products or cosmetics on it. Doing so will cause deterioration of the plastic, leading to discoloration and cracks.

Troubleshooting

If the problems still cannot be solved, contact the store where you purchased the unit or a service center authorized by Panasonic for repair.

Specifications

This product is intended for household use only.
