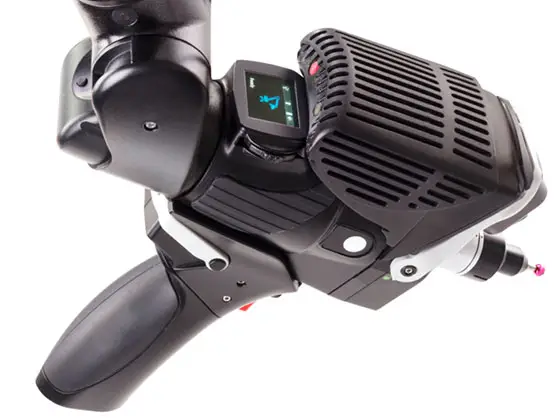

Hexagon RS5 Laser Scanner Absolute Arm
Hexagon RS5 Laser Scanner Absolute Arm

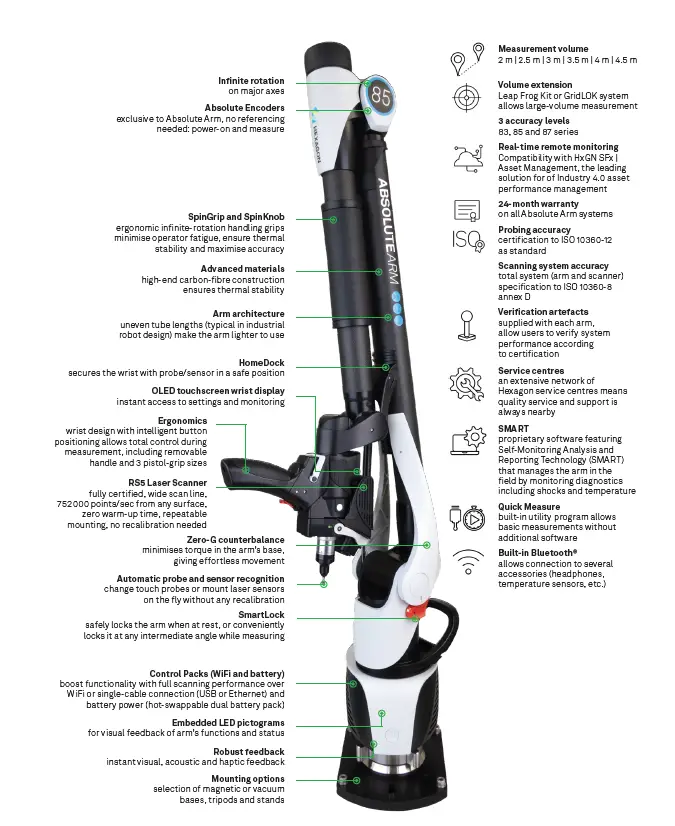

Key features
| Criteria for choosing Absolute Arm 7-Axis with RS5 Laser Scanner | Hexagon | Other |
| Availability of various system sizes and accuracy levels? | Yes 6 sizes, 3 levels | |
| Availability of extended-volume measurement options (i.e. up to 5-10 times the system’s standard volumetric range)? | Yes LeapFrog Kit/GridLOK | |
| Probing accuracy specifications according to ISO 10360-12 (certification included)? | Yes | |
| Compliance with impact, shock vibration, emissions and environmental norms (CE, IEC, etc.)? | Yes (full list in manual) | |
| Does the system include artefacts and software so you can verify its accuracy performance compared to the specifications (software scripts/guides)? | Yes | |
| Does the system include software for diagnostics and performance monitoring? | Yes | |
| Is the system thermally stable (i.e. high-end carbon-fibre construction)? | Yes | |
| Can the system measure immediately after power-on (no warm-up time)? | Yes | |
| Does the system feature Absolute Encoders (with no need to be reset or ’zeroed’ before measurement)? | Yes | |
| Does the system’s counterbalance mechanism allow the arm to be used comfortably and with a single hand (with an ergonomically designed wrist)? | Yes | |
| Does the arm allow infinite rotation on major axes? | Yes | |
| Does the system provide the operator with suitable feedback in any shop-floor environment (audio, visual and haptic warnings)? | Yes | |
| Are multiple hand-grip sizes offered (small, medium, large) as standard? | Yes | |
| Can the operator use the arm as a mouse (for remote computer control)? | Yes | |
| Does the system have a built-in display providing the operator with instant feedback on the arm status and the measurements taken? | Yes | |
| Does the arm include a safety locking mechanism when at the home position to prevent accidental tilt? | Yes | |
| Is the arm able to lock at least one axis at a desired angle for measurements in low-ceiling or confined areas? | Yes | |
| Does the system have options for ergonomically positioned handling grips? | Yes (SpinGrip/SpinKnob) | |
| Is complete Scanning System Accuracy (arm and scanner) certified according to ISO 10360-8 Annex D (certifications included)? | Yes | |
| Does the system include a 2-year subscription to an asset management platform providing real- time remote performance monitoring and location tracking through a user-friendly dashboard? | Yes | |
| Can you remove the hand-grip for easier laser scanning inside tight spaces or cavities? | Yes | |
| Can you remove the laser scanner for easier probing inside tight spaces or cavities? | Yes | |
| Does the system offer both automatic and manual laser scanner exposure adjustment for scanning surfaces of different colours and reflectivity? | Yes | |
| Is wireless measurement available for probing and scanning? | Yes | |
| Is battery operation available (with hot-swappable batteries)? | Yes | |
| Does the system feature built-in Bluetooth® that allows connection to several accessories (headphones, temperature sensors, etc.)? | Yes | |
| Can the system accept the mounting of an external laser scanner? | Yes | |
| Can probes or scanners be mounted and used without stopping to calibrate or select the probe in the software? | Yes | |
| Can you easily swap probes without extra tools? | Yes | |
| Can the arm measure repeatably in an environmental temperature up to 45°C? | Yes | |
| Are other probe types (extended or ’hooked’ probes) available, in case you need to add more measurement capabilities later? | Yes | |
| Is there a variety of mounting options (magnetic, tripod, vacuum base)? | Yes | |
| Is a dust cover for the arm included? | Yes | |
| Does the system come with a single carrying case with wheels for mobility? | Yes | |
| Is a 24-month warranty offered as standard with all systems? | Yes |
