Perlator Bubble-Jet Adapter
User Manual
1937 Perlator
 |  |
| Bild Nr. Picture No. | Spare Part No. | Description |
| Art. 948/952/951 | 948-00.600.06 948-00.600.06 948-00.600.01 | Sprayers and Soft Sprayer until 2004 Thread ring, grey Washer Perforated plate |
| Art. 949 | 948-00.600.06 948-00.600.01 948-00.000.09 949-00.630.00 853-00.001.46 853-00.001.31 853-00.711.00 949-00.001.13 949-00.010.00 1120-00.000.01 949-00.702.00 949-00.003.11 | Soft Sprayer with Hand Valve until 2014 Thread ring, grey Washer Perforated plate Hand valve for soft sprayer Trigger, red Pressure spring Valve body, cpl. Wire bow Locking screw, cpl. Washer 19,3×3 Soft sprayer without hand valve Union nut, rey |
| Art. 1935 | 8109-00.799.00 900-00.101.06 1413-00.650.04 1935-00.600.21 937-00.000.12 1927-00.600.21 1927-00.600.12 8102-00.600.01 | Multi-Purpose Spray Lance until 2003 Hand valve, cpl. O-ring 10,5×2,7 O-ring 12×3 Union nut O-ring 13,6×2,7 Nozzle Perforated plate Thread ring |
| Art. 1936 | 949-00.630.00 | Spray Lance Flower Pots Hand valve for soft sprayer |

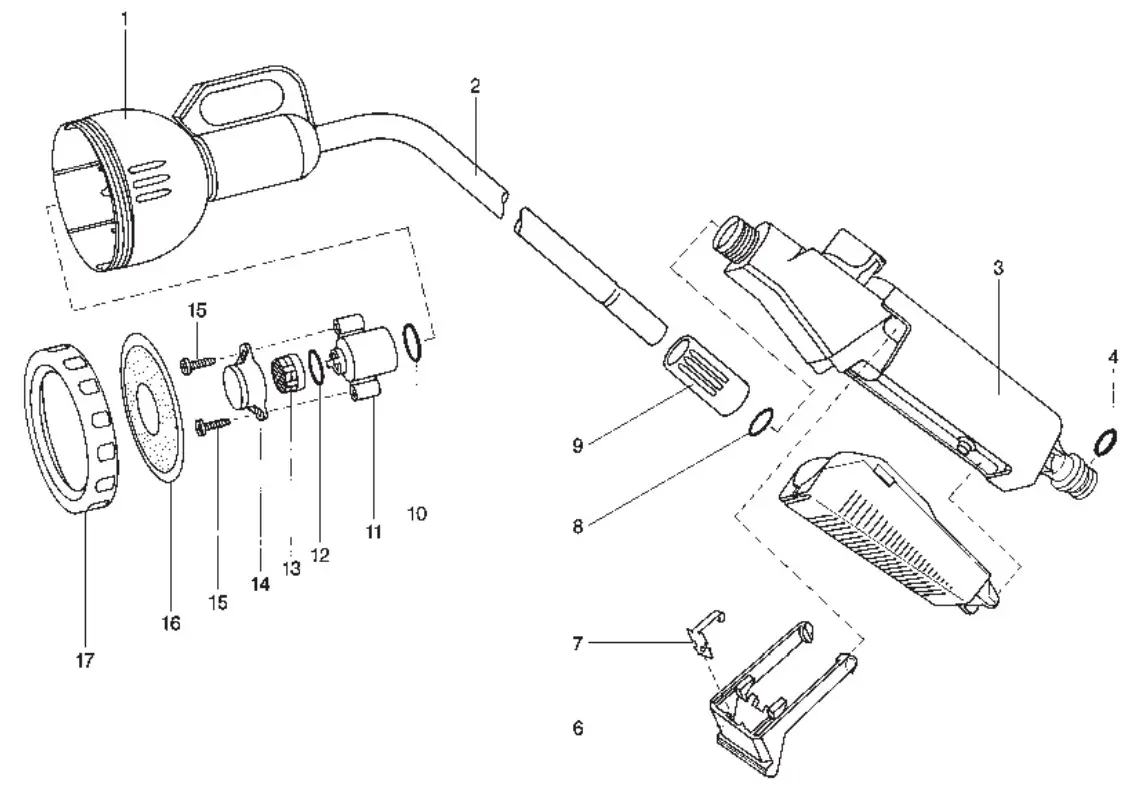

| Art. 1937 3-7 4 8 9 10-14 13 16 17 | 8109-00.799.00 900-00.101.06 1413-00.650.04 1935-00.600.21 1929-00.701.00 906-00.600.15 1929-00.600.12 8102-00.600.01 | Perlator Spray Lance until 2003 Hand valve, cpl. O-ring 10,5×2,7 O-ring 12×3 Union nut Bubble-jet filter, cpl. Bubble-jet insert Perforated plate Thread ring |

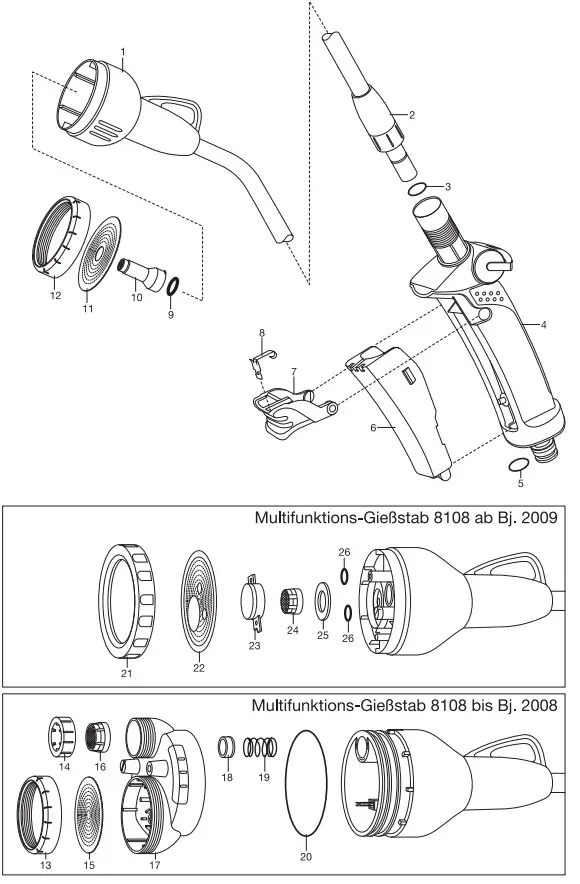

| Art. 8108 2 3 2,4-8 5 7-8 13,15 14 16 | 8108-00.600.16 1413-00.650.04 8109-00.799.00 900-00.101.06 8100-00.710.00 8106-00.610.00 8106-00.600.11 906-00.600.15 | Multi-Purpose Spray Lance until 2008 Threaded bush O-ring 12×3 Hand valve cpl. O-ring 10,5×2,7 Locking device, cpl. Thread ring, cpl. Thread ring, small Bubble-jet insert |
| 21 22 24 25 26 | 8102-00.600.01 1931-00.600.24 8104-00.600.16 1931-00.600.57 881-00.001.07 | since 2009 Thread ring Perforated plate Beam control Washer O-ring 5,7×1,9 |
| Art. 8109 2 3 2,4-8 5 7-8 9 10 11 12 | 8108-00.600.16 1413-00.650.04 8109-00.799.00 900-00.101.06 8100-00.710.00 937-00.000.12 8102-00.600.07 8102-00.600.11 8102-00.600.01 | Spray Lance Threaded bush O-ring 12×3 Hand valve cpl. O-ring 10,5×2,7 Locking device, cpl. O-ring 13,6×2,7 Nozzle insert Perforated plate, hole 13 mm Thread ring |
| Art. 8155 | 8101-00.625.00 8102-00.600.01 8102-00.600.11 8153-00.600.06 8153-00.620.00 5550-00.600.50 | Premium Spray Lance Tap connector metal, cpl. Thread ring Perforated plate, hole 13 mm Bow 2K Turning knob, cpl. O-ring 15,1×2,7 |
| Art. 18330 | 900-00.101.06 18301-00.600.36 2602-00.600.06 18310-00.610.00 | Classic Spray Lance O-ring 10,5×2,7 Nipple O-ring 22×2,5 Thread ring incl. perforated plate |
| Art. 18332 | 900-00.101.06 18301-00.600.36 2602-00.600.06 18313-00.600.31 18310-00.610.00 | Classic Spray Lance O-ring 10,5×2,7 Nipple O-ring 22×2,5 Filter Thread ring incl. perforated plate Only the mentioned spare parts are available! |
