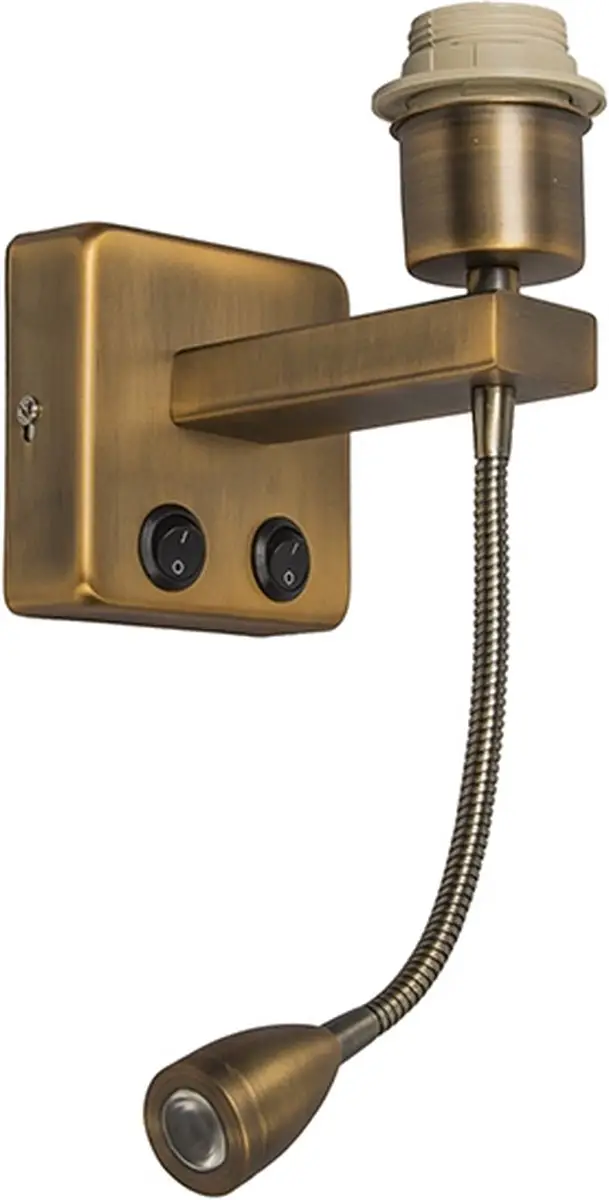

QAZQA Brescia Combi WL

Instructions

Features

• incl.LED QL7001120
• 200lm Module
• 76lm Lamp
• 1W LED
• 220-240V~50Hz
• 3000K
• CRI>80
• 25000 h
• 10000 ON/OFF

Suitability for use “indoors”, the related ambient temperature is 25℃.

For non replacable light sources:

• The LED of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced”
• The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 05. m is not expected.

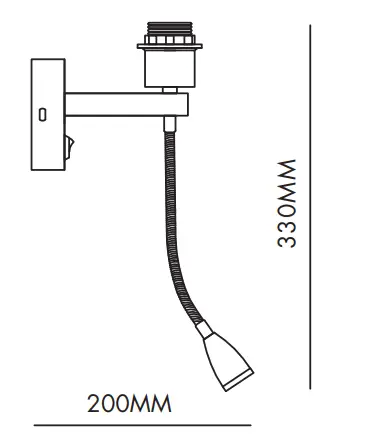

Dimensions

This product contains a light source of energy efficiency class F

• 08718881025495(90591)
• 08718881025501(90592)
• 08718881025518(90593)
• 08718881025525(90594)
• 08718881025532(90595)
• 08718881084003(96890

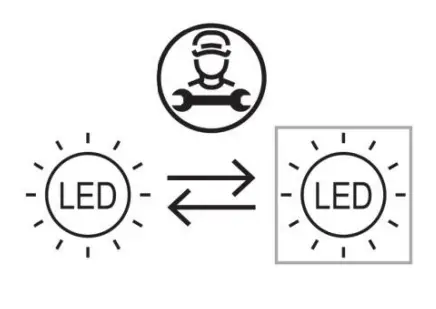

Replaceable (LED only) light source by a professional.

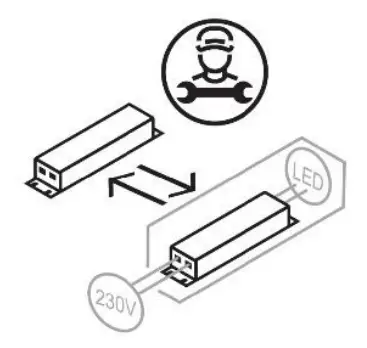

Replaceable control gear by a professional.

SAFETY INSTRUCTION

Please study the instruction manual and below information carefully before installing or using this product. Please keep this user manual for further reference

1. Maintenance of the luminaires is limited to their surfaces. During maintenance no moisture can come into contact with any areas of the terminal connections or voltage control parts.
2. The electrical supply must be switched off at the outset, preferably by means of a switch in the distribution box, before any installation, maintenance or repair work is undertaken.
3. Exterior lighting must not be installed during rain.
4. If in any doubt, consult a professional, taking local installation requirements into account. Some countries stipulate that lighting may be installed only by registered installers.
5. Clamping screws in electrical connections must be adequately tightened. This is particularly the case with 12V low voltage conductors.
6. Clean with a clean, dry cloth or brush, use no solvents or abrasives. Avoid dampness on all electrical components
7. Take account of all available technical information.
8. Meaning of symbols:
   • For indoor use only, where direct contact with water is impossible
   • This icon indicates the level of water-proot and dust-proof
   • Protection Class l: the fitting must be earthed
   • Protection Class 2 : the fitting is doubled insulated and does not require earthing
   • Protection Class ll: the fitting is low voliage
   • Minimum distance from lighted objects (meters)
   • The type ot lamp and maximum size and wattage indicated in each lighting unit must not be exceed; ditterent items require ditterent kind of light sources with ditterent bulb icons
   • The armature is designed to work only with the indicated voltage. Different items require different working voltage.
   • The luminaire can be used in combination with a dimmer
   • The reference light angle and light space of the luminaire
   • This luminaire cannot be disposed together with normal domestic waste in standard rubbish can, but you have to bring it to a staging area tor electrical waste
9. Take note of the symbols when connecting wires:
   • Live conductor
   • Earth conductor
   • Neutral conductor

FittinQ B.V.
Smaragdweg 52, 5527 LB Hapert, The Netherlands
www.qazqa.nl
