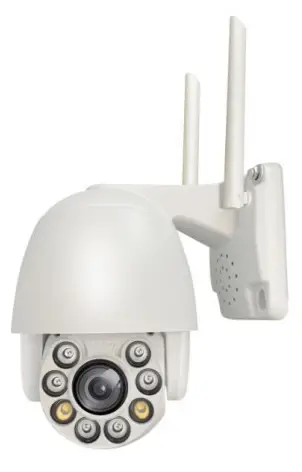

Tuya 5MP Smart Dual Light WiFi PTZ Speed Dome Camera
Instructions
VAI605IRC 3-inch Tuya 5MP Smart Dual Light WiFi PTZ Speed Dome Camera
Features
- 1/3″ CMOS sensor
- Max. 5MP resolution 2592 x 1944 output
- low illumination 0.01Lux
- 5x optical zoom lens
- Day/Night, AWB/MWB, BLC, HLC, 2D/3D-DNR, Shutter, IR-CUT
- D-WDR, Mirror, rotate, Defogging
- Multiply Style OSD Overlay, Motion Detection, Privacy Mask
- RTSP and Onvif 17.06 compatible with many third-party NVR
- H.264/H.265 dual-stream media server
- Easy-to-use Tuya Smart P2P Cloud service
- Support user authentication, video data encryption
- Support Alarm Snapshot to Email and FTP
- Multiply WEB browser IE, Firefox 32bit ESR, PC Client, Mobile APP remote access
- Lightning protection 4000V, Strong water-proof housing IP66
- Two-way audio, built-in Mic and loudspeaker
- Built-in Micro-SD slot, max. 128GB
- Integrated 2.4G b/g/n wireless with 3DB Wi-Fi antenna
- RJ45 100mbps network port for wire connection
- Rear cable attached RESET button
- 6 pcs Array IR Led, IR distance 50-80 meters
- 2 pcs Warm white LEDs, up to 20M range
- HD 2.7-13.5mm AF Motorized lens
Technical Specifications
| Model | VAI605IRC-5X-BJT |
| Camera | |
| Image Sensor | 1/3″ CMOS |
| Effective Pixels | 5 megapixels |
| Electronic Shutter | AUTO, 1/25s ~ 1/100000s |
| Min. Illumination | [email protected](AGC ON), 0Lux IR on |
| Day/Night | Auto/Color/(B/W)/Timing |
| WDR | Digital WDR |
| White Balance | Auto/Manual |
| AGC/BLC/HLC | Support |
| DNR | 2D/3D DNR |
| Other | Multi-lines OSD, Motion Detection, Privacy Mask, Mirror |
| Encode | |
| Video Standard | H.265/H.264 |
| Video Resolution | Main Stream: 25fps@5MP(2592×1944),30fps@4MP/3MP,30fps@1080P/720PSub Stream: D1/VGA(640×480)/360P/QVGA@20fps |
| Video Bitrates | 512Kbps – 6Mbps, VBR/CBR |
| Audio Standard | G.711/G.726 |
| Audio Input | Built-in Mic |
| Audio Output | Built-in loudspeaker |
| Two-way Audio | Yes |
| Dual light | |
| IR Led | 6pcs array IR Led |
| IR Distance | 50-80 M |
| Warm Led | 2pcs 3600K Warm led , support alarm trigger |
| Lens | |
| Focal length | 2.7-13.5mm |
| Zoom | 5x optical zoom |
| PTZ | |
| Pan/Tilt Range | Pan: 0° ~ 355°; Tilt: 0° ~ 92° |
| Preset Point | 8 |
| Control Speed | Pan: 0.5° ~20° /s; Tilt: 0.5° ~20° /s |
| Power on recovery | support |
| Network Services | |
| Protocol | HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc. |
| P2P | Yes |
| Web | IE , Firefox (32bit esr), etc. |
| Media | CMS, Android, IOS |
| ONVIF | 17.06 compatible |
| Alarm Event | Sound Alarm, Motion Detection, Email alert, snapshot FTP, SD Storage |
| General | |
| Network Port | 1-RJ45, 100Mbps, PoE 48V in Optional |
| Wireless | 2 – 2.4G b/g/n external 3DB antenna |
| Reset Button | Yes |
| Power Supply | 12 VDC ± 10% 2A |
| Power Consumption | < 20 W |
| Operating Temp. | -30℃-(+60)℃, 10%-90%RH |
| Size | 22.6*19.0*13.3 cm |
| Weight | 1 kg |
