Qazqa 93834 Eva Fl 2 Bronze Floor Lamp Instruction Manual (+ PDF)

INSTRUCTION MANUAL
Eva FL 2 Bronze
93834

Contents hide

93834 Eva FL 2 Bronze Floor Lamp

Floor lamp incl. LED QL7001034
2x520lm Module
2X380lm Lamp
2x5W LED
220-240V~50Hz
3000K
CRI>80
30000 h
15000 ON/OFF
93834
2x5W LED incl. LED Board: QL7001034 220-240V~50Hz

This product contains a light source of energy efficiency class F

QR
https://eprel.ec.europa.eu/qr/938548
EAN
8718881055669

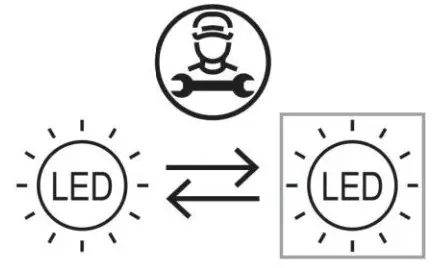

	Replaceable (LED only) light source by a professional.

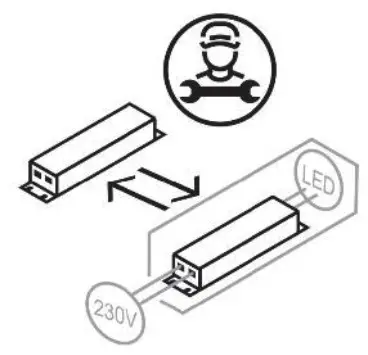

	Replaceable control gear by a professional.

SAFETY INSTRUCTION

Please study the instruction manual and below information carefully before installing or using this product. Please keep this user manual for further reference

The luminaires may only be installed by authorized and qualified technicians according the valid regulations for electrical installation.
Maintenance of the luminaires is limited to their surfaces. During maintenance no moisture can come into contact with any areas of the terminal connections or voltage control parts.
The electrical supply must be switched off at the outset, preferably by means of a switch in the distribution box, before any installation, maintenance or repair work is undertaken.
Exterior lighting must not be installed during rain.
Take account of the minimal separation distance from other objects and the room required around the fitting.
If in any doubt, consult a professional, taking local installation requirements into account. Some countries stipulate that lighting may be installed only by registered installers.
Clamping screws in electrical connections must be adequately tightened. This is particularly the case with 12V low voltage conductors.
Clean with a clean, dry cloth or brush, use no solvents or abrasives. Avoid dampness on all electrical components
Take account of all available technical information.

Meaning of symbols:

	For indoor use only, where direct contact with water is impossible
	This icon indicates the level of water-proof and dust-proof
	Protection Class I: the fitting must be earthed
	Protection Class II: the fitting is doubled insulated and does not require earthing
	Protection Class Ill: the fitting is low voltage
	Minimum distance from lighted objects (meters)
	The type of lamp and maximum size and wattage indicated in each lighting unit must not be exceed; different items require different kind of light sources with different bulb icons
	The armature is designed to work only with the indicated voltage. Different items require different working voltage.
	The luminaire can be used in combination with a dimmer
	The reference light angle and light space of the luminaire
	This luminaire cannot be disposed together with normal domestic waste in standard rubbish can, but you have to bring it to a staging area for electrical waste
