GEPRC ELRS Nano Receiver

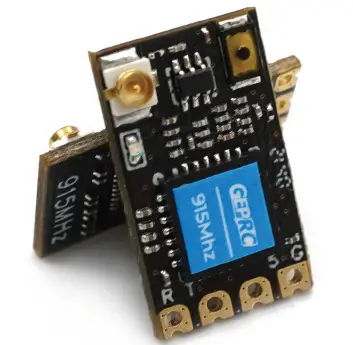

Product Introduction
GEPRC ELRS Nano receiver is a new generation remote control system developed based on the ExpressLRS open source project. ExpressLRS sets new standards for long-range connection, low latency, and a maximum refresh rate of 500Hz. GEPRC ELRS Nano receivers are available in 915/868MHz and 2.4GHz versions with a maximum refresh rate of 500Hz and can be used with GEPRC ELRS-series products or other ELRS-compatible devices.
Specifications
- Size: 17mm*11mm
- Weight: 0.6g(receiver only)
- Frequency band: 915MHz FCC/868MHz EU/2.4GHz ISM
- Input voltage：5V
- Antenna connector: ipex1
LED status indication
| LED Status | Meaning |
| Solide on | Connection established |
| Flash slowly | No Tx signal |
| Flash qucikly | WIFI mode |
| Flash double quickly | Binding status |
Instructions

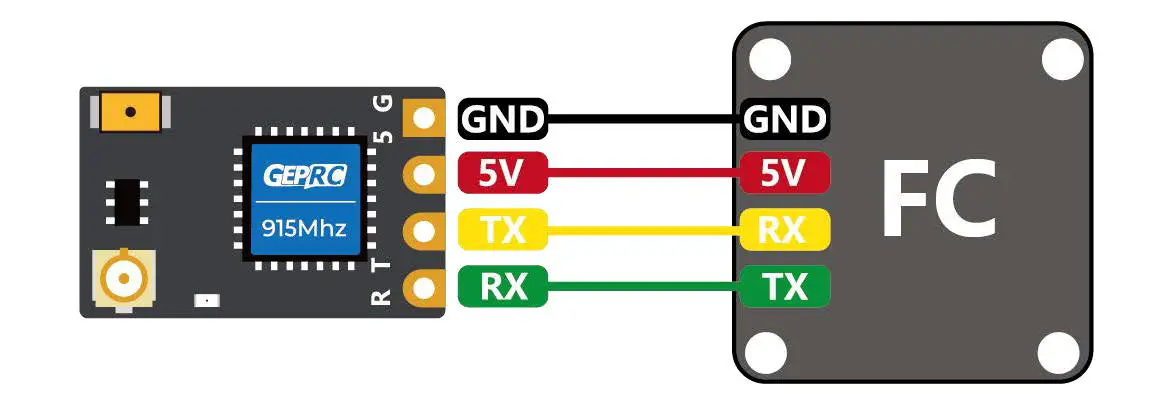

ELRS Nano receiver and FC connection diagram:

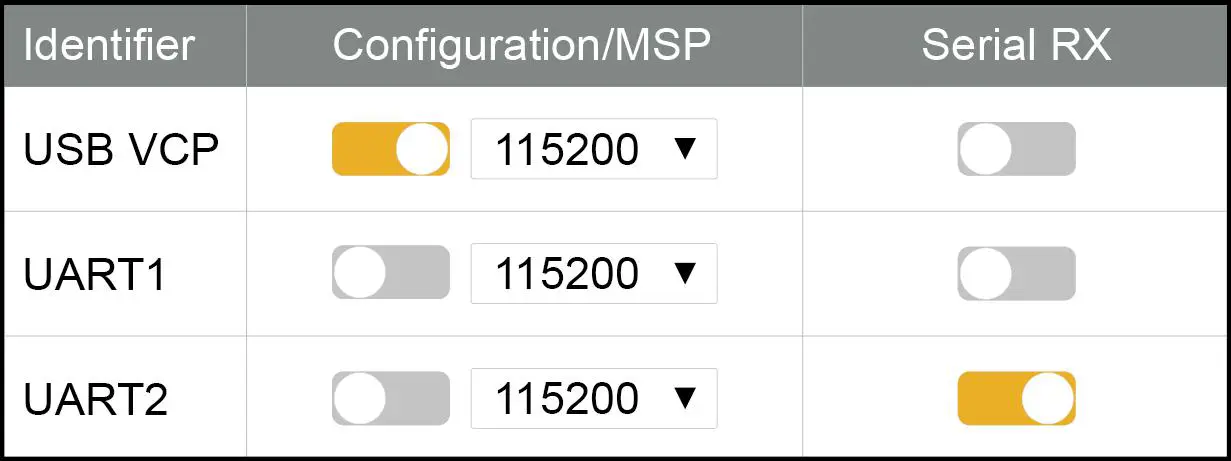

Open Betaflight Configurator, go to the “Ports” tab, and enable the corresponding UART as a Serial Rx (e.g. UART2 as shown below). Save and restart.

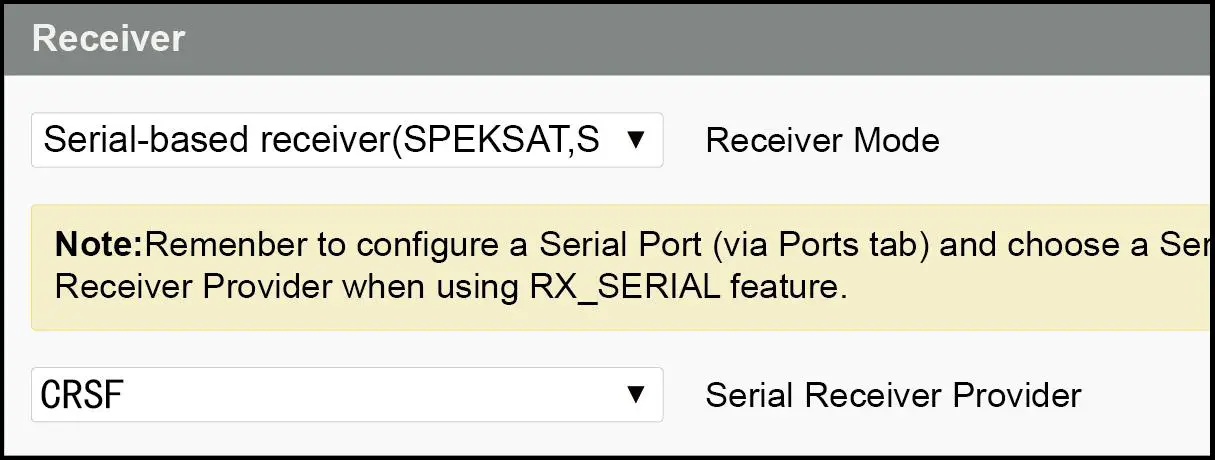

On the“Configuration” tab, click on“Serial-based receiver” on the“Receiver” panel, and select “CRSF”.
Binding
- The receiver is powered on and off for three consecutive times (within an interval of 1 second);
- Receiver’s LED doing double flashing, indicating that the receiver has entered the binding mode;
- Make the RF Tx module or radio transmitter enter binding status. Once the LED status changes to a solid light, the binding is successful.
About ELRS
ExpressLRS project is being constantly updated – the contents of this manual cannot be kept up to date in time. For more information, please visit the ELRS Project official. GitHub page:https://github.com/ExpressLRS/ExpressLRS
Product list
- 1 x receiver
- 1 x T antenna
- 2 x heat shrink tube
- 4 x silicone cable（black, red, yellow, green）
- 1 x pin (4pin)
- 1 x Instruction manual
