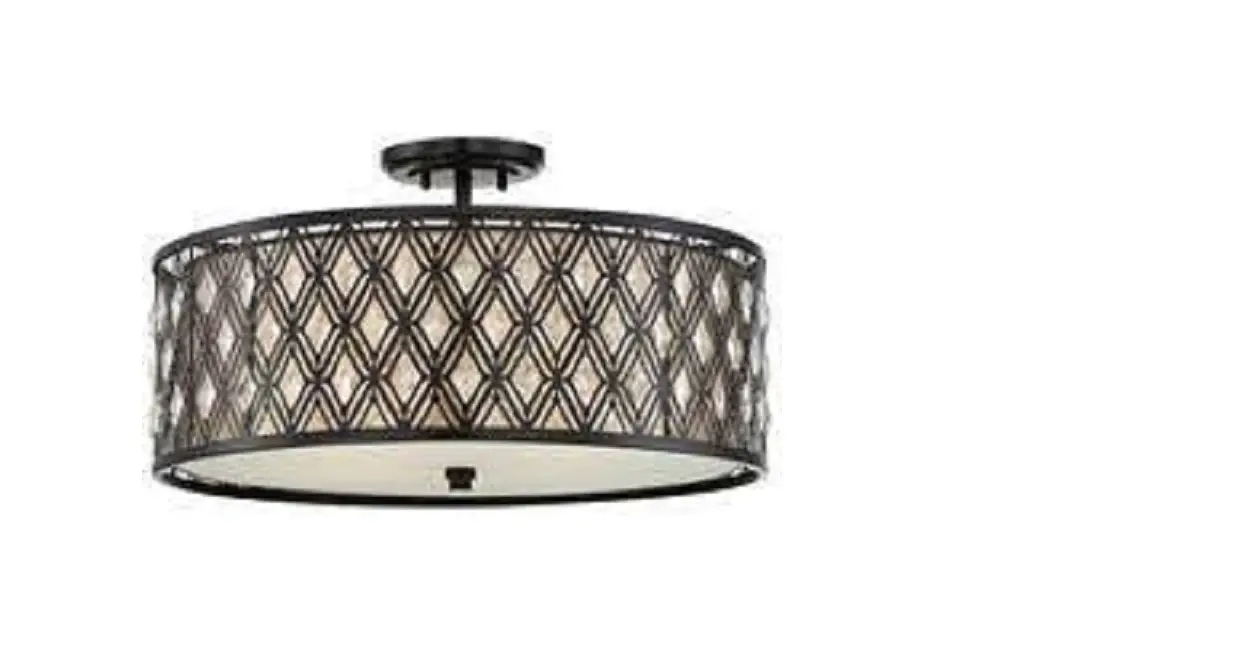

Quoizel Lamps Light Semi-flush Mount Instruction Manual

QUOIZEL Lamps Light Semi-flush Mount Instruction Manual

Tools Required

Light Source

BULB BASE TYPE Medium (E26)

BULB SHAPE TYPE A

4 BULBS REQUIRED BULBS NOT INCLUDED

Fixture Height Adjustable 12″ to 48.25″

Warnings and Cautions
Turn off the electricity at the circuit breaker before installation. Consult a licensed electrician if in doubt about installation.
Turn off power to the fixture and allow the bulbs to cool before replacing.

Package Contents

Preparation: Identify and inspect all parts before beginning the installation. Missing or damaged parts? Contact your original place of purchase.

PARTS BAG

Crossbar Assembly x 1

Outlet Box Screw x 2

Wire Connector x 3

Ceiling Canopy D Assembly

6”L Rod x 2

12″L Rod x 2

Socket Assembly x 1

Shade Assembly x 1

Stem Assembly x 1

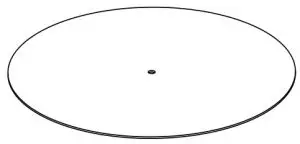

Diffuser x 1

Replacement K Crystal Drop x 2

Table of Contents

Socket assembly

Crossbar Assembly

Ceiling Canopy Assemzbly & Downrod

Lanyard

Wiring

Ceiling Canopy

Bulb

Diffuser

STEP-1

Step 1 Remove cardboard and wrappage

Step 2 Remove lock balls

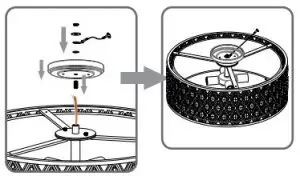

* Step 3 – 5 Install socket assembly to shade assembly

Step 3

Step 4

Step 5

STEP-2

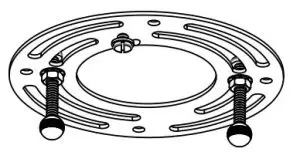

Step 1 Install crossbar assembly

Step 2 – 3 Test fitting ceiling canopy to mounting screws

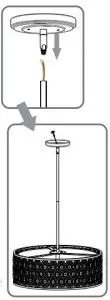

STEP-3
OPTION 1 Pendant — MCBQ2822K

Optional Rods
8′ ceiling: (2) 12″L rods 9′ ceiling: (2) 6″L + (2) 12″L rods

1. Install rods

2. Tighten hex nut inside of the ceiling canopy

3. Install Ceiling Canopy

OPTION 2 Semi-flush — MCBQ1722K

1. Remove swivel

2. Install ceiling canopy

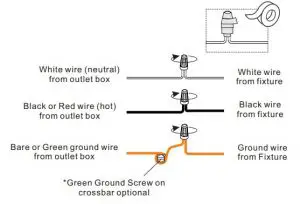

STEP-4

STEP-5

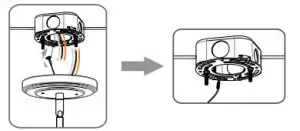

STEP-6

OPTION 1 MCBQ2822K

OPTION 2 MCBQ1722K

STEP-7

OPTION 1 MCBQ2822K

OPTION 2 MCBQ1722K

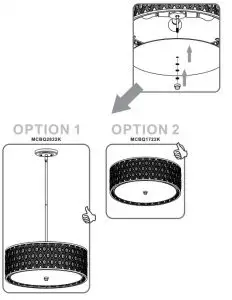

STEP-8

1. Remove finial, hex nut and washers from stem

2. Install stem

3. Install diffuser and finial


visit us on-line at www.quoizel.com
