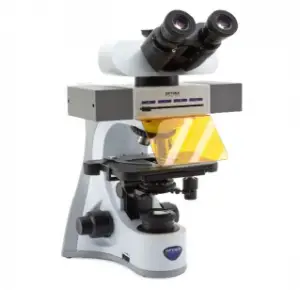

OPTIKA B-510LD4-SA User Manual
Trinocular LED fluorescence microscope,1000x, IOS W-PLAN F (Semi-Apo) objectives
Observation Method – Transmitted Light | Brightfield | Yes |
| Phase contrast (Positive type) | As optional | |
| Darkfield | As optional | |
| Simple polarized light | As optional |
| Observation Method – Incident Light | Fluorescence | Yes |
| Main Body | Type | Upright |
| Construction material | Aluminum die-cast | |
| Trasportation handle | Yes |
| Head | Type | Trinocular (Siedentopf) |
| Split ratio | 100/0 – 50/50 – 0/100 | |
| Inclination | 30° | |
| 360° rotating | Yes | |
| Interpupillary distance (mm) | 50-75 | |
| Dioptric adjustement | On left tube | |
| Tube inner diameter (mm) | 30 |
| Eyepieces | Field number (mm) | 22 |
| Magnification | 10x | |
| Planar type | Yes | |
| Micrometric scale | 26 | |
| High eyepoint (for glass wearers) | Yes | |
| Rubber cup | Yes | |
| Retractable protections | Yes | |
| Micrometric scale | As optional |
| Nosepiece | Positions | Quintuple |
| Reversed | Yes | |
| Bi-directional | Yes | |
| Rotation on ball bearings | Yes | |
| Objective thread | RMS |
| Objectives | Optical system | ∞ |
| Anti-fungus treatment | Yes | |
| Parfocal distance (mm) | 45 | |
| Standard magnifications | 40x-1000x | |
| Type | IOS W-PLAN F | |
| 4x/0.13, W.D. 4.7 mm | ||
| 10x/0.30, W.D. 4.1 mm | ||
| 40x/0.75, W.D. 0.5 mm | ||
| 100x/1.3 (Oil), W.D. 0.08 mm |
OPTIKA MICROSCOPES ITALY
www.optikamicroscopes.com – [email protected]
| Stage | Type | Double layer |
| Dimensions (mm) | 233×147 | |
| Moving mechanism | Rackless | |
| Moving range (mm) | 78×54 | |
| Material | Anti-scratch painting | |
| Specimen holder | Yes | |
| Slide number | 2 | |
| X-Y Vernier scale | Yes | |
| Vernier scale accuracy (mm) | 0.1 |
| Condenser – Single Position | Type | Swing-out |
| Removable | Yes | |
| Numerical aperture (N.A.) | 0.2 / 0.9 | |
| Numerical aperture scale | Yes | |
| Diaphragms | Iris | |
| Centrable | Yes | |
| Focusable | By rack and pinion |
| Focusing System | Type | Coaxial coarse & fine |
| Coarse total travel (mm) | 25 | |
| Fine total travel (per single rotation) (mm) | 0.2 | |
| Fine graduations | 100 | |
| Fine resolution (μm) | 2 | |
| Upper stop to prevent contact | Yes | |
| Adjustable tension | Yes | |
| Flat knob for ergonomy | Yes |
| Transmitted Illumination | Kohler illumination | Full |
| Type | X-LED | |
| X-LED type | X-LED3 | |
| Light source power (W) | 3.6 | |
| Brightness control | Manual | |
| Lifetime (hours) | > 65,000 | |
| Temperature (K) | 6,300 | |
| Max. required power (W) | 6 |
| Accessories Included | Dust cover | Yes |
| Immersion oil (10ml) | Yes | |
| Tension adjustment tool | Yes | |
| Allen wrench | Yes | |
| User Manual | Digital version (downloadable) |
| Additional Information | Heating stage (as optional).External rechargeable battery pack (as optional). |
| Product Dimensions | Height (mm) | 490 |
| Width (mm) | 276 | |
| Depth (mm) | 395 |
| Product Weight | (kg) | 11.5 |
OPTIKA MICROSCOPES ITALY
Fluorescence Attachment | Number of positions | 4 |
| Filter dimensions | Excitation: 25 mm diam.; Dichroic: 36 mm x 25 mm; Emission: 25 mm diam. | |
| Filter set selection | Manual | |
| LED source insertion | Manual |
| Fluorescence Light Source | Light source | See optional LED Fluorescence Cube list |
| Brightness control | Yes |
| Fluorescence Power Supply | Type | External |
| Microscope connector | Jack, 2.1 mm | |
| Power plug type | Multi-plug (EU, UK, US) | |
| Input voltage | 100/240 Vac, 50/60 Hz | |
| Output voltage | 12 Vdc 1.5 A |
