BARCO UDX-W32 DLP Laser Phosphor Large Venue Projector Owner’s Manual
The UDX range delivers stunning experiences and savings on installation and shipping time, reducing costs significantly. The most compact, high-brightness laser projectors with integrated cooling on the market, the UDX projectors bring reliable and razor-sharp images to every type of event and venue.

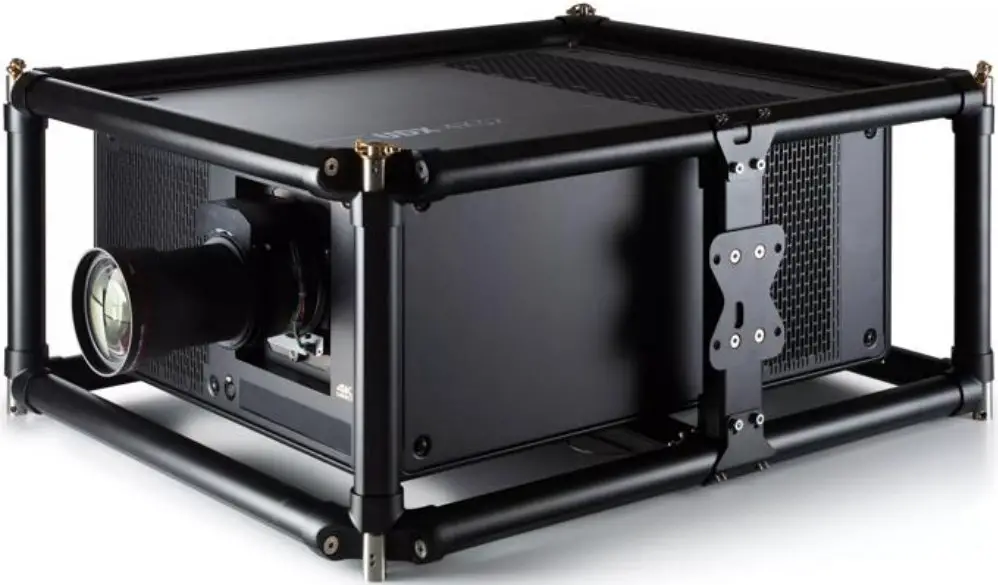

The UDX-W32 features WUXGA resolution and 32,000 lumens light output to ensure flawless shows with accurate colors at all times. The Constant Light Output (CLO) functionality also guarantees peace of mind by providing constant brightness and color over time. The UDX platform offers the widest color spectrum in the industry. Without compromising on brightness, the UDX color quality matches the renowned Xenon quality and outperforms the Rec. 709 color space.
Cut costs with laser projection
Thanks to their laser phosphor light source, lamp-related costs and maintenance as well as image flicker, belong to the past. The UDX series delivers a long lifetime and high reliability to ensure minimum downtime. The UDX’s compact and rugged design allows you to reduce shipping and labor costs. The modular components can be removed quickly to limit servicing time. You can also reuse your TLD+ lenses.
Pick your brightness and resolution
The unique FLEX² feature will allow you to tune and lock your brightness and resolution to a specific show. You’ll now need less projectors to cover a wider range of brightness levels and resolutions.
Faster processing for sharper images
The Barco Pulse electronics offer an intuitive interface and flexible, user-friendly, embedded control software. Its Single Step Processing (SSP) allows for sharper images and less latency
Product specifications
| General specifications | |
| Projector type | WUXGA 3-cnp OLP d projector |
| Technology | 096– DMID”‘ .3 |
| Resolution | 1920 x1200 |
| Brightness | 32000 center lumens/ 31000 ans. lumen / 34000 ISO |
| Contrast ratio | FsAl field 2200 1 / Barco Dyne Bleck 20000 1 |
| Brightness uniformity | 95X |
| Aspect ratio | 16 10 |
| SCenergOr | HOISOCIA and wilted. edge Pending |
| Lenses | RD+ 0 37. 0.65-0 85. 0.73 1.12 1. 0 8-1.16. 125 -16 1.1 5-20 1. 2 0-2 51. 2 8-4 51 4 5-7 5 1. 75-115 1 |
| Opticallensshift | Vertical between-100X to +130X. dependrg on lens Horizontal up to +/-40X. dependng on lensmotorized zoom and locus (yeah lens memory on TLD lenses)’ernes)motorized tem. shift (with position I ✓y on all |
| Color correction | p7 |
| Light source | laser phosphor win torganic phosphor whet; |
| Light source lifetime | 25000 his |
| Opticaldowser | Digital |
| Picture-by-picture | Two soscces Pmataneopsly |
| Seated OLP• core | Standard |
| Orientation | 360– |
| DM% 512 | Standard |
| WARP | Dieu adjust OSO + too:set |
| Image processing | Embedded Wd•D 6 blend |
| Keystone correction | Yes |
| Integrated web server | Yes |
| CLO (constant light output) | Standard |
| 30 | Active eye Wee/ loptioneel passive cacti. (optional/. 2 flash up to 2001.12′ |
| Inputs | Sznyle HDem.er. HCIMI2 0 IHOCP2 2. HOMO). OP 12 (HDCP 1.3). Quad 30/120 SDI / BarcoLink ULTRA |
| Optional Inputs | Quad DP12 / Fiber SFP |
| Input resolutions | From NTSC up to 4K (4096 x 2160)refresh rates24hz to 120hz 4K/4KUHD (4096 x 2160/ 3860 x 2400) to 240hz WOXGA (2560 x 1600) |
| Max. pixel dock | 600 MHz |
| Software tools | Projector Tootset + Android app + iCiS app |
| Control | XLR wired + IR. RS232. Wilt (opt). GSM (opt) |
| Network connection | 10/100 base-T. RJ-45 connection. Win (optional) |
| Power requirements | 120-160V (reduced power) / 200.240V (+1-10%). 20A 50.60Hz |
| Max. power consumption | 2.900 W nom / 3.100 W max. I STBY less than 10 W |
| Noise level (typical at 2YC/77°F) | 52d8(A) |
| Operational ambient temperature | 0-40°C / 32*-104°F |
| Operational humidity | 0-80% (non condens) |
| Dissipation BTU | Max. 9.895 BTU/h |
| Dimensions (WxLxH) | 660 x 830 x 350 mm / 25.95 x 32.7 x 13 78 inches |
| Shipping Dimensions | (WxLxH) 800 x 1200 x 685 mm / 31.49 x 47.24 x 26.96 inches |
| Weight | 92kg (202 lbs)/shipping weight from factory 110kg (242 Ibs) |
| Standard accessories | Power cord. wireless/XLR wired rugged remote control |
| Certifications | Compliant wth UL60950-1 and EN60950-1 complies with FCC rules Ey regulations. part 15 Class A and CE EN55032 Class A Rohs |
| Warranty | 3 years |
