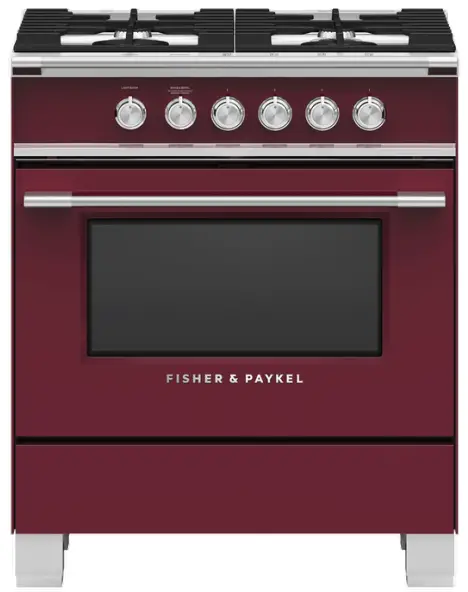

FISHER PAYKEL OR30SCG4R1 30 Inch Gas Range 4 Burners

Create a striking classic kitchen. Your freestanding range has a spacious oven capacity and four gas burners for precise control

Four burner gas cooktop with two dual wok burners
Gas oven with 3.5 cu ft total capacity
Three oven functions: Bake, Convection Bake and Maxi Broil

DIMENSIONS

Height	35 3/4 – 37 5/8″
Width	29 7/8″
Depth	25 1/4″

FEATURES & BENEFITS

Design quality

This range has been carefully crafted in every detail from performance to durability using quality materials including the balanced soft-close door and rounded hob rail.

Large capacity oven

The generous 3.5 cu.ft total capacity oven gives you plenty of space to cook multiple dishes at once, with enough room to fit a 26 lb turkey.

Performance power

Precise cooktop controls let you sear or stir fry over instant, powerful heat. Use the high burner power or simmer a delicate sauce using the gentlest of heats.

Easy cleaning

With its durable surface, your cooktop simply needs a quick wipe after cooking to keep it looking good as new for years to come.

SPECIFICATIONS

Accessories
2-pc grill system (Broil pan and	•
Broil pan	•
Chromed shelf runners	1 set
Full Extension Telescopic	2 sets (part 578776)
Kick strip, stainless steel	Part 81660
Small pot support	1 (part 533981 cast)
Capacity
Total capacity	3.5L
Cleaning	•
Acid resistant graphite enamel	•
Removable shelf runners	•
Controls
Laser etched graphics	•
Gas Requirements
Supply Pressure (LPG)	11″ W.C.P
Supply Pressure (natural gas)	4″ W.C.P
Oven features
Auto re-ignition system	•
Concealed element	•
Convection	•
Electronic ignition	•
Full extension telescopic	•
Internal light	2 x 25W halogen (rear)
Soft open/close door	•
Storage drawer	•
Oven functions
Convection bake	•
Number of functions	3
Oven performance
CoolTouch door	Triple glazed
Power requirements
Amperage	1A
Supply frequency	60Hz
Product dimensions
Depth	25 1/4″
Height	35 3/4 – 37 5/8″
Width	29 7/8″
Rangetop features
Hob rail	•
LPG/Natural gas compatible	•
Sealed range top	•
Rangetop Performance
Number of burner elements	4
Safety
Advanced cooling system	•
Anti-tilt bracket	•
Balanced oven door	•
Full extension telescopic	•
Non-tip shelves	•
Spill containment	12 BTU
SKU	81715

TEST The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
