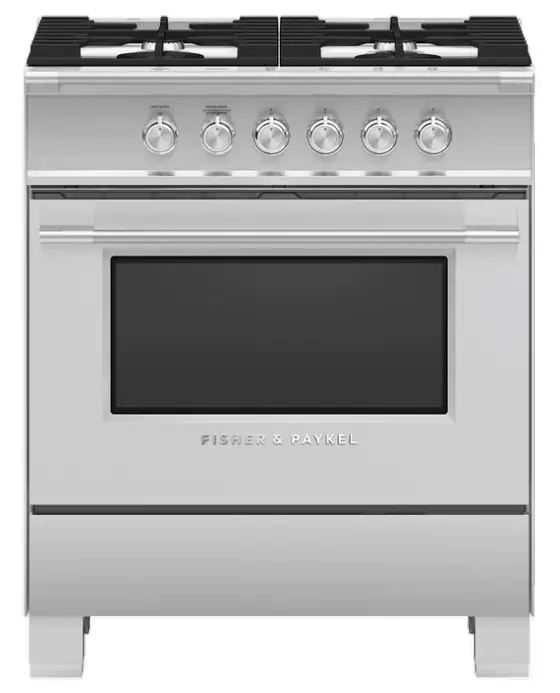

FISHER PAYKEL OR30SCG4X1 Gas Range, 30 Inch 4 Burners
INTRODCTION
Create a striking classic kitchen. Your freestanding range has a spacious oven capacity and four gas burners for precise control.
- Four burner gas cooktop with two dual wok burners
- Gas oven with 3.5 cu ft total capacity
- Three oven functions: Bake, Convection Bake and Maxi Broi

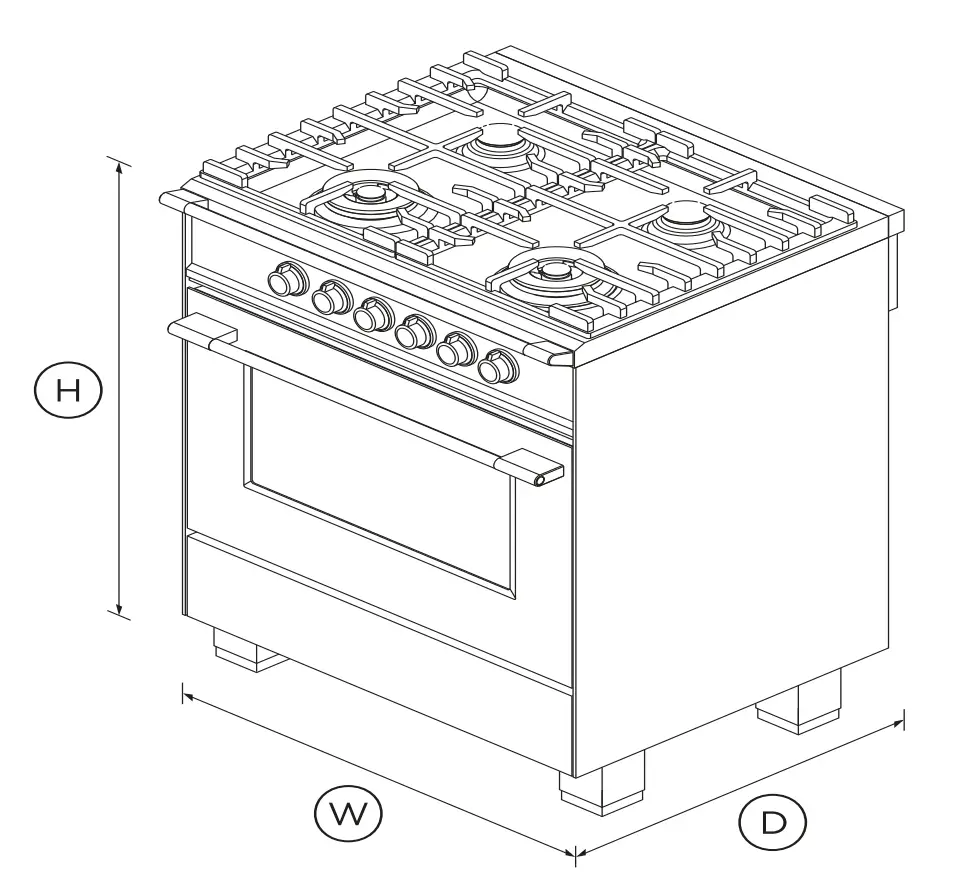

DIMENSIONS
Height 35 3/4 – 37 5/8″
Width 29 7/8″
Depth 25 1/4″
FEATURES & BENEFITS
DESIGN QUALITY
This range has been carefully crafted in every detail from performance to durability using quality materials including the balanced soft-close door and rounded hob rail.
LARGE CAPACITY OVEN
The generous 3.5 cu.ft total capacity oven gives you plenty of space to cook multiple dishes at once, with enough room to fit a 26 lb turkey.
PERFORMANCE POWER
Precise cooktop controls let you sear or stir fry over instant, powerful heat. Use the high burner power or simmer a delicate sauce using the gentlest of heats.
EASY CLEANING
With its durable surface, your cooktop simply needs a quick wipe after cooking to keep it looking good as new for years to come.
SPECIFICATIONS
| Accessories | |
| 2-pc grill system (Broil pan and | • |
| Broil pan | • |
| Chromed shelf runners | 1 set |
| Full Extension Telescopic | 2 sets (part 578776) |
| Hob rear trim | 3 1/8″ (part 81657) |
| Kick strip, stainless steel | KICKOR90X1 |
| Small pot support | 1 (part 533981 cast) |
| Burner ratings | |
| Dual wok burner inner/outer | 1000 – 18000BTU |
| Dual wok burner inner/outer | 1000 – 18000BTU |
| Maximum burner power | 18000 BTU |
| Semi-rapid burner (LPG) | 1500 – 7600BTU |
| Semi-rapid burner (natural | 1500 – 8000BTU |
| Total cooktop power | 52000 BTU |
| Cleaning | |
| Acid resistant graphite enamel | • |
| Removable oven door | • |
| Removable shelf runners | • |
| Controls | |
| Laser etched graphics | • |
| Gas Requirement | |
| Supply Pressure (LPG) | 11″ W.C.P |
| Supply Pressure (natural gas) | 4″ W.C.P |
| Oven features | |
| Auto re-ignition system | • |
| Concealed element | • |
| Convection | • |
| Electronic ignition | • |
| Full extension telescopic | • |
| Internal light | 2 x 25W halogen (rear) |
| Soft open/close door | • |
| Storage drawer | • |
| Oven functions | |
| Convection bake | • |
| Number of functions | 3 |
| Oven performance | |
| Bake power | 14000 BTU |
| Broi | 11000 BTU |
| CoolTouch door | Triple glazed |
| Power requirements | |
| Amperage | 15A |
| Supply frequency | 60Hz |
| Product dimensions | |
| Depth | 25 1/4″ |
| Height | 35 3/4 – 37 5/8″ |
| Width | 29 7/8″ |
| Rangetop features | |
| Hob rail | • |
| Hob rear trim | 3 1/8″ (part 81657) |
| LPG/Natural gas compatible | • |
| Sealed range top | • |
| Rangetop Performance | |
| Number of burners | 4 |
| Safety | |
| ADA compliant | • |
| Advanced cooling system | • |
| Anti-tilt bracket | • |
| Balanced oven door | • |
| Full extension telescopic | • |
| Non-tip shelves | • |
| Spill containment | 1/2 gallon |
| SKU | 81712 |
