idat-aSTaRT A57BBE3 2017 Hyundai Elantra STD Key Automatic
TERMS OF USE
Automotive Data Solutions Inc. (“ADS”) products are strictly intended for installation by Certified Technicians who are employed by a registered business specialized in the installation of automotive aftermarket electronics products. Prior to beginning installation of an ADS product in a vehicle, it is the Certified Technician’s responsibility to review the most current Product Guide, Install Guide and vehicle-specific notes available in Weblink®. ADS is not responsible for any damages whatsoever, including but not limited to any consequential damages, incidental damages, damages for loss of time, loss of earnings, loss of profit, commercial loss, loss of economic opportunity and the like that may or may not have resulted from the use, misuse, improper installation or operation of its products. ADS reserves itself the right to suspend any Weblink® account without notice and decline to offer technical support to non-Certified Technicians, noncompliant Certified Technicians or end users.
DESCRIPTION
REMOTE START
- Supported
- Data Immobilizer Bypass (no key required) ✓
- Key Required for Immobilizer Bypass
- Takeover Available ✓
- No Takeover Available (shutdown on unlock or door open)
- 3x Lock Start from OEM Remotes
- Data / MUX Parking Light Control – Constant
- Data / MUX / Hazard Parking Light Control – Flashing
- Tach Monitoring ✓
- Hood Status ✓
- Brake Status ✓
- E-Brake Status ✓
- Glow Plug Status
- RAP Shutdown
KEYLESS ENTRY
- Supported
- OEM Remotes Functional during RS
- OEM RFID Entry Sensors Functional during RS
- Door Lock ✓
- Door Unlock ✓
- Driver Door Priority Unlock ✓
- Trunk/Hatch Release
- Power Liftgate
- Power Sliding Door (L)
- Power Sliding Door (R)
SECURITY SYSTEM
- Supported
- Arm OEM Alarm ✓
- Disarm OEM Alarm ✓
- Aftermarket Alarm Control from OEM Remotes ✓
- Aftermarket Alarm Control from OEM RFID Entry Sensors
- Door Status ✓
- Trunk/Hatch Status ✓
COMFORT
- Supported
- Rear Defrost Activation
- Heated Mirror Activation
- Heated Seat Activation
- Cooled Seat Activation
- Heated Steering Wheel Activation
MODULE CONNECTORS

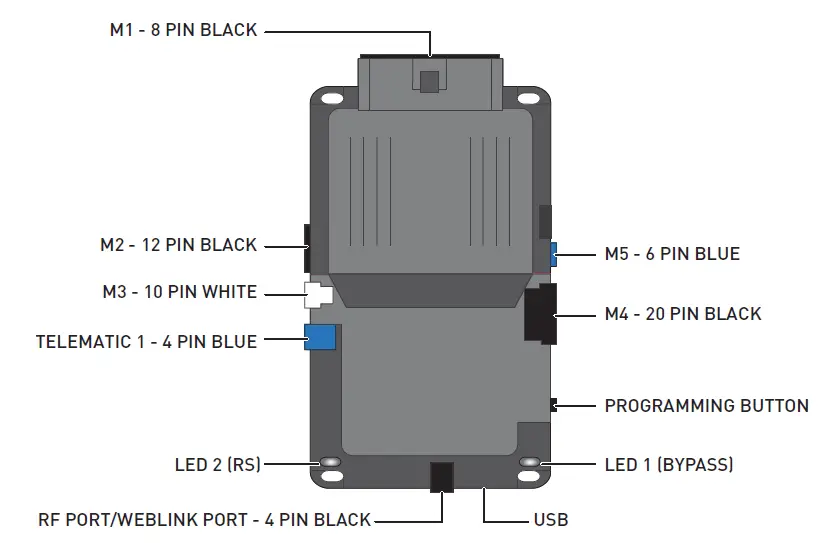

FIRST GENERATION HCx [HCX-192]

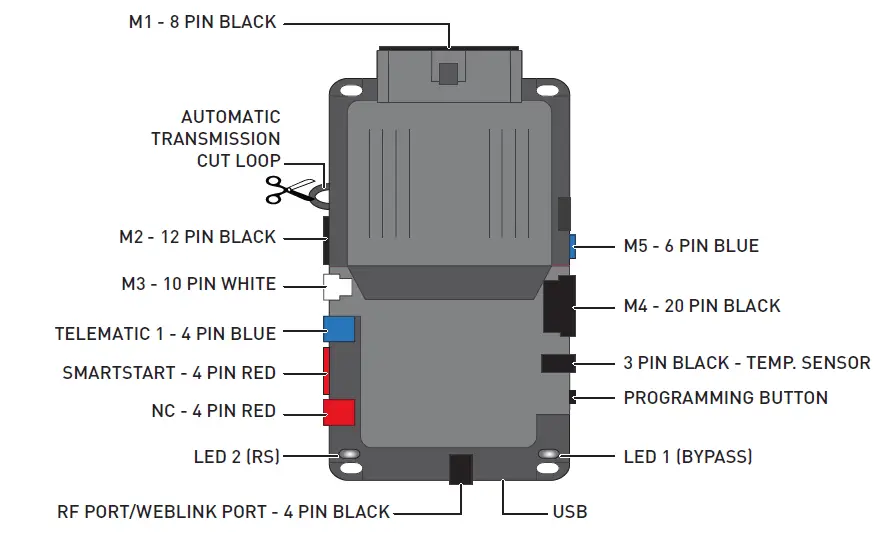

SECOND GENERATION HCx [HCA-320]
CONNECTOR PINOUT

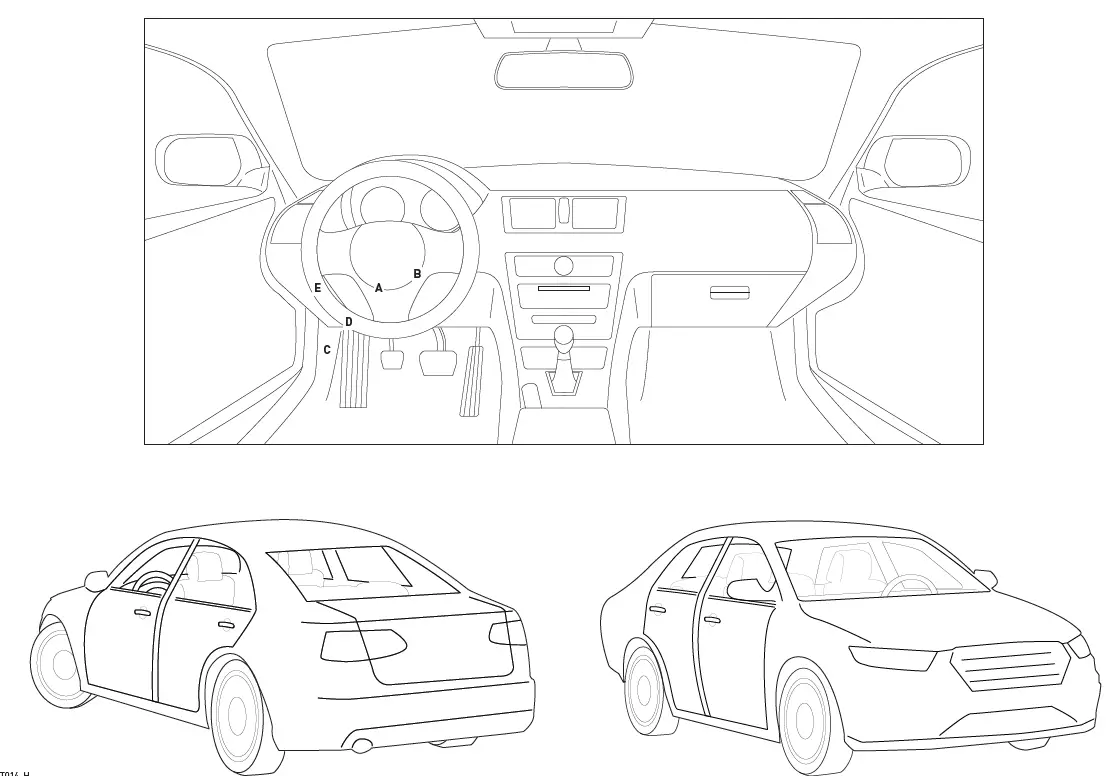

T-HARNESS / COMPONENT LOCATOR

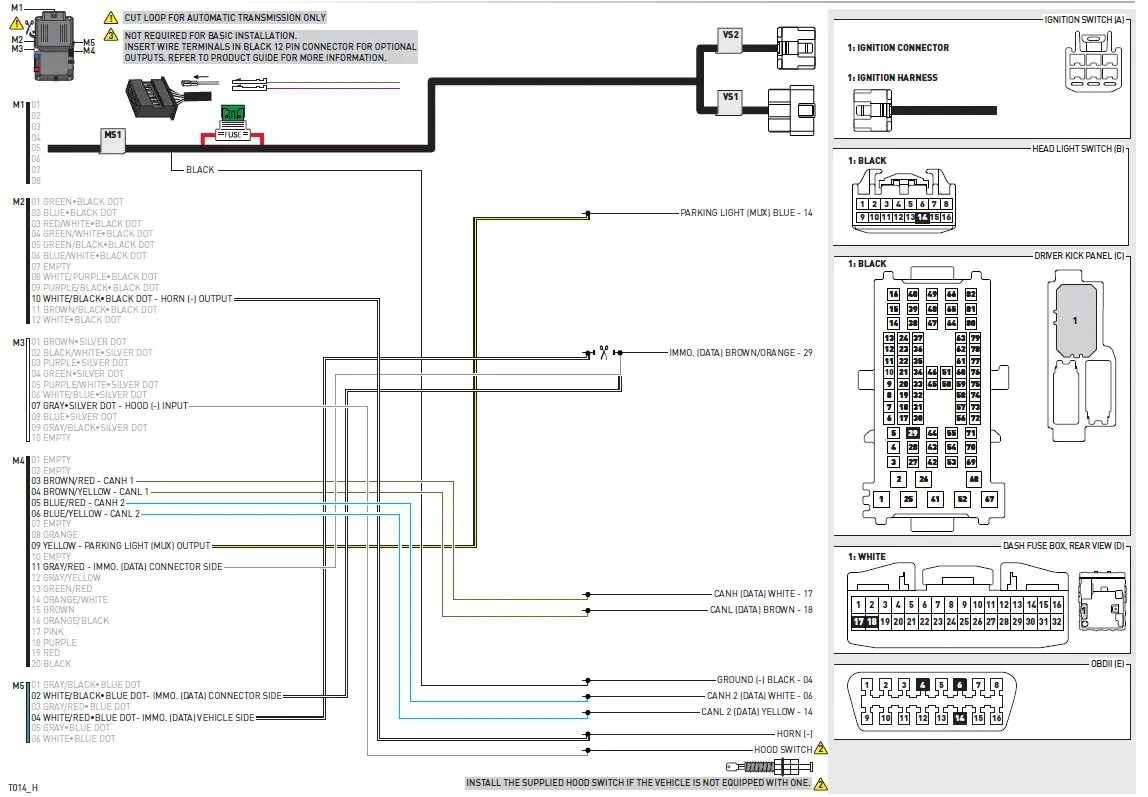

T-HARNESS / WIRING DIAGRAM
HARDWIRE / COMPONENT LOCATOR

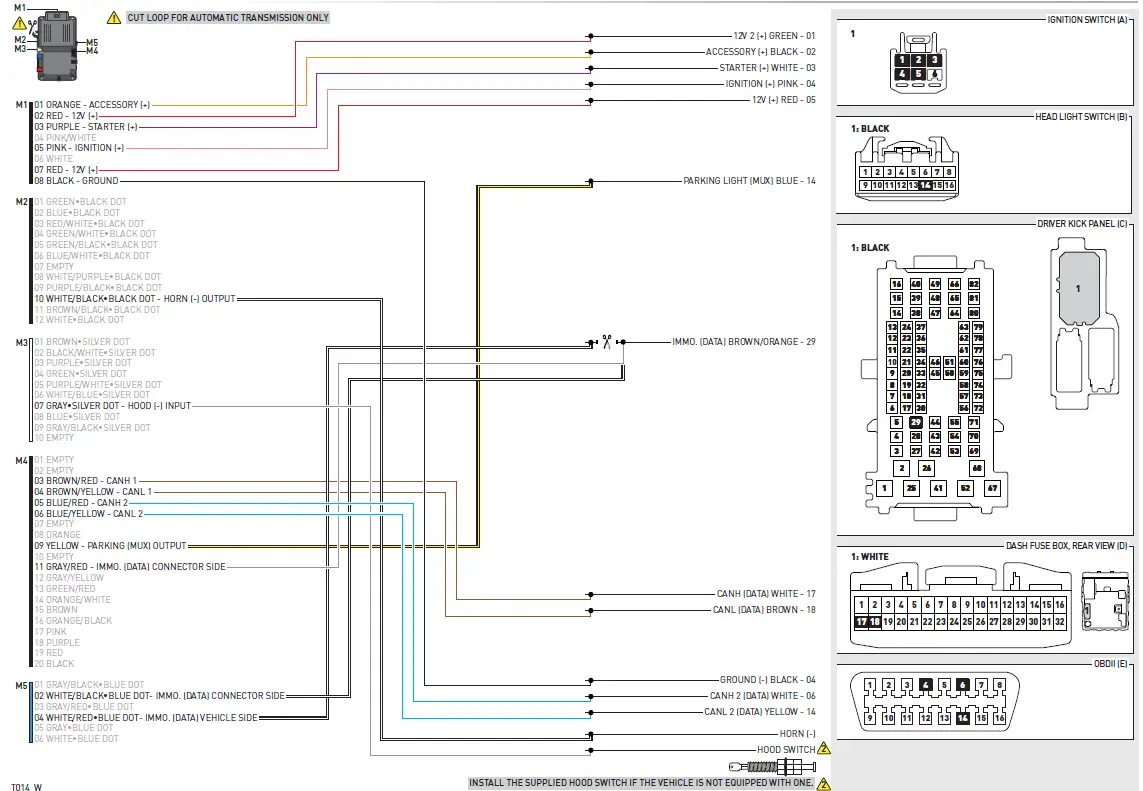

HARDWIRE / WIRING DIAGRAM

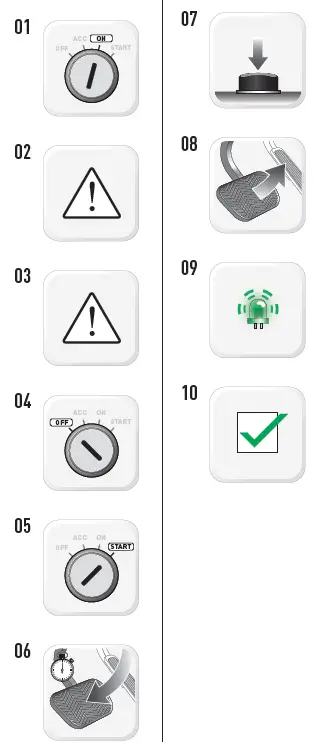

MODULE PROGRAMMING PROCEDURE
- Turn key to ON position.
- Wait, if LED 1 turns solid GREEN, proceed with step 4. If LED 1 flashes RED three times [3x], proceed with step 3.
- The vehicle’s immobilizer is NOT detected: For USDM vehicles without an immobilizer, press and release the module’s programming button. Wait until LED 1 turns solid GREEN then proceed with step 4. For CDM and USDM vehicles with an immobilizer, verify every wire connections and repeat the module programming procedure.
- Turn key to OFF position.
- START vehicle for 15 seconds.
- Press and hold the brake pedal.
- Press and release the module’s programming button.
- Release the brake pedal.
- Wait, LED 2 will flash GREEN.
- Module Programming Procedure completed.

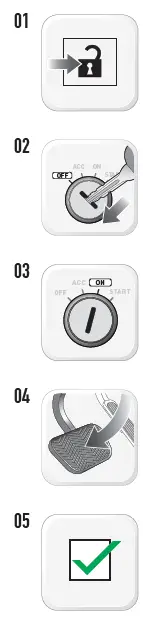

TAKEOVER PROCEDURE – STD KEY
All vehicle doors must be closed and locked prior to remote start sequence.
- Press unlock on aftermarket remote.
- Insert key into ignition.
- Turn key to ON position.
- Press and release BRAKE pedal.
- Take over procedure completed.
- Failure to follow procedure will result in vehicle engine shutdown.

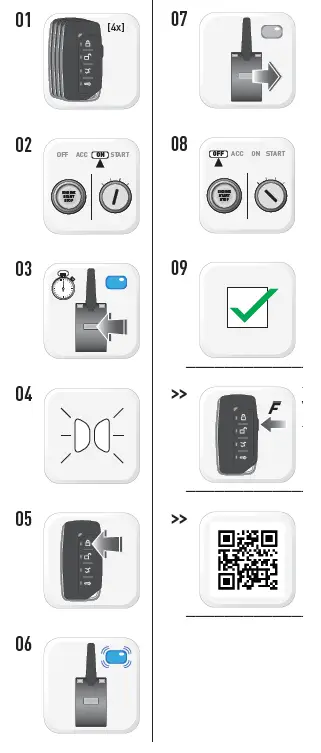

REMOTE PROGRAMMING PROCEDURE
- WARNING: Complete the module programming procedure and tach programming procedure before programming the remotes. A maximum of four [4x] remotes per system.
- Set ignition to ON position.
- Press and release the antenna button, then press and hold the antenna button. The antenna’s leds will turn solid BLUE.
- Parking Light will flash once [1x].
- Press once [1x] on the LOCK button of each remote.
- The antenna’s leds will flash BLUE once [1x] for each successful pairing.
- Release the antenna button. The antenna’s leds will turn OFF.
- Set ignition to OFF position.
- Remote Programming Procedure completed.
- To program an additional remote as second vehicle mode: Follow steps 1 to 4. Press twice [2x] on the “F” button then press once [1x] on the LOCK button of the remote. Follow steps 6 to 9.
- Please visit www.idataguides.com to see all of our remote user manuals
REMOTE STARTER ERROR CODES
| REMOTE STARTER ERROR CODES: NOTES | PARKING LIGHT FLASHES | DIAGNOSTIC |
| I WARNING: The following applies only when the parking lights are connected and supported by the system.
II After a remote starter failure, the parking lights will flash three [3x] times followed by the error code. See table. | 3 + 1 | Tach is not programmed OR engine is already running. |
| 3 + 2 | Key is in ignition ON position. | |
| 3 + 3 | Door is open. | |
| 3 + 4 | Trunk is open. | |
| 3 + 5 | Foot brake is ON. | |
| 3 + 6 | Hood is open. | |
| 3 + 7 | Loop is not cut. | |
| 3 + 8 | No tach detected. | |
| 3 + 9 | Vehicle movement detected (VSS). | |
| 3 + 10 | System is in Valet Mode. | |
| 3 + 11 | CAN communication failure | |
| 3 + 12 | RS not synchronized. Start vehicle with OEM key for 15 sec before trying a new RS sequence. | |
| 3 + 13 | Bypass problem. | |
| 3 + 14 | Idle mode or takeover is not available on this vehicle. | |
| 3 + 15 | Overheat protection. |
| REMOTE STARTER SHUTDOWN ERROR CODES: NOTES | PARKING LIGHT FLASHES | DIAGNOSTIC |
| I WARNING: The following applies only when the parking lights are connected and supported by the system.
II If the engine shuts down after a remote starter sequence use the query command from a compatible aftermarket remote to display the shutdown error code. The parking lights will flash four [4x] times followed by the error code. See table. | 4 + 1 | Engine tach signal was lost. |
| 4 + 2 | Emergency brake signal was lost. | |
| 4 + 3 | Foot brake ON detected. | |
| 4 + 4 | Hood open detected. | |
| 4 + 5 | Tach over rev detected. | |
| 4 + 6 | Glow plug timeout error. | |
| 4 + 7 | Vehicle movement detected (VSS). | |
| 4 + 8 | Check engine light ON. | |
| 4 + 9 | Low fuel level. | |
| 4 + 10 | Open door detected. | |
| 4 + 11 | CAN communication failure during RS sequence. | |
| 4 + 12 | RS not synchronized. Start vehicle with OEM key for 15 sec before trying a new RS sequence. | |
| 4 + 13 | Bypass problem. | |
| 4 + 14 | Idle mode or takeover is not available on this vehicle. | |
| 4 + 15 | Overheat protection. |

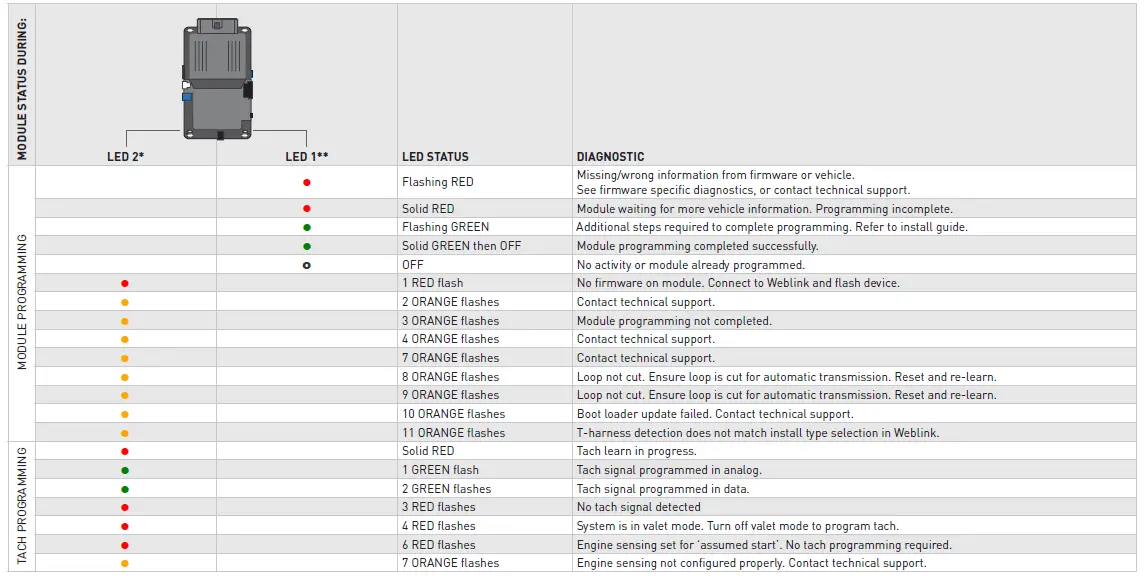

MODULE DIAGNOSTICS
LED 2 (RS) displays generic diagnostic codes specific to the remote start module. Orange LED flashes may appear red. ** LED 1 (Bypass) displays diagnostic codes specific to the firmware loaded on the module. Visit the programming diagnostics page for more information
2017 Hyundai Elantra STD key Automatic www.idatalink.com
