Ultecon Thermostat UT-M1
Order Code: FAN5856

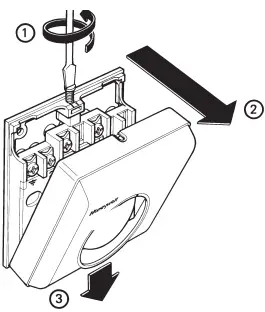

1. Cover Removal

   CAUTION: Isolate power supply and make safe before wiring the unit to prevent electric shock and equipment damage. Installation should be carried out by a competent person.

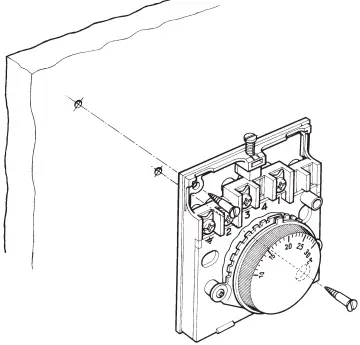

2. Surface Mounting

   Screws supplied

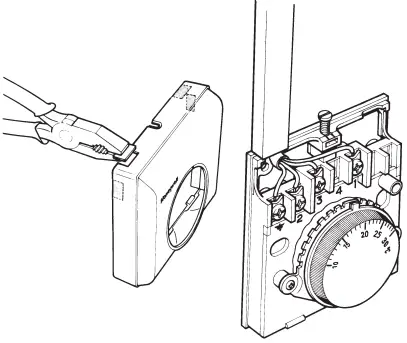

3. Surface Wiring

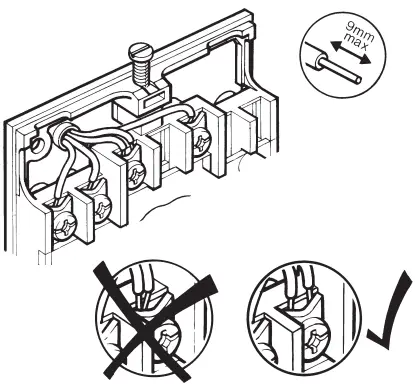

4. Wiring to Terminals

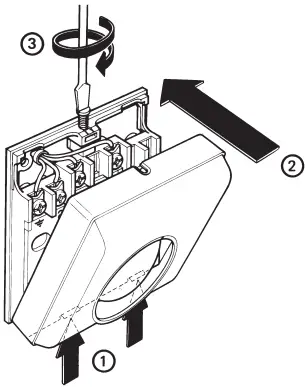

5. Completion


WIRING DIAGRAM

NOTE

• The thermostat requires 230V AC to operate.
• In order to correctly adjust the system to room temperature, install the thermostat as far from heat sources, draughts or particularly cold walls (thermal bridges) as possible.

CAUTION

• Before wiring the appliance be sure to turn off the mains power.
• The appliance must be wired to the electric mains through a switch capable of disconnecting voltage as per the current Australian safety standards.
• Installation and electrical wiring of this appliance must be made by a qualified technician and in compliance with the current standards.

IMPORTANT

• Isolate the mains supply before making any electrical connections.
• This system should be installed by a qualified electrician.
• Thermostat should only be installed by fixed wiring, a flexible cord should not be used.
• The appliance is not intended for use by young children or infirm persons without supervision.
• Young children should be supervised to ensure that they do not play with the appliance.

Distributed by: Ventair Pty Ltd
4 Capital Place, Carrum Downs, VIC, 3201, Australia
T: +61 3 9775 0556 | E: [email protected]
www.ventair.com.au

Specifications are subject to change without notice.
