OVER/PROOFER COMBINATION
PROJECT: _____________
ITEM NO: _____________
NOTES: _______________
MODEL NUMBER: QB-4/8 , QBT-4/8
Owner’s Manual

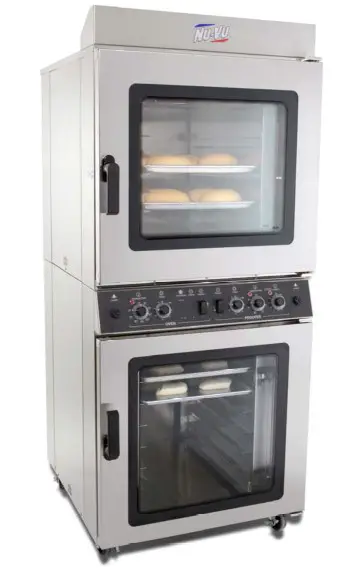

QB-4 Electric Convection Proofer Oven
Oven/Proofer, Electric, Oven (4) 18″ x 26″ or (8) 13″ x 18″ Pan Capacity, Proofer (8) 18″ x 26″ or (16) 13″ x 18″ Pan Capacity, Solid State Controls, Tempered Glass Field Reversible Oven Doors, Indicator Light for Thermostats, Autofill Proofer, V-Air Technology, Separate Heat & Humidity Controls for Proofer, 3″ Locking Casters, Stainless Steel Construcon, 5.13kW, cETLus, NSF
FEATURES
- Temperatures reaching 425°F (218°C)
- V‐Air Technology for Even Baking
- Autofill proofer
- QB Series
- Separate Times for Oven & Proofer
- Indicator Light for Thermostat
- QBT Series
- Intuive Touch Screen
- Innovave Proofer Design with Automist Technology
CONSTRUCTION
- Cool‐To‐Touch Doors
- Magnec Door Latches
- Heavy Duty Casters
- Overflow Drain & Pan
- Stainless Steel Construcon
- Le or Right Hinged
OPTIONS & ACCESSORIES
- QB Series
- Warmer in Proofer
- Two Speed Fan
- Wire Shelf
- Water Filter (recommended)
- QBT Series
- Water Filter (recommended)
- Wire Shelf
CLEARANCES
- 4” [All Sides of Unit]
WARRANTY
- One Year Labor & Two Year Parts
PICTURED WITH TOUCHSCREEN
| Model | Crated Weight | Overall Dimensions | Interior Dimensions | Pan Capacity (18”x26”) | Shelf Spacing | |||||||||
| Oven | Proofer | |||||||||||||
| W | D | H | W | 0 | H | W | D | H | Oven | Proofer | Oven | Proofer | ||
| QB-4/8 | 650 (295) | 32 1/4” (820) | 36 15/16” (939) | 77 3/4” (1975) | 18 1/4” (464) | 28 1/2” (724) | 18 1/4” (464 ) | 18 3/8” (467) | 28 5/8” (728) | 30 1/4” (769) | 4 | 8 | 4” (102) | 3 1/2” (89) |
| QBT-4/8 | 690 (313) | 32 1/4” (820) | 36 15/16” (939) | 77 3/4” (1975) | 18 1/4” (464) | 28 1/2” (724) | 18 1/4” (464 ) | 18 3/8” (467) | 28 5/8” (728) | 30 1/4” (769) | 4 | 8 | 4” (102) | 3 1/2” (89) |

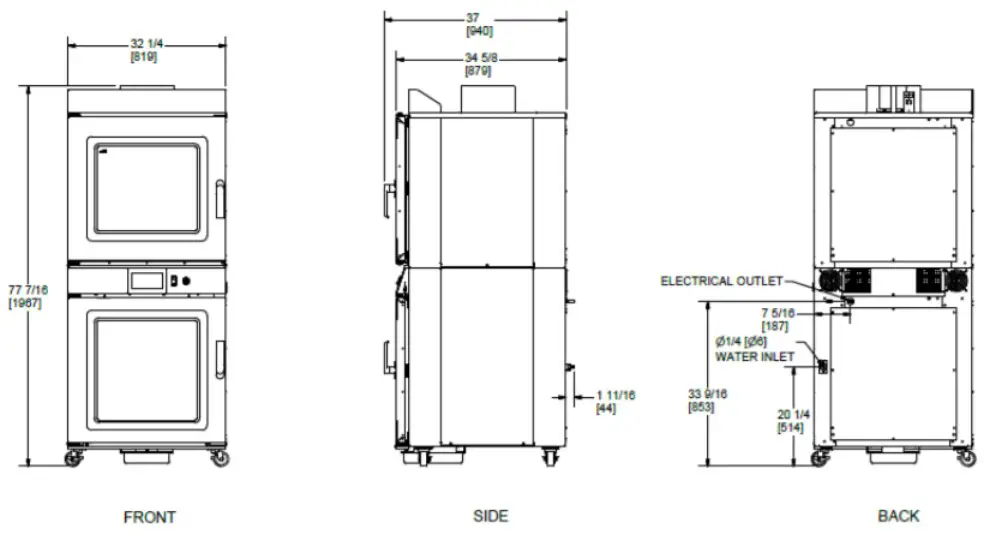

DRAWINGS
ELECTRICAL SYSTEM
| Model | Water Inlet | Electrical System *ground wire not included | ||||||
| Volts | Phases | Amps | kW | Wires* | Hz | NE MA | ||
| QB-4/8 | 1/4” (6) | 208 240 | 1/3 1/3 | 39/27 36/24 | 7.9 7.9 | 2/3 2/3 | 60 60 | |
| QBT-4/8 | 1/4” (6) | 208 240 | 1/3 1/3 | 39/27 36/24 | 7.9 7.9 | 2/3 2/3 | 60 60 | |
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
KCL & REVIT DRAWINGS UPON REQUEST
REVISION D | 1/9/23
Follow Us
NU-VU
5600 13th street, Menominee, MI 49858
906.863.4401 | 800.338.9886 |www.nu-vu.com
Innovative Food Service Equipment | NU-VU Baking | United States
