UCTRONICS Raspberry Pi Cluster Assembly
Package Contents

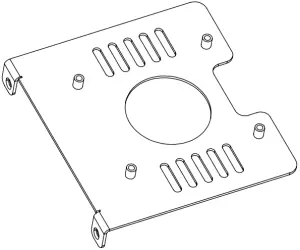

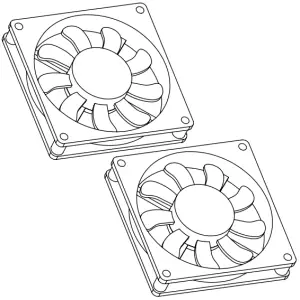

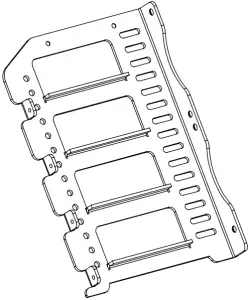

 8cmx8cm Fan x2 |  Side panel x2 |  Top panel x1c |  Raspberry Pi baseplate x4 |

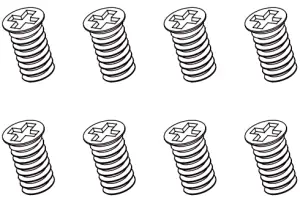

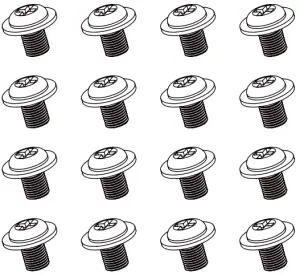

 Fan baffle x1 |  Countersunk screw for top panel and RPi baseplates (M2.5*4) x 12 |  Fan screw x8 |  Round head screw for RPi boards (M2.5*4) x 16 |

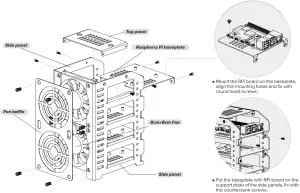

Exploded view
Assembly Steps

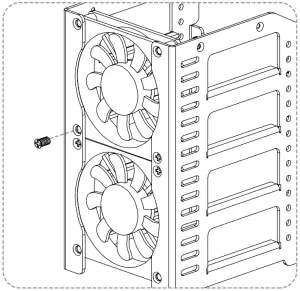

- Align the mounting holes of the fan with those on the side panels, and fix tightly with 4 fan screws in the middle position;

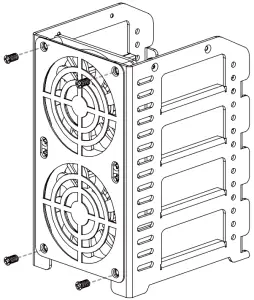

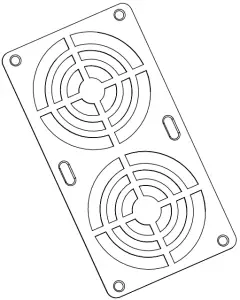

- Align the mounting holes of the fan baffle with those on the side panels, and fix the fan baffle with 4 screws in the four corners

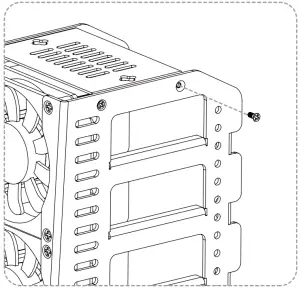

- Align the mounting holes of the top panel with those on the two side panels, and fix with countersunk screws;
- Insert the Raspberry Pi baseplate, and then fix it with M2.5 screws.

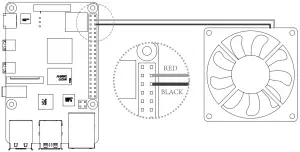

Wiring
Fan SPEC
| Operating Voltage | DCSV |
| Operating Current | 0.3A |
| Power Consumption | 1.sw |
| Speed | 2875±5%RPM |
| Size | 80’80’15mm |
| Weight | 44.2g |
