Dual phantom power adapter PP2B

Quick Start Guide
This quick start guide contains important information on the safe operation of the product. Read and follow the safety advice and instructions given. Retain the quick start guide for future reference. If you pass the product on to others please include this quick start guide.

Contents hide

1 Safety instructions

2 Operating

3 Technical specifications

4 Documents / Resources

4.1 References

5 Related Posts

Safety instructions

Intended use
This device serves as a source for phantom power for the operation of suitable microphones. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use.
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts from the product. They could swallow the pieces and choke! Never let children unattended use electrical devices.
Where to use the product
Never use the product

in conditions of extreme temperature or humidity
in extremely dusty or dirty areas
at locations where the unit can become wet

General handling

To prevent damage, never use force when handling the product.
Never immerse the product in water. Just wipe it with a clean dry cloth. Do not use liquid cleaners such as benzene, thinners, or flammable cleaning agents.
Disconnect the device from the mains power supply when it is not in use.

Operating

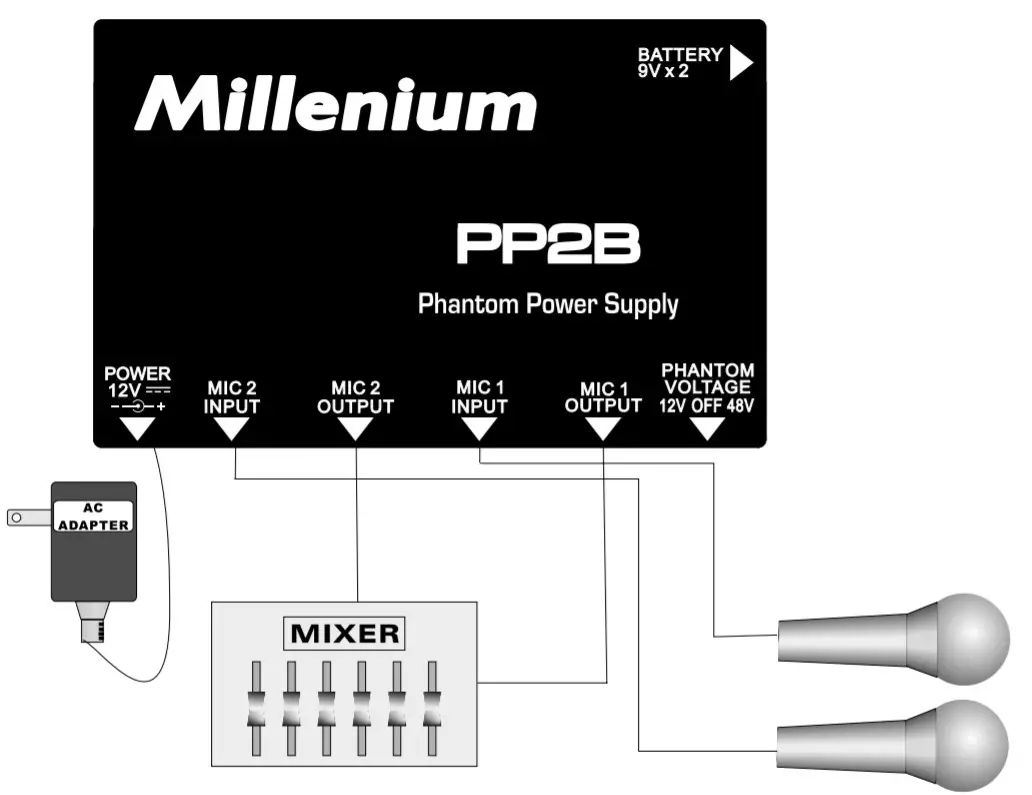

Connect up to two microphones requiring phantom power for the operation to the inputs [MIC 1] and [MIC 2].
Select the appropriate voltage, [12 V] or [48 V], for the connected microphones with the ‘Phantom Voltage’ switch.
Use the enclosed plug-in mains adapter to power the device or insert 2 × 9 V batteries into the battery compartment for the power supply.
Connect the device that is to process the microphone signals to the outputs [MIC 1] and [MIC 2].
Since the device contains no preamps, no signal amplification takes place.

Technical specifications

Phantom power	12 V or 48 V switchable
Inputs	2 × XLR panel socket
Outputs	2 × XLR panel plug
Switch	12 V / 48 V switchable
Power supply	External power adapter, 100 – 240 V ~ 50/60 Hz or 2 × 9 V battery
Operating voltage	12 V / 150 mA, centre negative
Dimensions (W × H × D)	143 mm × 93 mm × 45 mm
Weight	485 g
Ambient conditions	temperature range 0 °C…40 °C relative humidity 20 %…80 % (non-condensing)

For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. Please follow the notes and markings on the packaging.
Batteries must not be disposed of as domestic waste or thrown into the fire. Dispose of batteries according to national or local regulations regarding hazardous waste. Dispose of empty batteries at appropriate collection sites.
This product is subject to the European Waste Electrical and Electronic Equipment
Directive (WEEE) in its currently valid version. Do not dispose of your old device with your normal household waste. Dispose of this product through an approved waste disposal firm or through your local waste facility. Comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility.
