RWS1OCA/RWS12CA
WIRING GUIDE

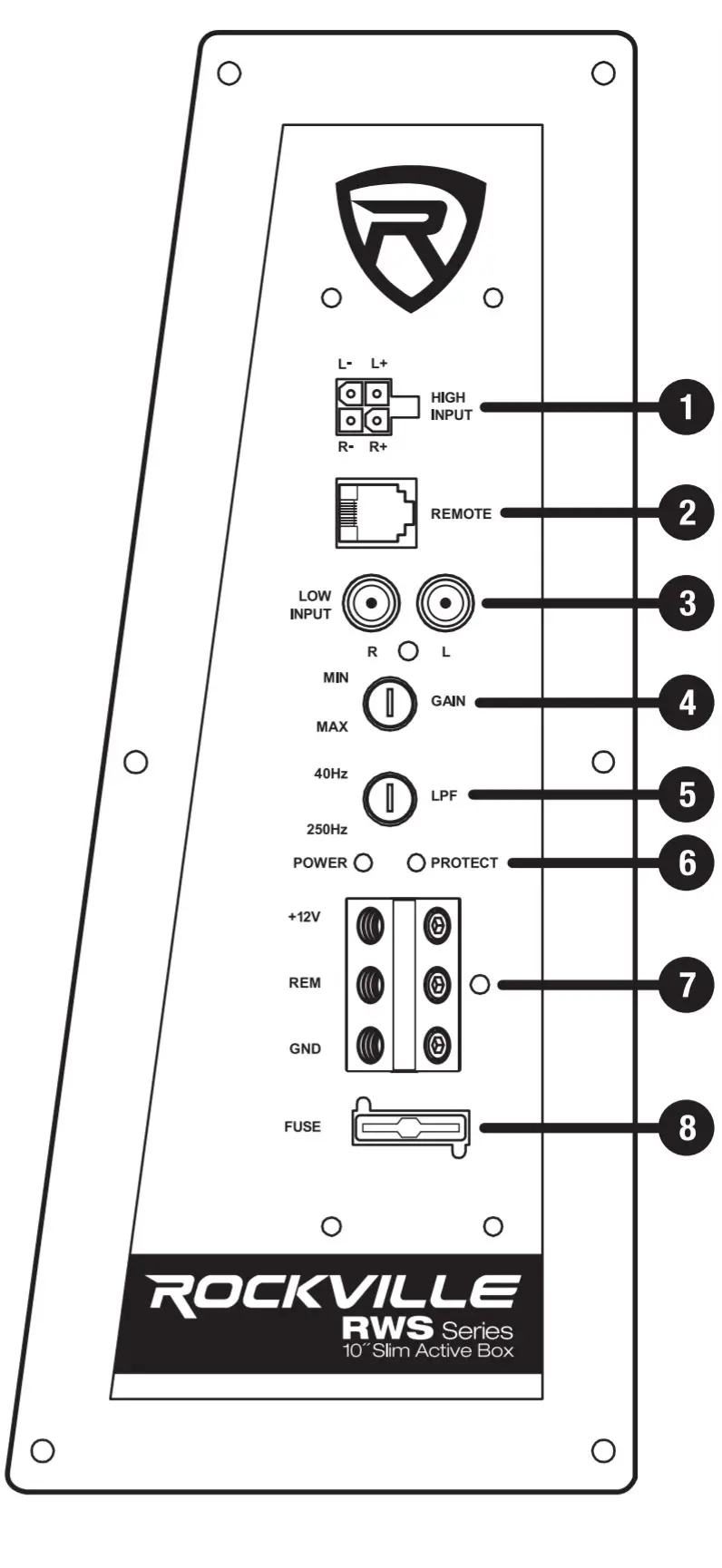

FEATURES
- High-Level Input
High-Level inputs also referred to as speaker-level inputs, allow you to connect to the factory speaker sos. They are called High-Level inputs Wane they convert the high voltage running through factory speaker wires to one the smellier can handle. These inputs wit provide the end-user with clear well-defined sound fa opting for musical enjoyment. - Bass Remote:
Connect dash-mounted bass remote (included) via Rill cede (included). - RCA Input
Connect to your head hurts RCA outputs. - Gain control:
The gain control regulates the %ohne input to the pre-amp stage. - Low Pass Crossover control:
Adjust Levi Pass frequency from 40Hz – SSC& - Power/Protect LED ideates
- Power connections
See the Wiring diagram for proper setup. - Fuse
HIGH-LEVEL INPUT
WARNING: Use either High-Level inputs or RCA inputs. NEVER USE BOTH!WARNING: Do not use Remote Turn-on (REM) when using High-Level inputs.

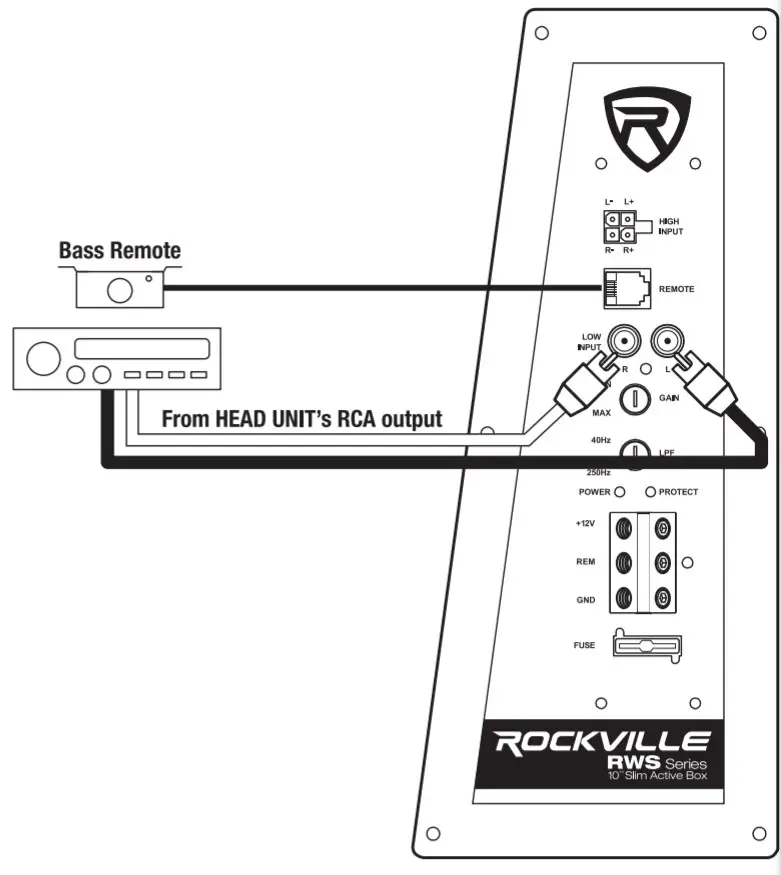

WIRING | RCA INPUT/BASS REMOTE |

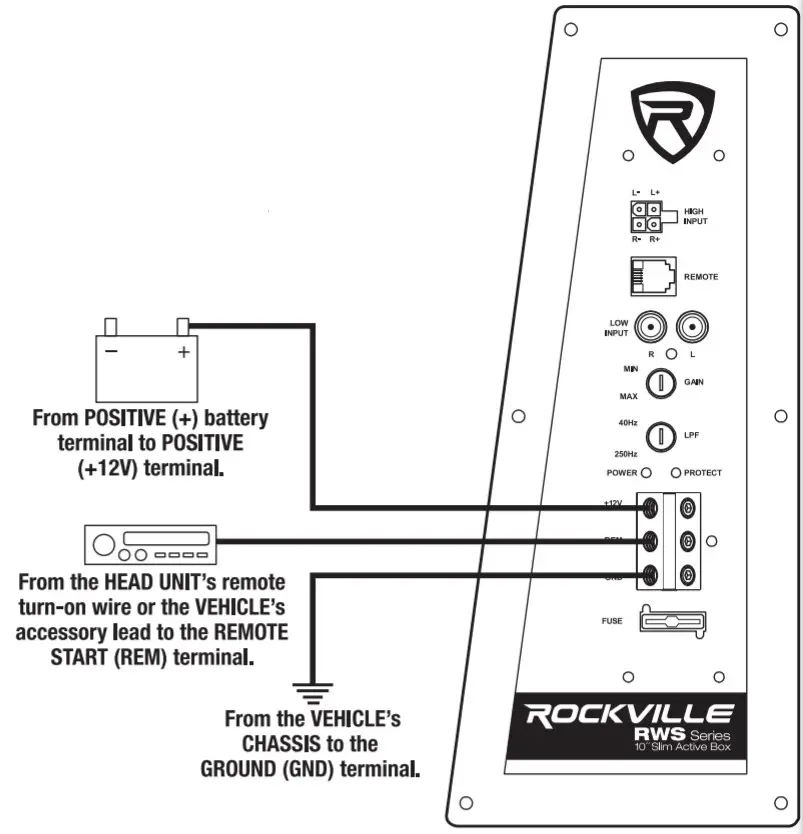

| ATTENTION: The ground wire should be 8 gauge or heavier Ensure that there is no paint or other insulator at the point of contact on the chassis.WARNING: Do not use Remote Turn-on (REM) when using High-Level inputs. | ATTENTION: II your Head Unit has an RCA subwoofer output, use a single RCA to dual RCA cable.WARNING: Use either High-Level inputs or RCA inputs. NEVER USE BOW |
 |  |
https://vimeo.com/showcase/7766999
Go to vimeo.comishowcaseM66999 or scan the QR code and watch a short video, which shows you how to set this item up and how to use it.
