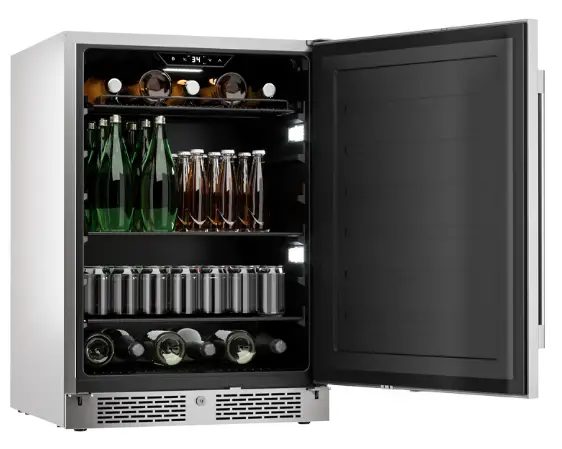

ZEPHYR PRB24C01AS-OD Presrv Outdoor Single Zone Beverage Cooler
OVERVIEW
| Ref # | Part # | Description | Qty. |
| 1 | 56300003 | Dryer Filter | 1 |
| 2 | 11030137 | Power Cord | 1 |
| 3 | 56220035 | Anti Vibration Gasket | 1 |
| 4 | 56130035 | Drip Tray | 1 |
| 5 | 12160006 | Compressor | 1 |
| 6 | 11030119 | Compressor Ground Wire | 1 |
| 7 | 50330010 | Sealing Tube | 1 |
| 8 | 56200105 | Main PCB Box | 1 |
| 9 | 11010119 | Main Power Control Board | 1 |
| 10 | 11010110 | Display Control Board | 1 |
| 12 | 56210093 | Decorative Hole Cover | 3 |
| 13 | 54180032 | Upper Right Hinge | 1 |
| 14 | 54240001 | Evaporator | 1 |
| 15 | 11050007 | Sensor | 1 |
| 16 | 56180015 | Evaporator Foam | 1 |
| 17 | 12130032 | Fan | 1 |
| 18 | 54170017 | Air Duct Board | 1 |
| 19 | 54210017 | Fan Cover | 1 |
| 20 | 12010012 | LED Light Board | 5 |
| 21 | 52150014 | LED Light Cover | 5 |
| 22 | 56200110 | Electrical Box | 1 |
| 23 | 52050023 | Display Panel | 1 |
| 24 | 54190062 | Door Axis Plate | 1 |
| 25 | 54220014 | Door Magnet | 1 |
| 26 | 50180005 | Door Lock Plate (SN10-11) | 1 |
| 26 | 54050089 | Door Lock Plate (SN12+) | 1 |
| 27 | 50230014 | Door (SN10-11) | 1 |
| 27 | 50230030 | Door (SN12+) | 1 |
| 27-1 | 56220047 | Door Gasket | 1 |
| 27-2 | 50280008 | Door Handle | 1 |
| 28 | 50150025 | Glass Shelf | 1 |
| 29 | 50150033 | Sliding Wire Shelf Assembly | 1 |
| 30 | 50320040 | Shelf Slider Set | 1 |
| 31 | 54210014 | Sensor Cover | 1 |
| 32 | 11050008 | Sensor | 1 |
| 33 | Z0F-C004 | Charcoal Filter | 1 |
| 34 | 50260012 | Kick Plate (SN10-11) | 1 |
| 34 | 50260018 | Kick Plate (SN12+) | 1 |
| 35 | 11040032 | Magnetic Switch | 1 |
| 36 | 50180006 | Door Lock | 1 |
| 36-1 | 15000019 | Door Lock Key | 1 |
| 37 | 54180033 | Lower Right Hinge | 1 |
| 38 | 50350008 | Leveling Leg | 4 |
| 39 | 54140284 | Cabinet Support Bracket | 1 |
| 40 | 54180034 | Lower Left Hinge | 1 |
| 41 | 54140289 | Cabinet Bracket | 2 |
| 42 | 54270001 | Condensor | 1 |
| 43 | 54210015 | Condensor Cover | 1 |
| 44 | 50330011 | Capillary Tube | 1 |
| 45 | 12130032 | Fan | 1 |
| 46 | 54210016 | Fan Cover | 1 |
| 47 | 54190058 | Compressor Support Plate | 1 |
| 48 | 50330020 | Connecting Pipe | 1 |
| 49 | 50330026 | Exhaust Water Pipe | 1 |
| 50 | 56210094 | Compressor Cover | 1 |
| 51 | 54180035 | Upper Left Hinge | 1 |
| 52 | 52050024 | Zephyr Metal Logo | 1 |
| 53 | 81010012 | Logo Position Template | 1 |
| 54 | 54140314 | Door Stopper | 1 |
| JAN23.0501 | |||
