Roadefend Ai-5-e Intelligent Driving Assist System User Manual

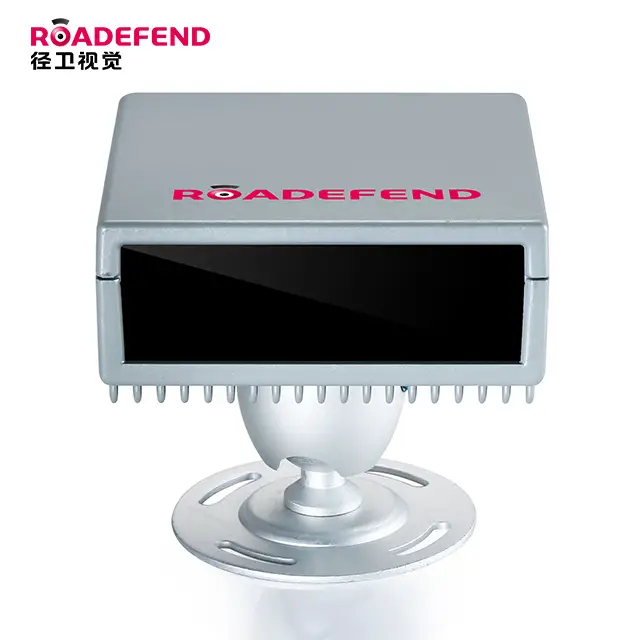

ROADEFEND AI-5-E Intelligent Driving Assist System

Safety Instructions

If you find some inconsistencyin this manual during use, please consult the technical support department. The content will be updated over time to time without notice.
Installation Precautions
In order to ensure the normal operation of the equipment, to extend its service life, please ensure that it meets the specifications during installation.

• The device should be installed horizontally, as far as possible from locations with high vibrations, where there is no interference from other electronic equipment, the ventilation is good, there is no shielding, covering, the machine and its accessories and peripherals should be installed in a position that is not easily accessible to passengers and drivers
• Please pay attention to waterproof, moisture and lightning protection when installing the equipment;
• Remember not to touch the power supply and the device with wet hands; do not spill liquid on the device to avoid short circuit or fire inside the machine;
• This machine is compatible with 12V and 24V power supply, please pay attention to the positive and negative poles when wiring to avoid short circuit;\
• When connecting other external devices, please turn off the power of this machine. Do not plug and unplug while powered on;
• It is strictly forbidden to move the machine or replace components with electricity, otherwise it will damage the equipment;
• Do not place other equipment directly on thisproduct upper part
• Non-professionals are not allowed to disassemble the case by themselves to avoid damage and electric shock;

Product description

The product is a full HD vehicles driving recorder with intelligent analysis systemintegrated, supporting the following functions:Driver status monitoring and warning (DMS), forward collision warning (forward ADAS), blind zone detection and warning (BSD), hands off the steering wheel (HOD), overcrowded aisle detection (OCD),support for GPS positioning, 4G network communication module, multi-channel video surveillance etc., can improve the driving safety of the driver. It is equipped with a multi-channel AI analysis performance system, that allows it to be flexible and expand through softwarethe stability,compatibility, maintainability and performance of the OS throughout its lifetime.

Product features

• Full-featured active safety integrated machine
• GPS positioning
• Built-in LCD display and printer
• Maximum support8 channels 1080P HD audio and video input
• Professional and powerful AI chip
• 4-core A53 processor, 1.2TOPS NPU,Native SATAinterface, 64-bit DDR4
• It can also support DMS, ADAS, BSD, HOD, OCD and other algorithms, and has further algorithm scalability
• Simple and stable hardware design
• GPS optimized design, minimize circuit interference
• Damping support structure for hard disk storage, vehicle shaking resistance and adapt to various road conditions
• Professional and reliable system solutions
• Built-in EMMC, support loop recording, dual backup for emergency recording
• Built-in battery and optimized power supply design, guaranteed at the moment of external power failure
• Roadefend dedicated video file system, ensure the confidentiality and security of video data
• Professional and reliable active safety
• Support DMS, ADAS, BSD, HOD, OCD
• Deep learning technology: accurate target recognition and fast iteration update
• Support the latest neural network in the industry

Appearance description

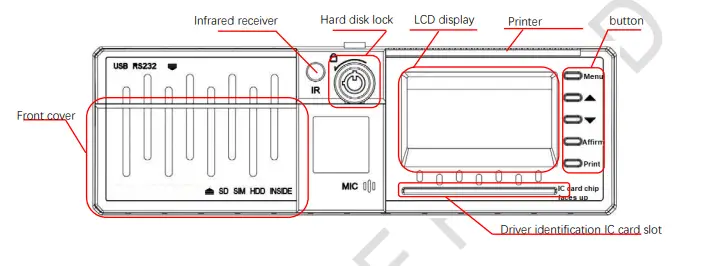

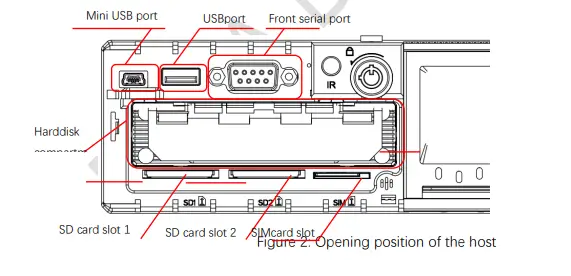

Host view

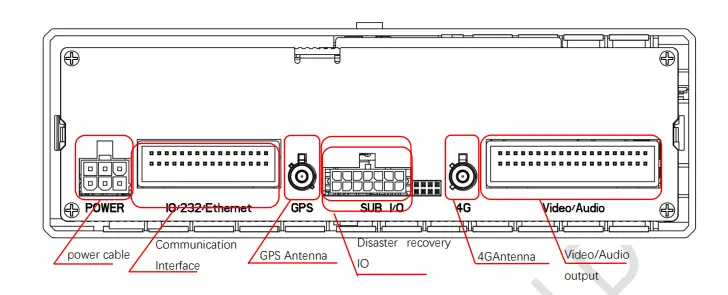

Rearview of the host

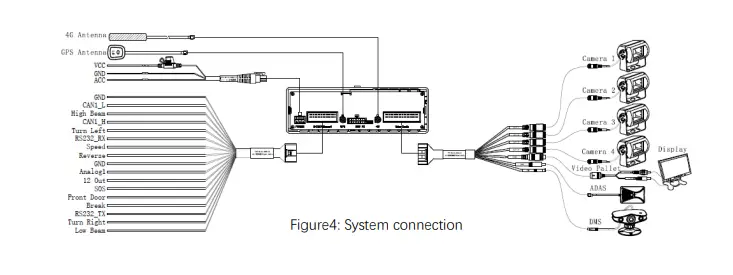

System connection diagram

Note: The solution is flexible and can be customized according to customer needs.

One, Product configuration list

ProductBoxChecklist

Product accessories

Option list

Configuration reference
The product configuration is flexible. The following simplified configurations are for reference only. For details, please contact sales or technical support.

Equipment harness

A variety of functions combination selection. For details, please contact sales or technical support.

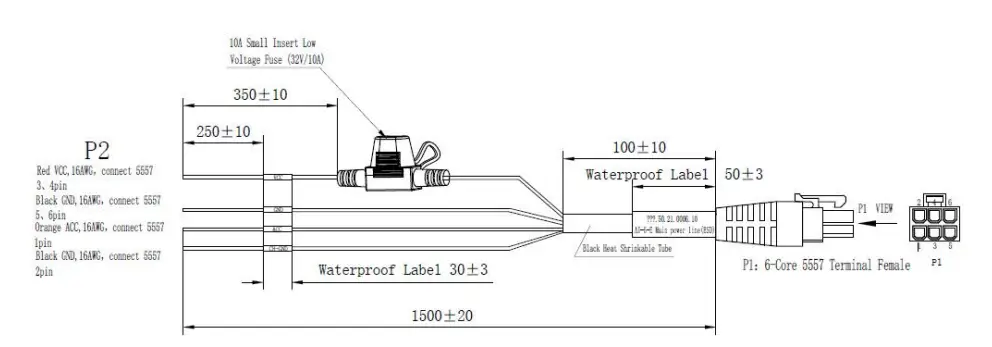

 Power harness
For products power and ignition signal access

Communication harness

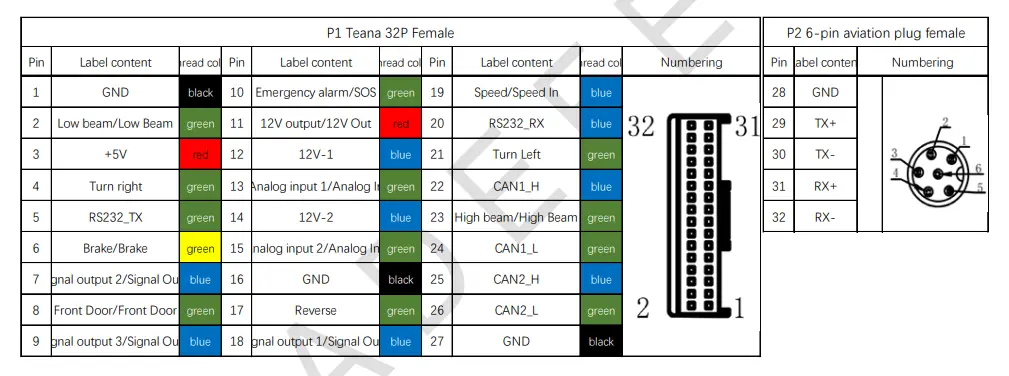

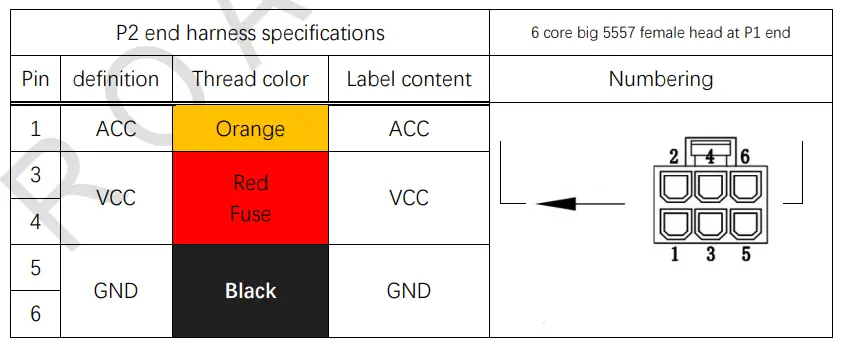

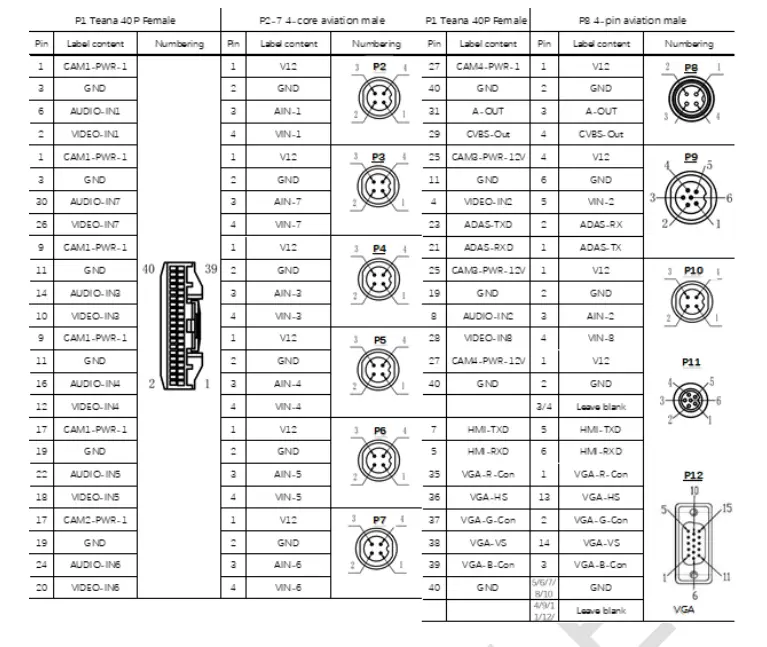

Used to connect car body hardware cable signals, such as brakes,left/right turn signal,far/Low beam lights, CANCommunication. Detailed reference harness definition below

Audio and video wiring harness

Three, Product function overview

Remote control introduction
This product can be optionally equipped with CVBS screen, and use the remote control to change various settings of the device.

 Features

Other main functions

Four, Product specification

Five, User notice

1. This product is a fullHDVehicle-mounted intelligent analysis system and can help enterprises manage fleet inreal-time and understand the running state of the vehicle.
2. Drivers can use this product to reduce the possibility of traffic accidents caused by manual driving, but they cannot replace safe driving.
3. Installation and calibration will affect the identification and response of the system. The installation and calibration must be carried out by a dealer or professional installer authorized by our company during installation.
4. Road and weather conditions will affect ADAS, the recognition and response of the BSD function have an impact. In the case of unclear road markings and bad weather, the system recognition accuracy will decrease.
5. This product is designed to improve driving safety and reduce the incidence of accidents. During use, you must ensure that the camera has a clear field of view and avoid damage to the equipment.

FCC Statement

Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator& your body.
