Z Rail Kits and CHB
Instruction Manual

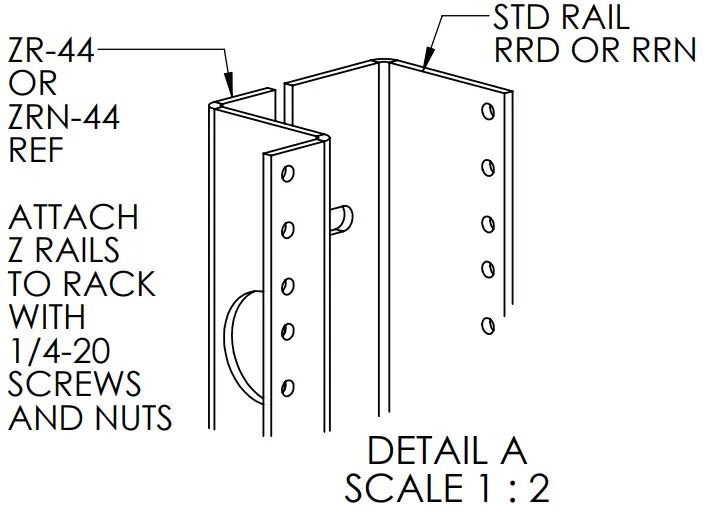

Z RAIL KIT CONTENTS:
- (2) RAILS
- (8) 1/4-20 X 5/8″ SCREWS
- (8) 1/4-20 SLIDE NUTS
CHB (CHASSIS SUPPORT BRACKET) KITS CONTAIN (2) BRACKETS:
TO INSTALL:
- ADJUST Z RAILS FORE AND AFT TO ATTACH CHEB

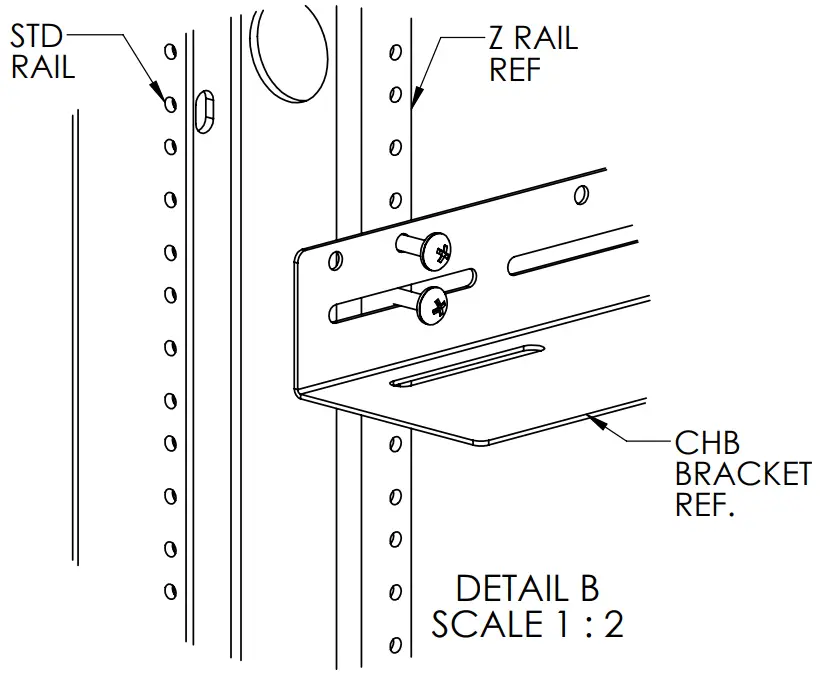

- SECURE CHB TO “Z” RAIL WITH 10-32 RACK SCREWS AS SHOWN ON EACH SIDE OF THE RACK.
NOTE: INSTALLATION OF THE 2 CHB BRACKETS TO CREATE A SUPPORT SHELF REQUIRES (2) Z RAIL KITS TO BE INSTALLED IN THE RACK

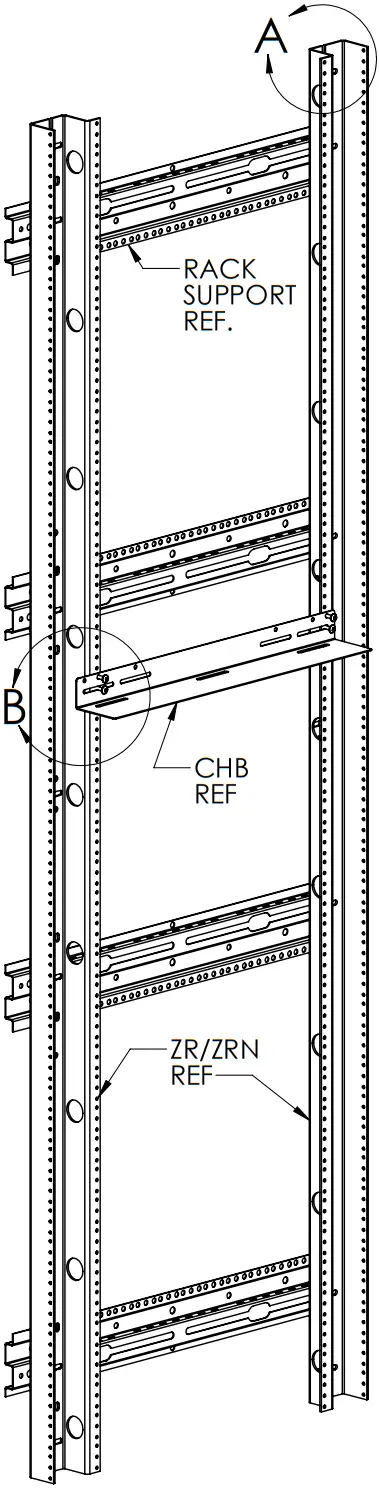

FRONT OF RACK REF
P/N 24166
