LongLife Door/Window Sensor
Connect+ ™ Encrypted (DWS-LL)

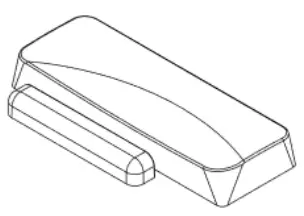

DWS-LL LongLife Door-Window Sensor
LongLife Door/Window Sensor is a transmitter with a ten year battery life. Typically used to sense opening and closings of doors and windows, it will alarm when the magnet is pulled away from the sensor.
Features
- Ten year battery life
- Quick peel and press mounting
- Secure encrypted wireless transmissions
Enroll by placing the panel into wireless enrollment mode and then sending an enrollment signal from the sensor. Alternatively, the sensor can be enrolled by entering its
8-character serial number in the AlulaConnect™ portal.
Options for sending an Enrollment Signal
- Remove the battery tab, which can be done without removing the cover, OR

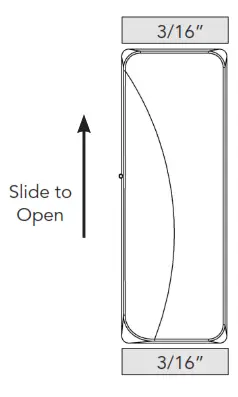

- Remove the cover to trip the tamper Note: Slide the cover to open and close

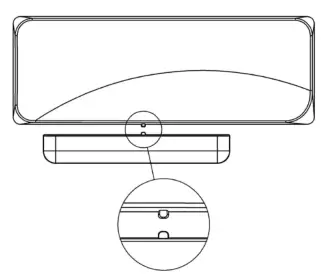

Install by removing the adhesive paper and adhering the sensor and magnet on a door or window. Leave a minimum of 3/16 inch clearance around the ends of the sensor to allow the cover to open. Make sure to align the alignment marks on the sensor and magnet when mounting.
3M VHB Tape works great if the surface is properly prepared and firm pressure is applied for over 10 seconds.
Surface Preparation
- Clean the surface
- Ensure the mounting surface temperature is above 50°F
Use the panel installation guide to verify proper system setup.
Specifications
| Physical | |
| Housing Dimensions | 2.90 x 1.04 x 0.39 inches (7.4 x 2.6 x 1.0 cm) |
| Weight with Battery | 0.79 ounces (22.5 grams) |
| Mounting Fastener | 3M VHB Tape |
| Environmental | |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Maximum Humidity | 85% non-condensing relative humidity |
| Sensor Specifications | |
| Frequency | 433.92 MHz |
| Replacement Battery | One Panasonic CR2032 |
| Nominal Battery Life | 10 years |
| Battery Voltage | 3.0 VDC (Nominal) |
| Current Draw | 20 mA (Maximum), 0.5uA (Quiescent) |
| Transmitted Indications | Cover Tamper, Low Battery, Supervision |
| Magnet Gap Distance | 0.75 inches maximum (1.9 cm) |
| Certifications | |
| DWS-LL | FCC, IC |
Specifications subject to change without notice
TRADEMARKS
Alula, Connect+, and AlulaConnect are trademarks owned by Alula Holdings, LLC. All trademarks, logos and brand names are the property of their respective owners. All company, product and service names used in this document are for identification purposes only. Use of these names, trademarks and brands does not imply endorsement.
FCC NOTICE
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference that may be received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by Alula could void the user’s authority to operate this equipment.
FCC ID: U5X-DWSLL
IC NOTICE
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
47-00016 Rev B
2022-08-17
Tech Support Line
(888) 88-ALULA (888) 882-5852
alula.com
