CS 7102-1 FL
SmartLine element with two burners
Instruction Manual

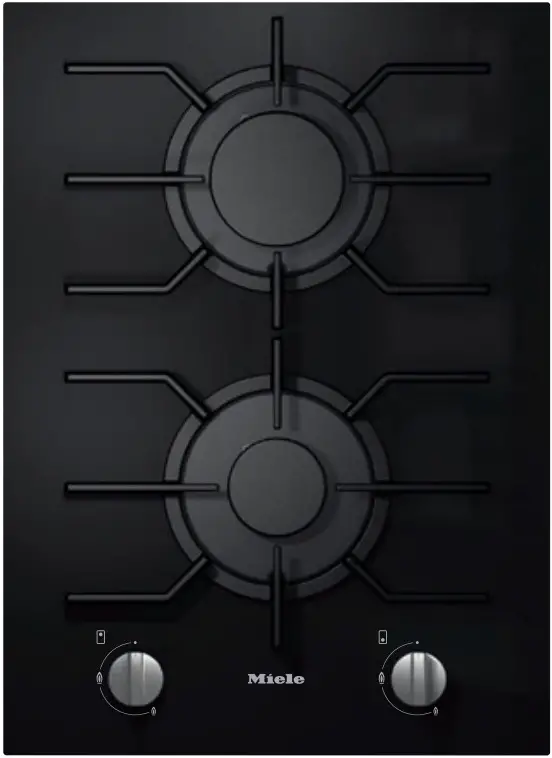

CS 7102-1 FL Smartline Element With Two Burners
- Simple controls -single-handed operation via rotary dial control
- Elegant design – for flush or raised installation
- Seamlessly integrates with any SmartLine element
- Particularly versatile – 1 medium burner and 1 large burner
- Easy cleaning – dishwasher-safe ComfortClean pot rests
| Heating type | |
| Heating type | Gas |
| Construction type | |
| SmartLine | • |
| Design | |
| Elegant glass ceramic surface | • |
| Flush | • |
| Ceramic surface colour | Black |
| Surface-mounted installation | • |
| Cooking zone details | |
| Number of cooking zones | 2 |
| 1st cooking zone/cooking area | |
| Position | front centre |
| Type | Standard burner |
| Max. rating in W | 1700 |
| 2nd cooking zone/cooking area | |
| Position | rear centre |
| Type | High-speed burner |
| Max. rating in W | 2700 |
| User convenience | |
| Operation via sensor controls | Knob |
| Operation via knobs | • |
| Electronic ignition with single-hand operation | • |
| Cleaning convenience | |
| Easy to clean ceramic glass | • |
| Dishwasher-proof pot rests | • |
| Safety | |
| GasStop | • |
Technical data
| Dimensions in mm (width) | 378 |
| Dimensions in mm (height) | 92 |
| Casing height incl. connection box in mm | 92 |
| Dimensions in mm (depth) | 520 |
| Cutout dimensions in mm (width) with surface-mounted installation | 358 |
| Cutout dimensions in mm (depth) with surface-mounted installation | 500 |
| Internal cutout dimensions in mm (depth) with flush installation | 500 |
| Weight in kg | 7 |
| External cutout dimensions in mm (width) with flush installation | 382 |
| External cutout dimensions in mm (depth) with flush installation | 524 |
| Total rated load in kW | 4.4 |
| Internal cutout dimensions in mm (width) with flush installation | 358 |
| Length of supply lead in m | 1.4 |
| Voltage in V | 230 |
| Frequency in Hz | 50-60 |
Accessories supplied
| CSFG 7000 FlameGuard | • |
| Number of mains cables with plug | Yes |
| Jets for natural gas | • |
| Jets for liquid gas | • |

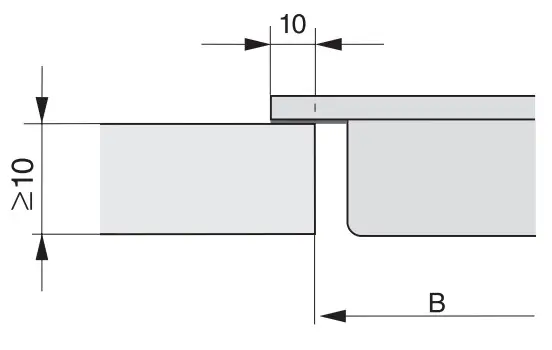

CS 7102 FL, flush (installation drawing)
- Front, 2) Mains connection box with mains connection cable, L = 2000 mm, 3) Stepped cut-out, 4) Wooden frame 12 mm (supplied loose), 5) Gas connection 1/2 – ISO 7-1 (DIN EN 10226)

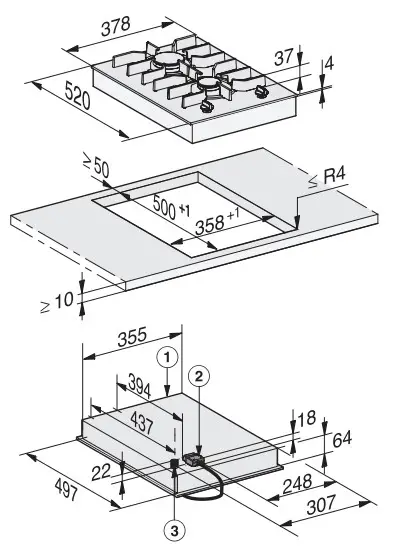

CS 7102 FL, (installation drawing)
- Front, 2) Mains connection box with mains connection cable, L = 2000 mm, 3) Gas connection 1/2 – ISO 7-1 (DIN EN 10226)
CS 7000 FL (Installation drawing)
CS 7000 FL, flush (Installation drawing)
*7+0,5 = CS7611 (Wok)
EAN: 4002516306252
Material number: 11402730
Old Material Number: 27710251GB
