670-2778S SGMS Micro Air Injector
User Manual
670-2778S SGMS Micro Air Injector
SGMS Micro Air Injector
Waterway’s new SGMS Micro Air Injector is designed for lower cost and ease of installation. Its low profile design is esthetically pleasing and allows the air injector to be positioned in places without a niche.
Features:
- Micro sized
- Installs using SGMS technology
- Easy to plumb using 3/8″ tubing
- Multiple body options
- LED versions optional

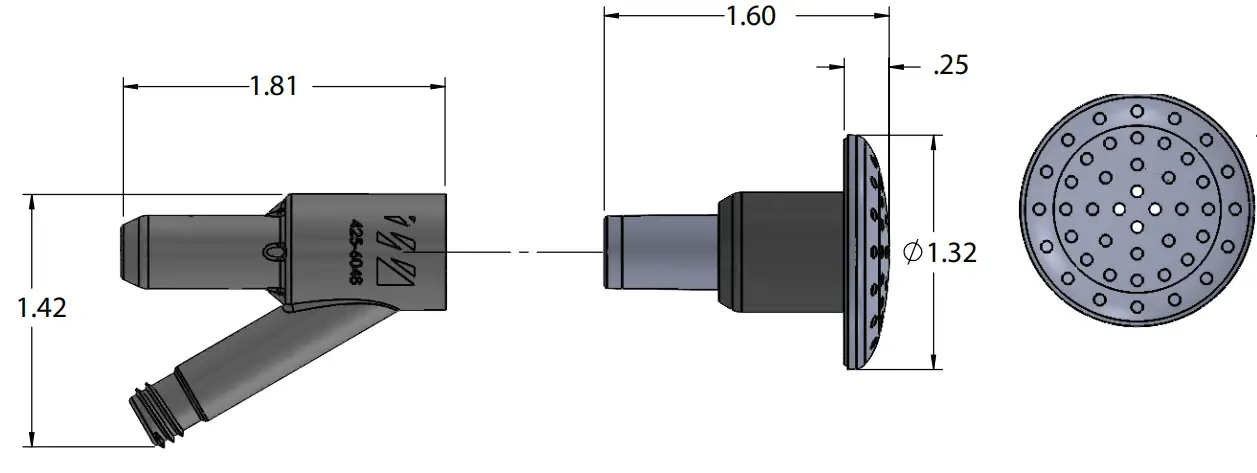

Specifications:
- 1 5/16″ diameter
- (44) 1/16″ diameter holes
- 0.133” sq. in. total open hole area
- Uses a 43/64″ diameter hole saw
- 316 stainless steel
- EPDM grommets
Mounting Made Easy

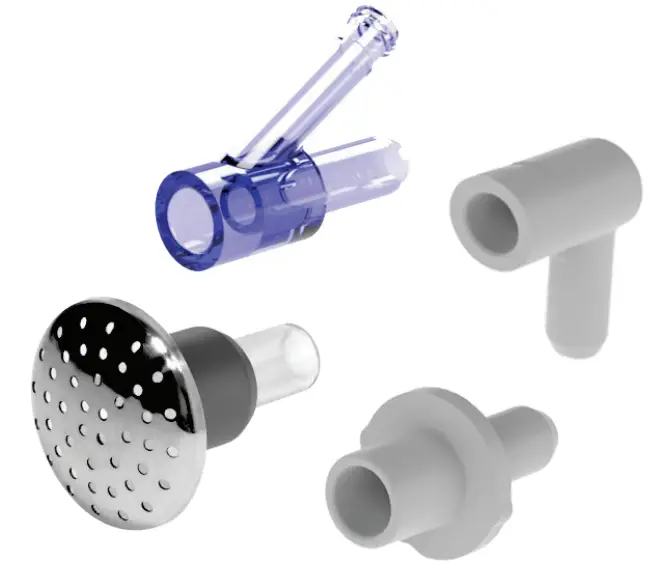

| Part # | Description |
| 670-2778S | SGMS Micro Air Injector |
| 425-4030 | 3/8″ SB Straight Adaptor |
| 425-6048 | 1″ Micro Water Feature Wye 30° LED Probe |
| 425-6000 | 3/8″ SB Micro 90° Ell Adaptor |
Scan QR Code for more info
https://www.waterwayplastics.com/wp-content/uploads/000302.0322_SGMS_Suction%20Load%20Washer_Brochure_print_lowres.pdf
www.waterwayplastics.com
807-0344.0422
Designed, Engineered &
Manufactured in the USA.
